Wayne Jones WJBPII - Silver

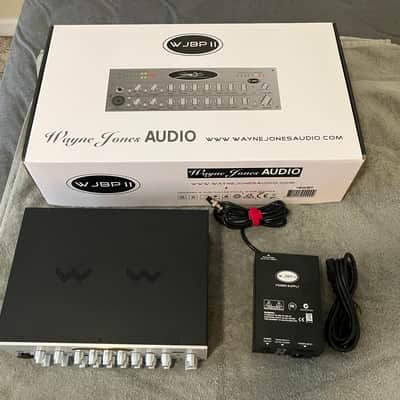

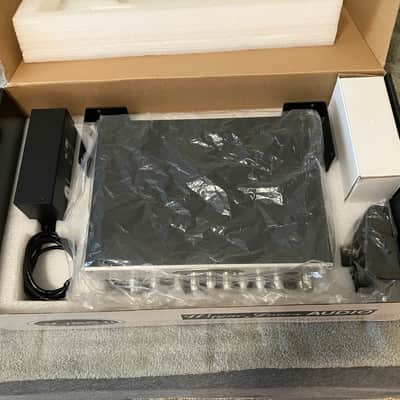

WJBPII in excellent condition. Includes power supply, footswitch, rack ears and original box

Free shipping to CONUS only

FEATURES:

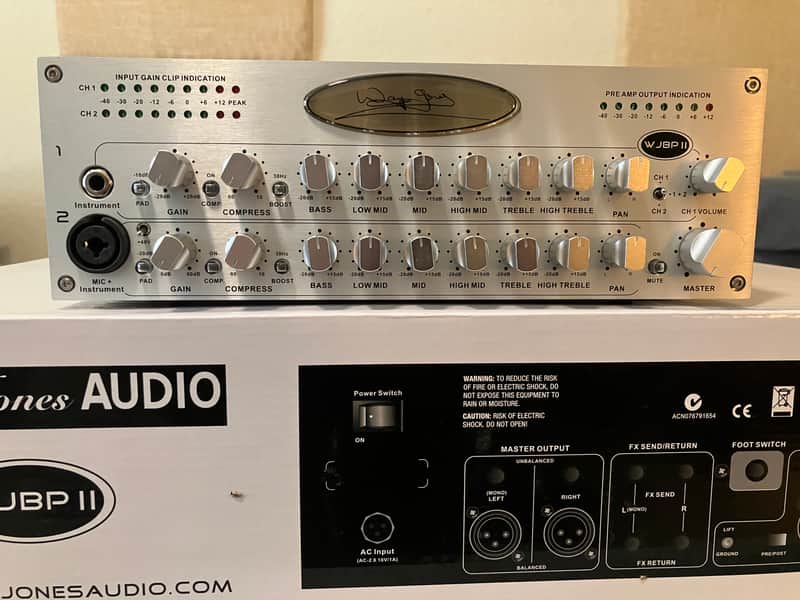

FRONT PANEL

• 2 Independent channels that also can be used together
  Channel 1 – 1/4” stereo/mono input
  Channel 2 – Has the option of phantom power or just use it as a second channel
  2 XLR balanced inputs
• 2 Input gain level controls with -10dB pad & Input clip Indicators for both channels
• Optical compressor with level
• 6 band EQ plus 30hZ boost
• EQ Band frequencies:
  Band 1 20-300Hz, Centre set at 80Hz
  Band 2 60-1KHz, Centre set at 160 Hz
  Band 3 150-2.5KHz, Centre set at 500Hz
  Band 4 450-8KHz, Centre set at 1.6KHz
  Band 5 1KHz-20KHz Centre set at 5KHz
  Band 6 Centre set at 10KHz
• Stereo pan control (for use when using 1 or 2 outputs to 1 or 2 WJ 1000 Watt Powered 2×10 cabs)
• Channel selector Independent volume control of both channels
• Master Stage volume Pre amp Output Indicator

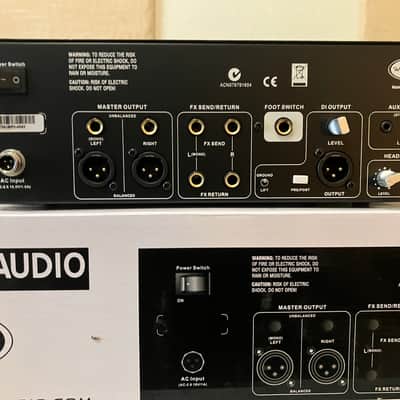

REAR PANEL

• Outside power supply to ensure studio quality noiseless operation, switchable 115/230V
• Output – Stereo XLR balanced outputs out with Level Control, pre or post EQ button & 1/4” unbalanced. Works in conjunction with the pan control
• Stereo/Mono FX loop
• Foot switch mutes all output for silent tuning
• DI pre or post with level control
• Ground Lift for DI
• Aux in – 1/4” or mini jack
• Headphone out with level control

Master Outs 2 balanced XLR (recommended) outs for connection to WJ powered cabinets or to separate power amps. Balance control on from panel will affect these outputs.

Also a choice of 2 Unbalanced 1/4" outputs for same function. (not recommended as output is lower).

All master outs can be used together as a pair or individually with balance control set to the respective output.

FX Send & Return - Stereo or mono.

Foot switch - Mutes all output

DI Output - Balanced XLR out with Level control & pre or post EQ button

Aux Input - Stereo input, mini jack & 1/4” Phono. You can use this to plug items such as iPad, iPhone backing tracks etc. to play along with.

Headphone With Volume Control - Plug in your headphones to practise with. You can use the WJBPII by itself without plugging into a power amp.

Dimensions - 10 x 30 x 25 cm / 3.9 x 11.8 x 9.8 in

Weight - 3.2 kg / 7 lb
