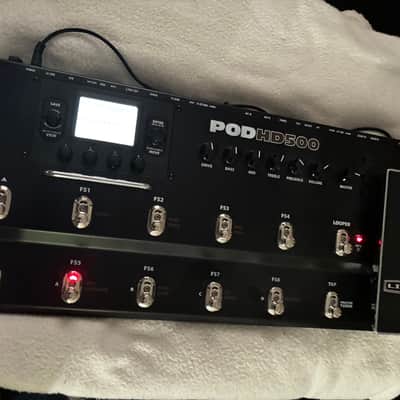

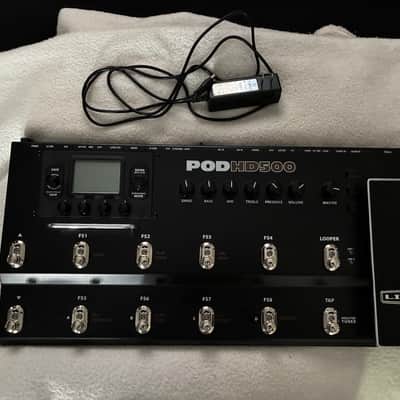

The *Line 6 POD HD500* is a multi-effects floor processor + amp modeler from around 2010. Guitar players used it as an “all-in-one rig” before modelers like Helix/Kemper took over.

### *What it is*

Basically a floorboard that replaces your pedalboard + amp for live or recording. You plug guitar in, XLR/¼" out to PA, amp, or interface.

### *Key features*

*1. HD Amp Modeling*

16 amp models based on Line 6’s “HD” engine. Think Marshall Plexi, Fender Deluxe, Vox AC30, Mesa Dual Rec, Soldano SLO, etc. They were a big step up from the older POD X3 tones — more dynamic, less fizzy.

*2. M13 Effects*

Has all the effects from the Line 6 M13 stompbox modeler. 100+ effects: delays, reverbs, mods, drives, pitch, filters. You can run up to 8 effects at once in any order.

*3. Dual signal chains*

This was the big selling point. Run two amps/effects chains in parallel or series. Example: Vox AC30 clean panned left + Marshall crunch panned right. Or bass + guitar rig at same time.

*4. Floor controller layout*

- 12 footswitches: 8 for effects/presets, 4 for bank/tap/tuner/looper

- Big expression pedal for wah/volume/morphing

- Chromatic tuner + 48-sec looper built in

*5. I/O*

Guitar in, aux in, XLR outs, ¼" outs, FX loop, Variax input, MIDI, USB for recording/editing. USB audio is 24-bit, so it doubled as an interface.

### *Pros back in the day*

- *Flexible*: One board could cover country clean to metal with no amp

- *Dual amps*: Sounded huge for recording

- *Cheap vs real rig*: $499 new, vs $2k+ for tube amp + pedals

- *Edit on PC*: “POD HD500 Edit” software made deep tweaking easy

### *Cons / why people moved on*

- *“Line 6 sound”*: HD models were better than X3, but still had a slight digital fizz on high gain

- *DSP limits*: Dual amps + 8 effects could max out the processor = greyed-out options

- *No IR loading*: Stuck with Line 6 cabs. Helix/Kemper later fixed this

- *Big/heavy*: 13 lbs, 21" wide
