Joyo JF-24 Orthros Selector Channel Pedal,price include the import duty for US buyer
Free Shipping
from Shenzhen, China
Our users rate Reverb

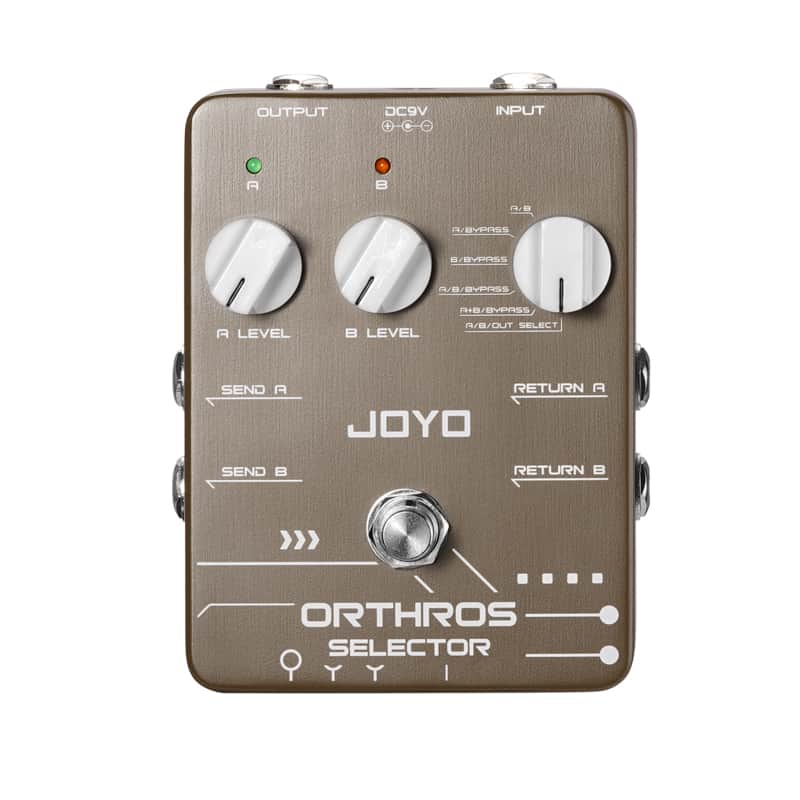

Panel Instruction
1.DC9V Input Jack: Center minus, it can connect to power adapter's DC plug.
2.INPUT: 1/4" Mono Audio Jack(Impedance 1M Ohms).
3.OUTPUT: 1/4" Mono Audio Jack(Impedance 1K Ohms).
4.LINE A LED Indicator: indicates LINE A.
5.LINE B LED Indicator: indicates LINE B.
6.LINE A LEVEL Control Knob: controls LINE A's LEVEL.
7.LINE B LEVEL Control Knob: controls LINE B's LEVEL.
8.LINE Mode Selection Control Knob: selects the LINE mode.
9.SEND A: 1/4" Mono Audio Jack.
10.RETURN A: 1/4" Mono Audio Jack.
11.SEND B: 1/4" Mono Audio Jack.
12.RETURN B: 1/4" Mono Audio Jack.
13.LINE Selection Footswitch: you can select the related LINE via pressing it.
Specifications
INPUT: 1/4" Mono Audio Jack(Impedance 1M Ohms)
OUTPUT: 1/4" Mono Audio Jack(Impedance 1K Ohms)
RETURN A: 1/4" Mono Audio Jack(Impedance 1M Ohms)
SEND A: 1/4" Mono Audio Jack(Impedance 1K Ohms)
RETURN B: 1/4" Mono Audio Jack(Impedance 1M Ohms)
SEND B: 1/4" Mono Audio Jack(Impedance 1K Ohms)
Power requirements: DC 9V power adapter(Center minus) (NOT INCLUDED)
Current draw: 22mA
Dimensions: 120mm(L) X 97mm (W) X 55mm (H)
Accessories: owner's manual
