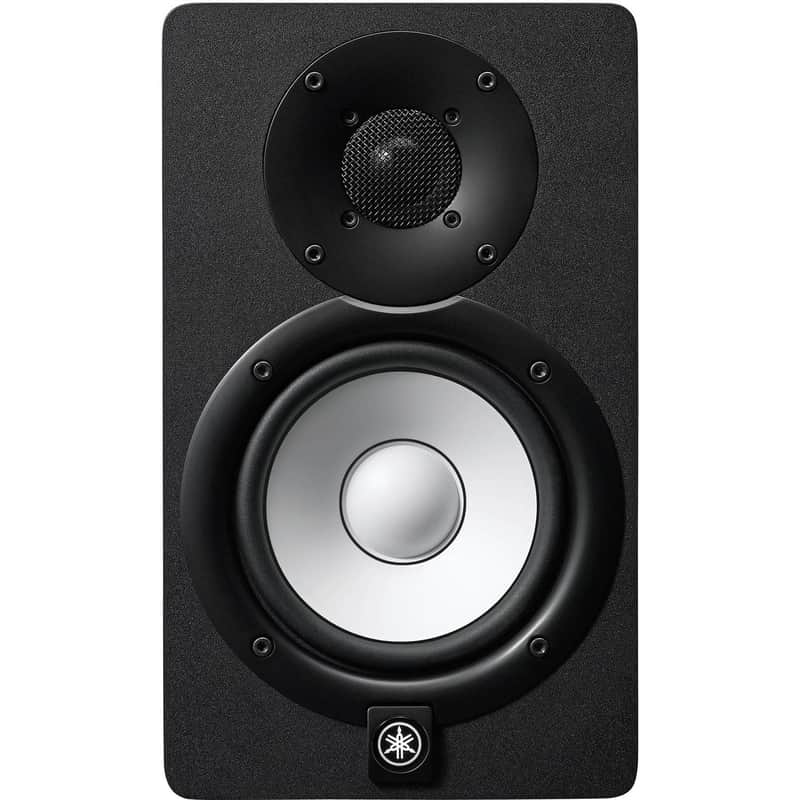

The black HS5 Powered Studio Monitor from Yamaha is a bi-amplified monitor that is designed for accurate sound reproduction. It is capable of up to 70W of total output and features a 5-inch woofer and a 1-inch tweeter with waveguide that can produce frequencies up to 30 kHz. The HS5 has both an XLR and 1/4" TRS input that accept either balanced or unbalanced signals for integration into a variety of studio setups.

Low-Resonance Enclosure Design
HS Series cabinets are designed to eliminate unwanted resonance and increase the accuracy of sound reproduction to their limits. The enclosures are constructed from dense MDF with a damped acoustic response. HS Series engineers employed a traditional three-way mitered-joint technique. Common to architectural design, this construction firmly anchors the corners of the enclosure to improve durability and eliminate unwanted resonance that can influence overall sound

Noise Reduction Technology
Speaker port design can greatly influence the clarity of overall sound. Often a vortex at the either end of the port can generate air vibrations inside of the port, causing unwanted noise. By adopting a noise reduction technology that incorporates an analysis of a visual representation of the sound, Yamaha's engineers are able to control and reduce the vortex. Through this analysis, Yamaha has arrived at a port design that reduces noise up to 6 dB

Controls and Connectivity
HS Series full-range models feature two response controls with settings that allow them to adapt to the surface acoustics of rooms of varying shape and size. ROOM CONTROL allows you to attenuate the unnatural, exaggerated low-end that can often occur when speakers are placed next to walls, while HIGH TRIM allows for more flexible control of high frequency response. For inputs, HS full-range speakers can accommodate a range of balanced and unbalanced sources such as mixers, keyboards and audio interfaces with XLR and TRS phone jacks.

Items Included

• Yamaha HS5 Powered Studio Monitor (Black, Single)
• Power Cable
• Limited 1-Year Manufacturer Warranty

Specifications

Monitor Type & Configuration Active 2-Way Number of Included Monitors Single Monitor Enclosure Bass-Reflex/Ported Total Power Output 70 W Drivers Tweeter 1x 1" / 25.4 mm Dome Woofer 1x 5" / 12.7 cm Cone Amplifiers LF: 45 W Class-D
HF: 25 W Class-D Performance Frequency Range 74 Hz to 24 kHz (-3 dB)
54 Hz to 30 kHz (-10 dB) Analog Input Sensitivity/Gain -10 dBu Signal Processing EQ 1x LF Shelf: -4 to 0 dB at 500 Hz (2 dB Increments)
1x HF Shelf: -2 to +2 dB at 2 kHz (2 dB Increments) Filters No Crossover Frequency 2 kHz Phase Adjustment No Connectivity Audio I/O 1x XLR 3-Pin Balanced Input (10 Kilohms)
1x 1/4" TRS Balanced Input (10 Kilohms) Digital Audio I/O No Network I/O No USB No Wireless No Power AC Input Power Not Specified by Manufacturer Power Consumption 45 W Physical Color Black Monitor Orientation Vertical Enclosure Material MDF Mounting Points No Dimensions (W x H x D) 6.7 x 11.2 x 8.7" / 17 x 28.5 x 22.2 cm Weight 11.7 lb / 5.3 kg Packaging Info Package Weight 16.2 lb Box Dimensions (LxWxH) 16.4 x 12 x 10.2"
