Genelec 8330A SAM Stereo Pack (Black)

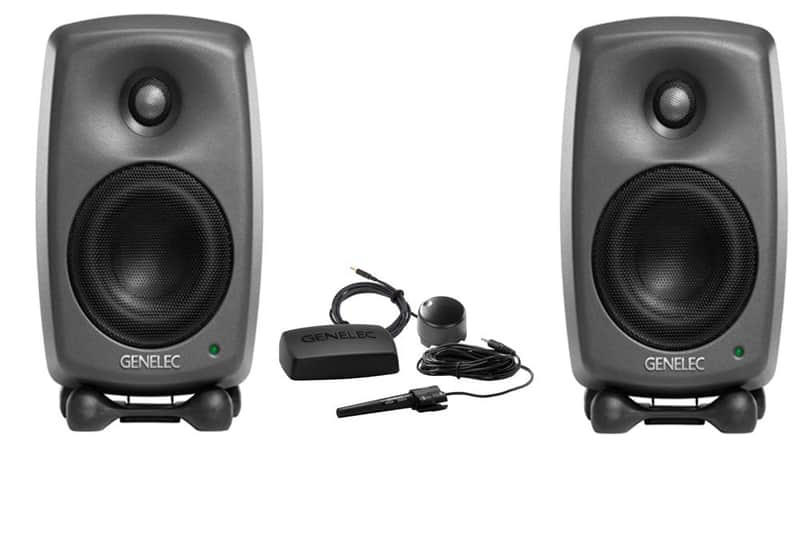

The Genelec 8330A Stereo Pack is a complete calibrated stereo monitoring system bundling two 8330A Smart Active Monitors with the 8300-601 GLM calibration kit (measurement microphone, GLM network adaptor, USB cable, and microphone clip) and the 9310BM desktop volume controller. The 8330A offers more SPL and bass extension than the 8320A, with both analog XLR and digital AES/EBU connectivity. Connect to GLM software for automated room measurement and compensation.

System Components

• 2x Genelec 8330A SAM monitors: 5" bass driver + 3/4" metal dome tweeter, 50W + 50W Class D amplification per monitor, analog XLR + AES/EBU digital I/O
• 8300-601 GLM calibration kit: Measurement microphone, GLM network adaptor, USB cable, microphone clip
• 9310BM volume controller: Desktop rotary volume control with GLM network integration

Smart Active Monitoring (SAM)

GLM software measures your room acoustics and applies automatic multi-band EQ compensation, level alignment, and delay alignment to both monitors. The system supports configurations from stereo to immersive multichannel. The 8330A's AES/EBU digital input accepts 16-24 bit audio at sample rates from 32 to 192 kHz.

Monitor Specifications

• Type: 2-way SAM active monitor (per unit)
• Bass driver: 5" (130 mm) cone
• Treble driver: 3/4" (19 mm) metal dome
• Amplifier power: 50W + 50W (Class D)
• Frequency response: 58 Hz - 20 kHz (+/-1.5 dB, GLM calibrated)
• Frequency range: 45 Hz - 23 kHz (-6 dB)
• Max SPL: 104 dB @ 1 m (per monitor)
• Analog input: XLR balanced
• Digital input: AES/EBU XLR (16-24 bit, 32-192 kHz)
• Control network: 2x RJ45 (GLM)

Dimensions (per monitor)

• Height (with Iso-Pod): 299 mm / 11.8"
• Width: 189 mm / 7.4"
• Depth: 178 mm / 7.0"
• Weight: 5.1 kg / 11.2 lb

In the Box

• 2x Genelec 8330A SAM monitors
• 8300-601 GLM calibration kit (microphone, adaptor, USB cable, clip)
• 9310BM volume controller
• 2x mains cables (1.8 m)
• GLM network cables
• Operating manual
