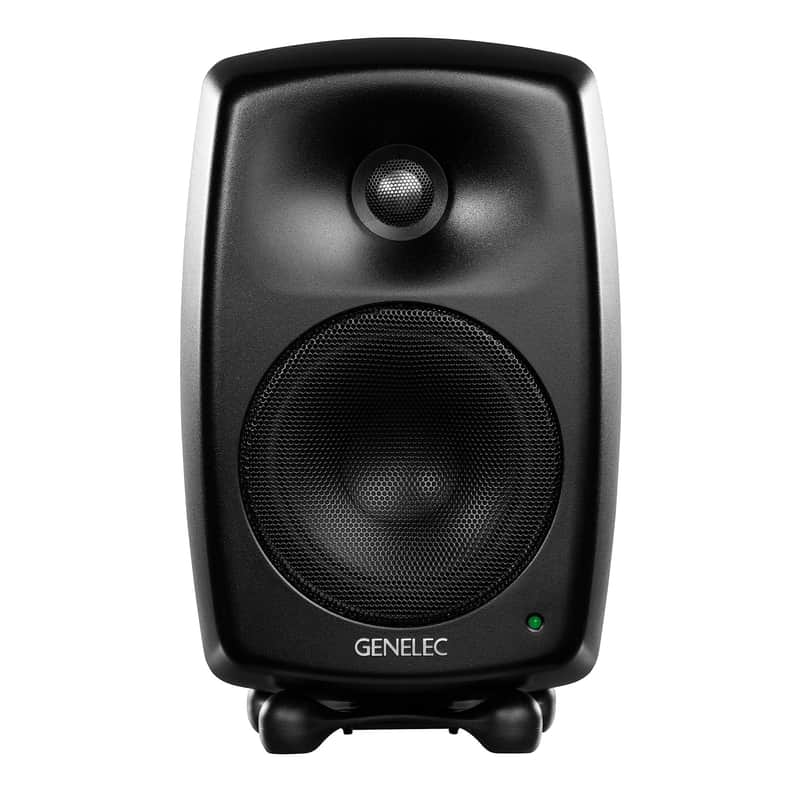

Genelec 8030C 5" Active Studio Monitor (Black)

The Genelec 8030C is a bi-amplified active studio monitor with a 5" bass driver and 3/4" metal dome tweeter. Sitting in the sweet spot between compact size and full-range performance, the 8030C delivers precise imaging and detailed reproduction with more SPL and bass extension than its smaller siblings. Its die-cast aluminium MDE enclosure and rear-panel room compensation make it a consistent best-seller for project studios, post-production suites, and broadcast facilities.

Acoustic Design

• Minimum Diffraction Enclosure (MDE): Rounded aluminium enclosure eliminates parallel surfaces that cause cabinet-induced colouration
• Directivity Control Waveguide (DCW): Controls speaker directivity across the full frequency range for accurate imaging on and off axis
• Reflex port design: Flow-optimized rear port with large cross-sectional area for clean, extended bass without port noise at high levels
• Iso-Pod stand: Isolates the monitor from the surface and allows vertical or horizontal orientation with tilt adjustment
• Intelligent Signal Sensing (ISS): Automatic standby mode when no audio signal is detected

Room Compensation

Rear-panel DIP switches provide Treble Tilt, Bass Tilt (0 to -6 dB in 2 dB steps), Bass Roll-Off (-4 dB at 55 Hz), and Desktop EQ compensation. These controls allow the 8030C to be optimized for placement near walls, in corners, or on desk surfaces where boundary effects would otherwise colour the response.

Specifications

• Finish: Black
• Type: 2-way active monitor
• Bass driver: 5" (130 mm) cone
• Treble driver: 3/4" (19 mm) metal dome
• Amplifier power: 50W + 50W (Class D)
• Frequency response: 54 Hz - 20 kHz (+/-2 dB)
• Frequency range: 47 Hz - 25 kHz (-6 dB)
• Max SPL: 104 dB @ 1 m
• Crossover frequency: 3.0 kHz
• Input: XLR balanced analog
• Mains voltage: 100-240 VAC, 50/60 Hz

Dimensions

• Dimensions (H x W x D): 11.8 x 7.4 x 7.0 in (299 x 189 x 178 mm)
• Weight: 5.0 kg / 11.0 lb

In the Box

• Genelec 8030C monitor (single)
• Mains cable (1.8 m)
• Iso-Pod kit
• Operating manual
