8 full voices
massive sound
polyphonic
multi-part
multi-engine
wav-player
custom wavetables
built-in FXs

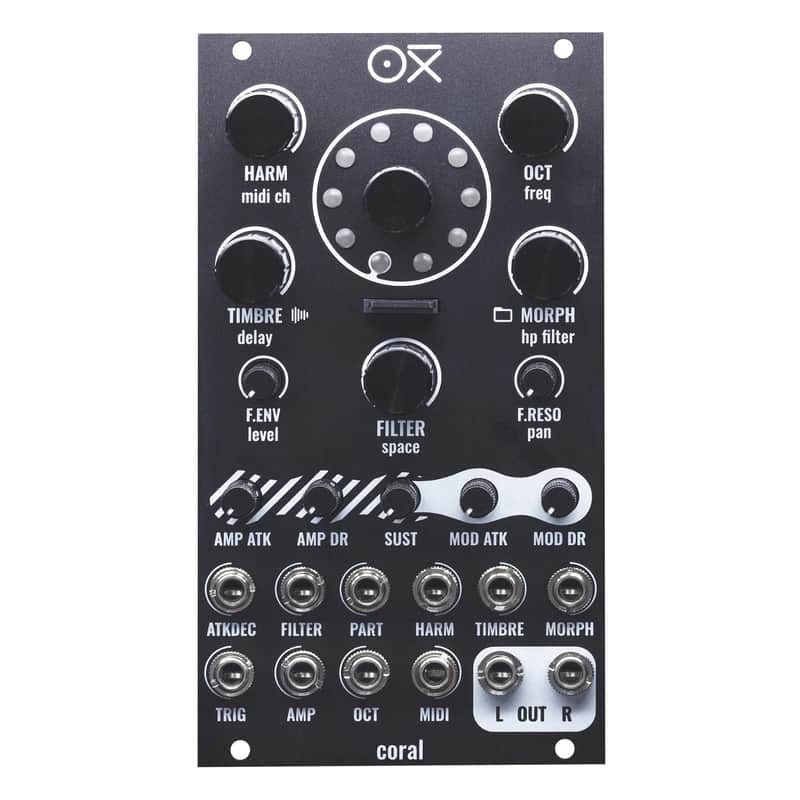

14 hp 8 full voice polyphonic, multipart, multi engine synthesizer module with sample playback, sweet reverb and chorus.

Create pads, basslines, riffs and drums. All in one module.

Group voices into parts and assign each voice a different engine or parameter settings to create complex patches. FEATURES BIG SOUND

Lots of computing power to deliver rich sounding engines, in an 8 voice package.
One voice can have 8 oscillators depending on the engine, which means up to 64 oscillators at the same time!

POLYPHONIC

Coral features 8 full voices with independent filter, amplifier and modulation envelopes per voice.
Individual FX sends and individual parameter can be set per voice!

MULTIENGINE

Different sound engines can be assigned to each voice from the 10 available.
New engines will be availabe through firmware updates.

MULTIPART

The 8 voices can be freely split into different parts. Every single parameter (filter, envelope settings, engine, FX sends, pan, etc.) can be independently set for each part or voice to create complex patches out of the box.

SAMPLE PLAYBACK

CORAL supports almost any kind of wav file: 16, 24 and 32 bit mono and stereo files, no limit to playback time!
Add overdrive to your samples, sculpt them using the filter and envelopes, pitch them up and down in tune and even modulate the sample file or folder in real time using the CV inputs or CC MIDI commands!

CUSTOM WAVETABLES

You can load any wavetable .wav file to the SD card for the Wavetable engine. The wavetable can be morphed in 3 dimenstions. Use our OXI Wave APP to create and edit 3D wavetables.

MIDI INTEGRATION

Control any part’s parameter via MIDI CC, from FXs sends to sample selection.
Combine it with CV signals for a killer compact combo.

EFFECTS

Space engine to create deep atmospheres and rich ensemble chorus.
Every effect send can be set per voice.

DIMENSIONS
14 HP 30 mm deep CURRENT DRAW
110 mA +12V 10 mA -12V 0 mA 5V
