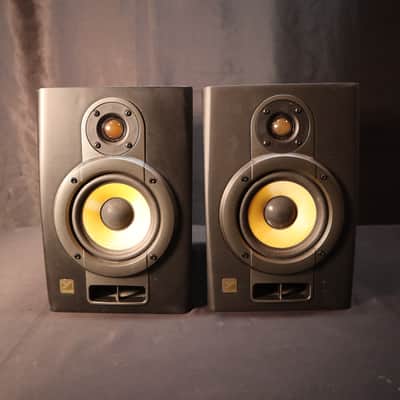

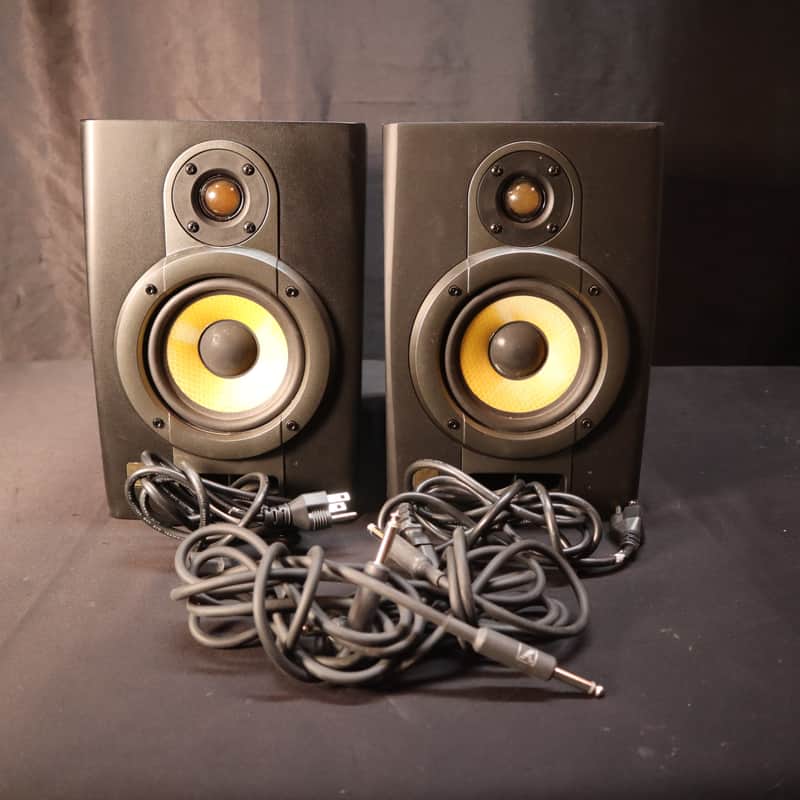

Yorkville YSM2P Compact Active Studio Monitor

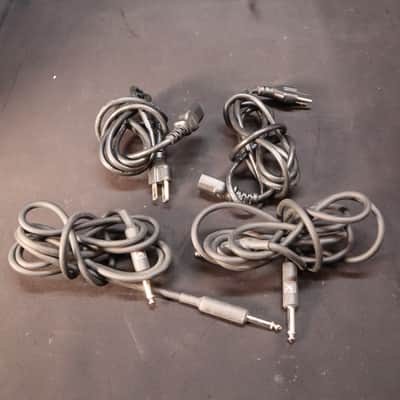

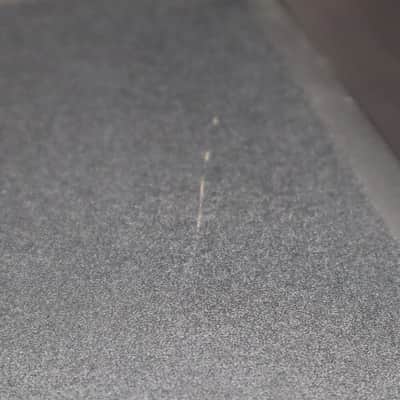

This item is in good condition. There is chipping along the back edges of the left unit. There are some scratches along the sides. There is a notable scratch on the right side of the right unit. Comes with power cords and patch cables.

Yorkville Sound's YSM2P powered studio monitor is engineered to be equally at home in a full-scale recording studio, project studio, or living room. Yorkville's development of the renowned YSM1P has helped them provide the YSM2P with critically responsive functionality while retaining compact user-friendliness and all at a reasonable cost.

Drivers include a 1-inch domed tweeter and a 5.25 inch woofer, both magnetically shielded. The woofer is a low-resonance 4-ohm driver fabricated with a woven laminate cone which precisely reproduces and optimizes the low-frequency amplifier's 32 Watts of power output. The HF side of the amplifier is capable of delivering up to 14 watts to the 1-inch, fluid-cooled dome tweeter. Optimal performance is also achieved by use of an active crossover specifically developed for the YSM2P. Feature-wise, an input trim control is included for level tweaking according to room acoustics. As well, parallel balanced 1/4-inch TRS and XLR inputs are included to provide a choice of connections and so that YSM2Ps can be interconnected for additional acoustic distribution.

Features

Bookmatched Left/Right pairs

Bi-amplified operation features 32-watts of low frequency power and 14-watts for the high frequency

Components include a 1-inch domed tweeter and a woven laminate cone 5 1/4-inch woofer

Precisely tuned active crossover enables each driver to take advantage of the bi-amplification

1/4-inch TRS or XLR input jacks

Input Trim control allows you to adjust the volume of each monitor

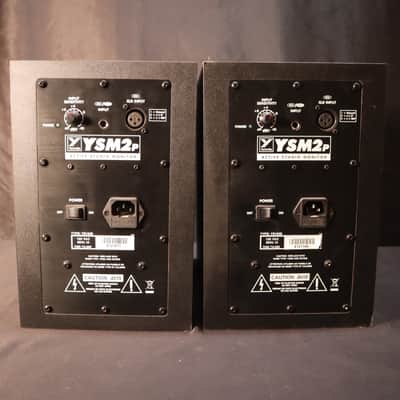

Power switch is located at the rear of the enclosure

Specifications:

System Type - 2-Way

Active or Passive - Active

Total Applied Power (Watts) - 46

Biamp Operation - Yes

HF Power Amplifier (Watts) - 14

HF Amplifier Type - A/B

LF Power Amplifier (Watts) - 32

LF Amplifier Type - AB

Amplifier Cooling Scheme - Convection

HF Driver - 1 inch Polyester Dome, Ferrofluid Cooled

HF Program Power (Watts) - 14

LF Driver - 5.25-inch w/Woven Laminate cone and Ceramic magnet

LF Program Power(Watts) - 32

Magnetic Sheilding - Bucking Magnet

Max SPL (dB) - 113

Frequency Response (Hz +/- 3db)- 70-19,000

Crossover Frequency (Hz) - 2,000

Power Consumption (typ/max)- 36VA/72VA

Inputs- 1 x XLR + 1 x 1/4-inch TRS

Input Sensitivity (Vrms Sine) - 0.25

Level ControlsInput Sensitivity - off/-10dB)

Enclosure Materials - MDF Wood

Baffle Material- Gray PVC Clad MDF Wood

LF Vent - 1-inch Port

Finish - Charcoal Gray Laminate

Other Details - Shipped in Mirrored Pairs.

Dimensions (DWH , inches) - 10.5 x 7.6 x 11.5

Dimensions (DWH, cm) - 26.6 x 19.4 x 29.2

Weight (lbs/kg)- 12/5.4
