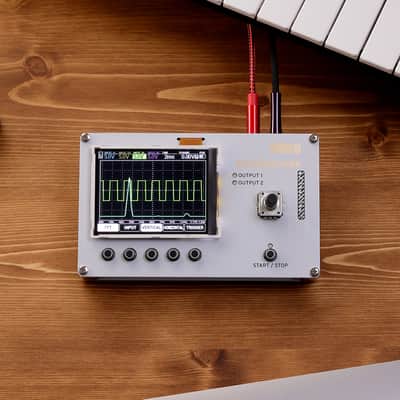

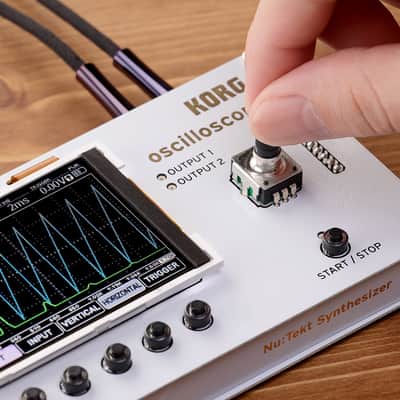

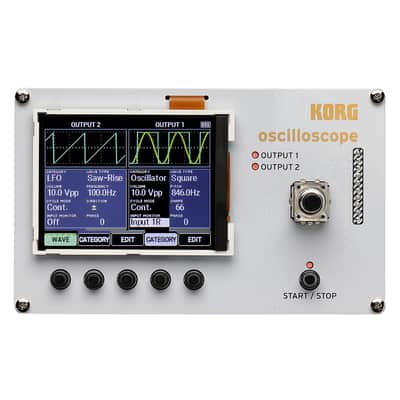

Nu:Tekt NTS-2 Oscilloscope Kit multi-tool for synth users in a pocket-sized, elegant package that you can take anywhere: 4 Channel Oscilloscope, FFT/Spectrum Analyzer, Dual Waveform Generator, and Tuner. USB or battery-powered. DIY kit that you get to build yourself (no soldering necessary, all tools included).

BUNDLE:

Included items:

- NTS-2

- Side panels for NTS-2

- Stickers

Weight:

- Gross: 1.480 kg (52.2 oz)

- Net: 1.320 kg (46.56 oz)

Dimensions:

- 26.3 x 6.5 x 27.3 cm (10.35 x 2.56 x 10.75 inches)

Featured products:

- MS-20 / volca modular / ARP 2600 m / NTS-2 and many others.

Featured artists:

- More than 25 artists including Pete Townshend, Jean-Michel Jarre, Richard Devine, Andrew Huang, and many others

Featured KORG / ARP members:

- Fumio Mieda, Tatsuya Takahashi, Dina Pearlman, David Friend, and many others

NTS-2 OSCILLOSCOPE KIT:

Dimensions:

- 12.9 x 7.8 x 3.9 cm (5.08 x 3.07 x 1.53 inches)

Weight:

- 130g (not including batteries) (4.6 oz)

Power:

- USB type-C (2.0, 500mA max) or 2x AAA batteries (approx 2 hours running time)

Inputs:

- Input: 3.5mm Stereo x2, ±10V max

- Through Output: 3.5mm Stereo x2

- Output: 3.5mm Mono x2, ±5V max

Oscilloscope:

- Display modes: Single, Stereo (Input1L-INPUT1R, Input1L - Input2L, Input2L - Input2R), 4ch, XY(Lissajous, 2ch)

- Vertical: 10mV~5V/div, AC/DC MODE switchable

- Horizontal: 50us~1s/div

- Trigger: Auto, Rise, Fall, Single(rise), Single(fall)

FFT (Spectrum Analyzer):

- Input: mono (1L, 1R, 2L, 2R)

- Frequency: 0Hz~20kHz

Function Generator:

- Wave type: sine, square, triangle, saw, noise, pulse, envelope

- Frequency: 1Hz~10kHz, Hz/NOTE mode switchable, [1ms~10s, sec/BPM switchable(pulse, envelope mode)]

- Output level: 10Vpp max, V/dB mode switchable

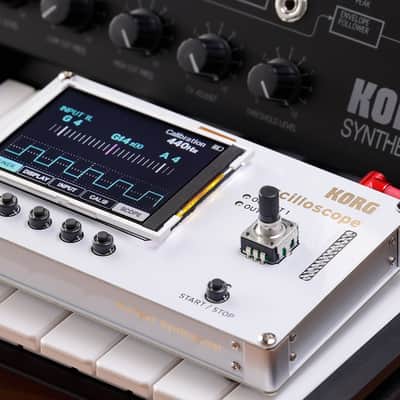

Tuner:

- Display mode: Needle, Meter

- Input: Mono, Stereo (Input1L-Input1R, Input1L-Input2L)

- Calibration: 410-480Hz
