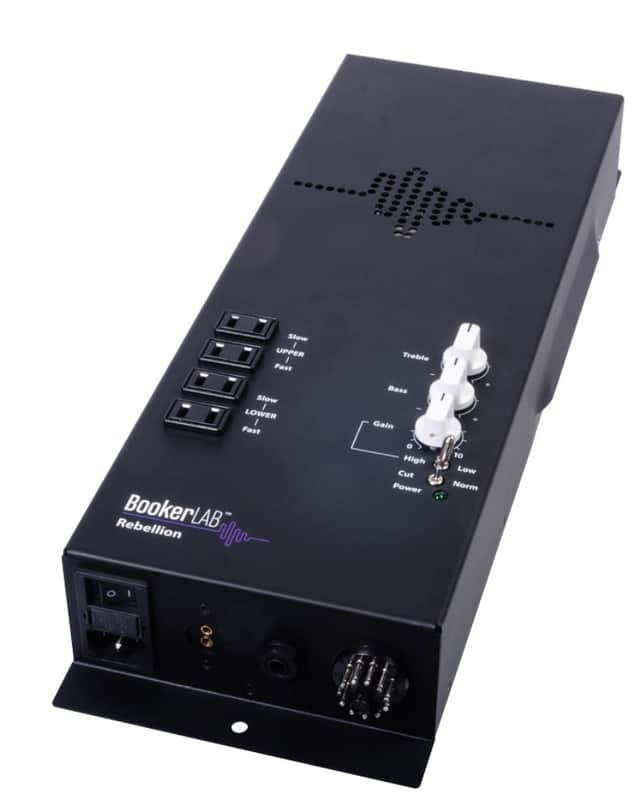

BookerLAB Rebellion 11-Pin 2025 - New

Description

The Rebellion Amplifier from BookerLAB provides a solid-state alternative to traditional tube amplifiers. With the same physical footprint as vintage Leslie® amplifiers, Rebellion offers reliable operation of your rotating speaker cabinet through an 11-pin Leslie® interface.

Rebellion supports Leslie® 11-pin Fast/Slow/Stop signals. Designed to maintain much of the vintage style, standard versions of Rebellion feature traditional speakers and motor connections.

The solid-state preamp provides clean gain/volume, treble, and bass controls.

The Rebellion is currently only compatible with 120VAC (American) power.

Benefits:

• Solid-state amplification and speed switching
• Supports 11-pin Fast/Slow/Stop signals
• Accepts line level audio
• Lightweight and portable
• Rugged design
• Built-in preamp with tone controls

Features:

• Vintage style 2-pin output connector (optional Molex connector or ¼” jack)
• Standard motor outlets
• Selectable 45/90-watt output into 16Ω
• Leslie 11-pin connector
• Input sensitivity – 1 Vrms
• Gain – 28 dBv/31 dBv
• Compatible with 120VAC power

Connectors:

• Input/Control: standard 11-pin
• Output: vintage 2-pin (EBY) style and ¼” jack
• Molex .093 option available instead of EBY (#BL9471-02)

Leslie® is a registered trademark of Hammond Suzuki Corporation.
