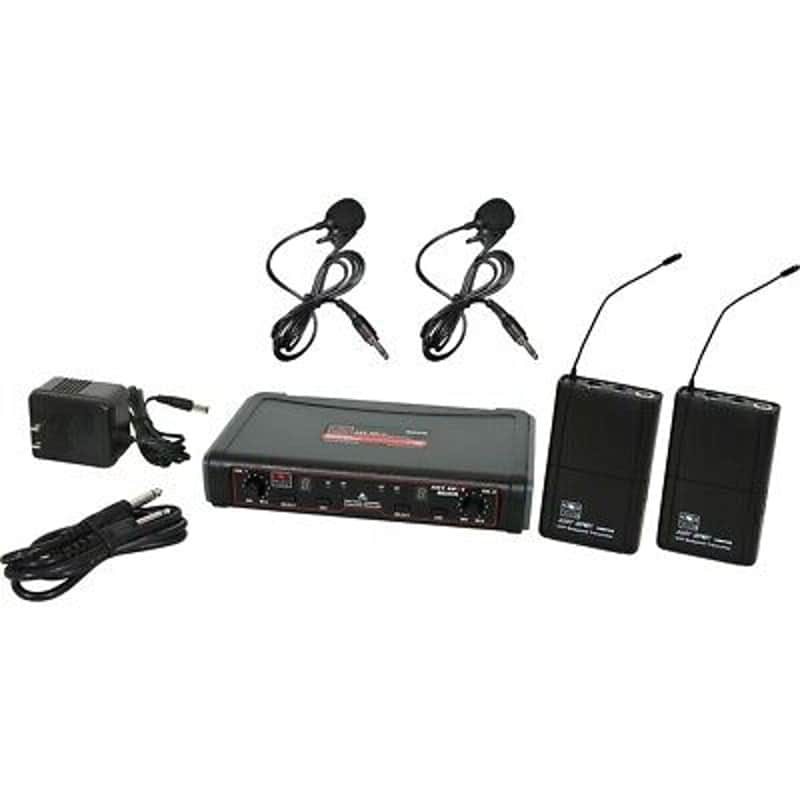

Galaxy Audio EDXR/38VV 2-Set Dual Lavalier Wireless Microphone System, Band N

Galaxy Audio EDXR/38VV - Lavalier Microphones, Dual Channel (UHF) Wireless System; Band N (518-535 MHz)

Customer Return, may show signs of wear.

The EDX Series is a dual channel wireless system. The EDX features 2 internal antennas (1 for each receiver), 16 selectable channels on each receiver, and IR Sync from receiver to transmitter. The EDX has 2 discreet male XLR outputs and 1 combined 1/4" output on the back of the unit. The output is controlled by a volume control for each receiver, located on the front of the unit.

• 200' Range
• Dual Channel Receiver
• 16 Selectable Channels
• UHF Frequency
• Internal Antennas
• IR Sync Transmitter to Receiver

EDXR Receiver

• AF & RF Indicators
• IR Sync
• 1 Mixed 1/4" Output, 2 Balanced Male XLR Outputs
• 2 Internal Antennas (Non-Diversity)
• Rugged Plastic Casing

MBP38 Transmitter

• IR Sync w/ receiver
• Mic/0dB/-10 dB pad
• On/Off/Standby Switch
• Durable Plastic Casing

EDX SYSTEM SPECS

• Available Channels 16
• Frequency Range CODE N 518-535 MHz
• Transmitter Output Level 10 mW
• Band UHF
• Operating Range Under Typical Conditions 200' (61 m), actual range depends on RF signal absorption, reflection, and interference.
• Audio Frequency Response (+/-3 dB) 60 Hz ~ 16 kHz
• Total Harmonic Distortion (+/-30 kHz deviation 1 kHz tone): <1%
• Dynamic Range >90 dB A-weighted
• Operating Temperature Range 14ºF to 122ºF (-10 Cº to +50 Cº), battery characteristics may limit this range.

EDXR RECEIVER

• Audio Output Level XLR Connector (into Ohms 600 load) -12 dBV
• 1/4" Connector (into 3k Ohms load) -18 dBV
• Output Impedance XLR Connector 200 Ohms
• 1/4" Connector 1k Ohms
• Sensitivity -92 dBm
• Image Rejection >92 dB
• Dimensions 1.7" x 8.3" x 5" (42 x 210 x 127 mm)(H x W x D)
• Weight 13.6 oz (390 g)
• Power Requirements 12-18 V dc at 300mA, supplied by external power supply

MBP38 BODY PACK TRANSMITTER

• Max Audio Input Level 0 dBV to +20 dBV
• Gain Adjust Mic/0 dB/-10 dB
• RF Output 10 mW
• Input Impedance 5k Ohms
• Dimensions 3.3" x 2.6" x 1" (85 x 65 x 23 mm) (H x W x D)
• Weight 2.8 oz (80 g) (without batteries)
• Power Requirements 2 “AA” size alkaline or rechargeable batteries
• Battery Life About 8 hours (Alkaline)
