The Control 25-1 is a two-way 5” speaker with rich sonic character, wide coverage, consistent dispersion, versatile mounting, and a contemporary high-design look that fits into a wide range of decors. This makes Control 25-1 an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality high-output indoor/outdoor foreground/background music (and/or paging) speaker is required.

Product Specifications:

Frequency & Power:

Frequency Range (-10dB): 60 Hz to 20 kHz

Frequency Response (±3 dB): 85 Hz – 17 kHz

Power Rating: 200W Continuous Program (2 hrs) / 100W (400W peak)

Pink Noise Power Rating: 75W (300W peak, 100 hrs)

Maximum Input Voltage: 25.3V RMS (2 hrs), 50.6V peak

Maximum SPL (1m): 110 dB (116 dB peak)

Sensitivity: 90 dB, 1W/1m (100 Hz – 10 kHz)

Coverage & Directivity:

Coverage Angle: 100°H x 100°V

Directivity Factor (Q): 6.04 (1kHz – 16kHz)

Directivity Index (DI): 7.6 dB (1kHz – 16kHz)

Impedance & Crossover:

Impedance: 8Ω (THRU setting)

Crossover Type: 2nd order low-pass, 3rd order high-pass

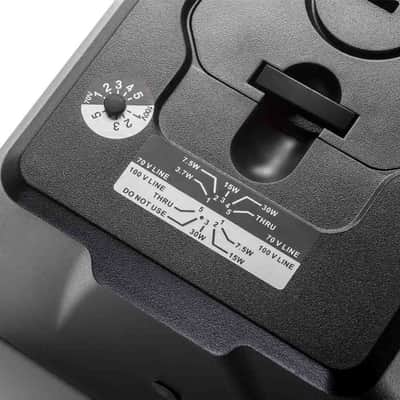

Transformer Taps:

70V: 30W, 15W, 7.5W, 3.7W

100V: 30W, 15W, 7.5W

Insertion Loss: <0.94 dB at any tap setting

Protective High-Pass Filter:

Recommended: 60 Hz high-pass (24 dB/oct)

Drivers:

LF Driver: 5.25" woven-fiberglass cone, rubber surround, high-temp voice coil

HF Driver: 0.75" PEI diaphragm, ferrofluid cooling, Kapton voice coil

Enclosure & Grille:

Material: High Impact Polystyrene (HIPS)

Finish: UV-resistant paint (white version)

Grille: Zinc-plated with TGIC polyester powder coating

Mounting & Hardware:

Included: InvisiBall wall-mount system, 6mm hex key

Optional:

MTC-25UB-1 – U-bracket

MTC-25WMG-1 – WeatherMax grille

MTC-28/25CM – Ceiling-mount adapter

Outdoor & Safety Ratings:

Weather Rating: IP-44 (IP-55 with optional WeatherMax grille)

Safety Compliance: ROHS-compliant, Transformer UL Recognized (UL1876)

Input & Connectivity:

Connector Type: Screw-down terminal strip (supports up to 12 AWG wire)

Optional Protective Covers: MTC-PC2, MTC-PC3

Physical & Dimensions:

Colors: Black (RAL9004) / White (RAL9016)

Dimensions (H x W x D): 9.6 x 7.4 x 5.7 in (8.0 in deep with InvisiBall bracket)

Net Weight (each): 7.5 lbs (3.4 kg)

Shipping Weight (pair-pack): 18 lbs (8.16 kg)
