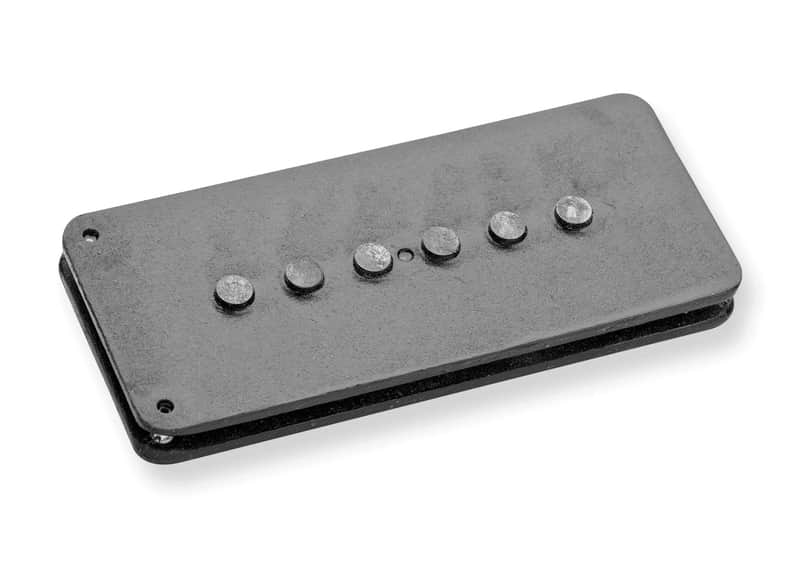

The late 50s Jazzmaster used wide, flat coils produced a deep, rich tone that they hoped would appeal to Jazz players. While it did, it also became the go-to instrument for so many of the instrumental bands of the 60s. And, it turns out, the Jazzmaster is a monster when turned up and played through a fuzz pedal. We use calibrated alnico 2 poles, and a custom coil wind to soften the treble attack for a sweeter, smokier overall tone. The treble response is there, but is not harsh, while the bass response has just the right snap. The Antiquity for Jazzmaster neck pickup is wound RWRP so that, when used together with the bridge model, they will be hum-canceling. This pickup is a drop-in replacement compatible with Fender American Standard sized Jazzmaster pickup, and will fit nicely into the existing cover. Hand built in our Custom Shop, this pickup uses alnico 2 rod magnets, a custom coil wind with heavy formvar mag wire, vintage-correct flatwork, cloth push-back lead wire, and they are all lacquered and wax potted like the originals.

pickup length:3.530
pickup width:1.512
winding direction:top going
magnet polarity:north
calibrated:yes
height adjustment:into body
magnet pattern:raised from top and bottom
DC Ohms: 8.3K
Inductance:4.2 henries
Q:3.5
