Overview

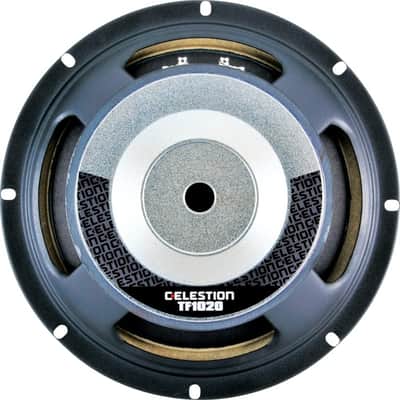

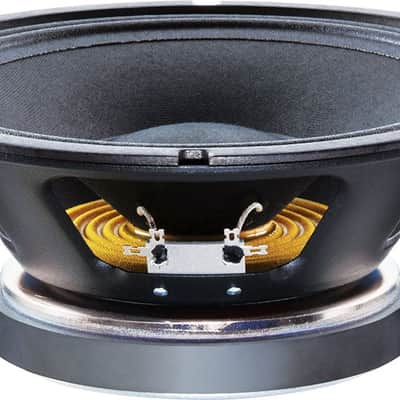

The Celestion TF1020 is a high-quality mid/bass driver that features a 10-inch pressed steel chassis and a ferrite magnet for exceptional sound quality. With a power rating of 150W, a continuous power rating of 300W, and a sensitivity rating of 97dB, this driver delivers clear and detailed audio across a wide range of frequencies, from 60-5500Hz. The Kevlar-loaded paper cone and cloth-sealed surround material provide added durability, while the single suspension ensures smooth and accurate movement. With an additional impedance of 4Ω and an overall diameter of 256mm, this mid/bass driver is easy to install and is designed to provide reliable performance in a variety of audio applications. Whether you're a musician or an audio enthusiast, the Celestion TF1020 is an excellent choice for any mid/bass driver application.

Specifications

• Nominal diameter: 254mm / 10in
• Power rating: 150W
• Continuous power rating: 300W
• EIA power rating: 250W
• Rated impedance: 8Ω
• Sensitivity: 97dB
• Frequency range: 60-5500Hz
• Chassis type: Pressed steel
• Magnet type: Ferrite
• Magnet weight: 1.2kg / 42oz
• Voice coil diameter: 50mm / 2in
• Voice coil material: Round copper
• Former material: Polyimide
• Cone material: Kevlar loaded paper
• Surround material: Cloth-sealed
• Suspension: Single
• Gap height (Hg): 8mm / 0.31in
• VC winding height (Hvc): 12mm / 0.47in
• Overall diameter: 256mm / 10.08in
• Overall depth: 110mm / 4.3in
• Cut-out diameter: 229mm / 9.02in
• Mounting hole dimensions: 8x6mm / 0.31x0.24in
• Number of mounting holes: 4
• Mounting hole PCD: 245mm / 9.65in
• Unit weight: 3.7kg / 8.2lb
