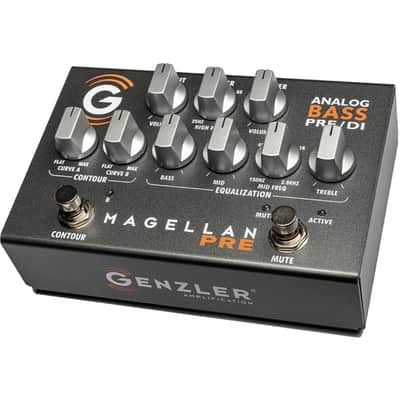

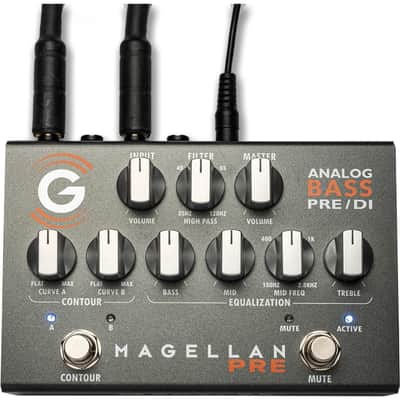

The MAGELLAN PRE is an all-analog full featured preamp pedal with a wide-range input gain control, 3-band equalization with sweepable mids, Genzler's unique foot switchable dual curve adjustable contour circuits, foot switchable mute circuit, aux input, headphone output, balanced/unbalanced main output and balanced XLR direct output.

This compact, lightweight pedal brings all of the tone and versatility of the MAGELLAN series bass amplifier designs into a small pedal format.=

The MG-PRE-PEDAL is also a great companion to Genzler's 4 ON THE FLOOR Classic Overdrive Pedal, CRASH BOX-4 Classic Distortion Pedal and RE/Q 5 band EQ + Filter Pedal.

Features:

- Wide Range Input Circuitry

- Input and Master Volume Controls

- Variable High Pass Filter

- Switchable Dual Contours (A & B)

- Independent Contour Controls

- Same Magellan 3 Band EQ with Sweepable Mids

- Signal mute

- Preamp OutputCapable of driving a Separate Power Amp

- Aux Input

- Headphone Output

- Studio Quality Direct Out Circuitry w/Pre or Post and GND Lift

- Lightweight Aluminum Chassis Construction

- Operates on any Power Supply Voltage: 9 18VDC, either Polarity (power supply not included)

- Dimensions: 6" (152mm) W x 4.3" (110mm) D (w/jacks) x 2.5" (63mm) H (w/ knobs and feet)

- Weight: 1.1 lb (0.5kg)
