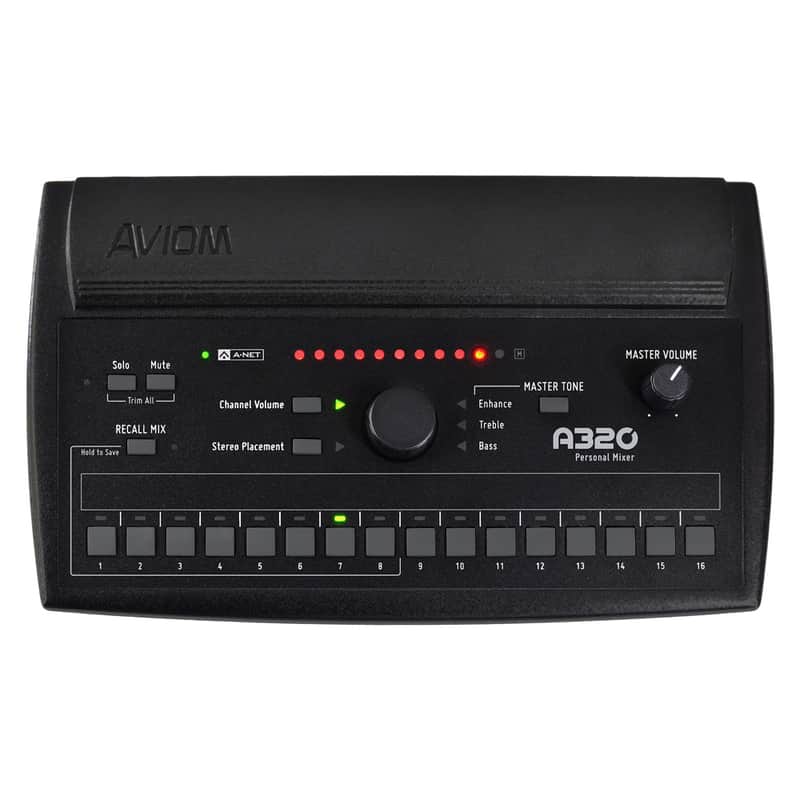

Aviom A320 Personal Mixer (Demo Deal)

Aviom A320 Personal Mixer (Demo Deal)

The Aviom A320 Personal Mixer gives performing and recording musicians simple, intuitive control over their monitor mixes. With many of the features of the award-winning A360 Personal Mixer, the A320 gives musicians the ability to get clear, musical monitor mixes every time they play. Ideal for use with in-ear monitors and headphones, the A320 gives musicians powerful control over their mix, while also preserving the simplicity required for use while performing.

Features

• 16 mono or stereo sources
• 32-channel mix engine
• Per-channel volume and Stereo Placement
• Eight customizable mix presets
• Three-band master tone controls optimized for in-ear monitors
• Per-channel solo and mute
• Compatible with existing Aviom personal mixing systems

Specifications

• Audio Output: 1/4" TRS stereo, headphone or line level
• Stereo Mix Output, Headphone/Line Tip: Audio Left;
• Ring: Audio Right;
• Sleeve: Ground
• A-Net I/O: 1 A-Net In, RJ45 connector;
• Supports Pro16 and Pro16e
• D/A Conversion: 44.1/48kHz, 24-bit
• Stereo Operation: Stereo Link, per channel pair;
• Set at the input module; Variable pan per mono channel or pan/spread per stereo channel pair
• Headphone Output: 275 mW per side into 50 Ohms (both sides driven)
• Output Impedance: 5 Ohms
• Freq. Response: 3Hz-22kHz +0.2dB/-3dB at 50 Ohms
• THD +N < 0.003%
• Output Voltage for Personal Mixers: 24VDC, 0.5 amp
• Transmitted over the Cat-5e cable
• Signal to Noise (unweighted): -106dB (measured with zero data into all channels)
• Latency: 0.880 msec (measured from analog input to analog output)
• Pro16e A-Net: Use Cat-5e (or better) cable; Maximum 400 ft (122 m) between devices; Supports Power Over A-Net
• Cat-5 cable: Use shielded Cat-5e (or better) cable to stay below the CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15 Class B emissions limits.
• Power: 24 VDC, 0.5 amp; Power is supplied over the Cat-5 cable when connected to an Aviom A-Net Distributor
• Dimensions: 10.26" (260.6 mm) wide x 6.14" (155.95 mm) deep x 1.91" (48.51 mm) high
• Weight: 1.3 lb. (0.59 kg)
• Options: MT-1a Mic Stand Mount
