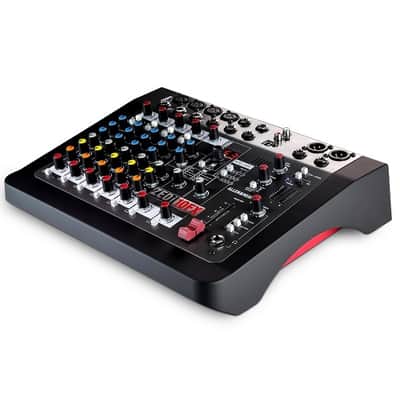

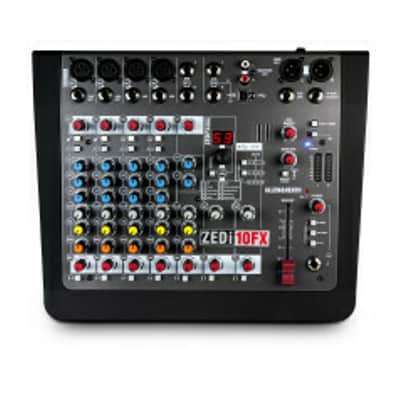

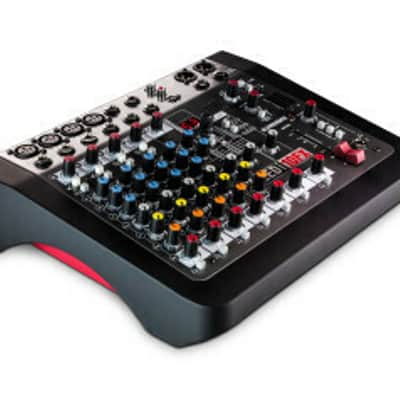

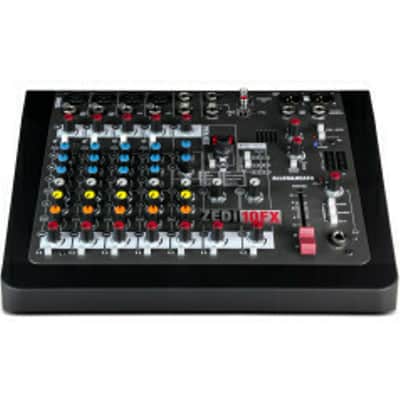

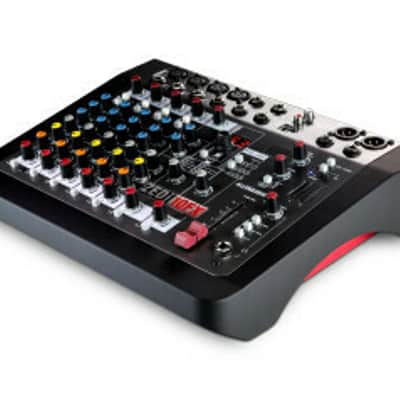

Allen & Heath ZEDi-10FX 10-channel Mixer at a Glance:

• Record 24-bit/96kHz audio direct to your DAW
• Built-in effects with tap tempo
• GSPre preamps based on the GS-R24 recording console
• Connect guitar and bass directly, no need for DI boxes

Record 24-bit/96kHz audio direct to your DAW

With USB 2.0 connectivity, the Allen & Heath ZEDi-10FX mixer is ready to record and play back 24-bit/96kHz audio. Just connect to your computer or iOS device, open the included Cubase LE software, Cubasis LE app, or your preferred DAW software, and you're ready to go. Separate controls for the USB playback channels allow you to blend USB audio with the Main Mix and Aux Mix independently.

Built-in effects with tap tempo

The Allen & Heath ZEDi-10FX mixer boasts built-in effects including lush reverbs, delays, and combinations of the two. Even better, tap tempo allows you to quickly sync delay effects with the tempo of your music. If desired, you can route the effects return to the headphone mix while leaving them out of the main mix - perfect for giving vocalists some "comfort reverb" during tracking.

GSPre preamps based on the GS-R24 recording console

Don't be hesitant to plug your best mics into the Allen & Heath ZEDi-10FX. This compact mixer boasts GSPre preamplifiers, created by analog guru Mike Griffin and based on his acclaimed GS-R24 recording console. These preamps provide lots of headroom and very little noise, and promise to deliver pleasing warmth and depth. Whether you're podcasting or recording vocals for a music project, expect great results from the ZEDi-10FX's GSPre preamps.

Connect guitar and bass directly, no need for DI boxes

You won't need separate direct boxes to connect your guitar or bass to the ZEDi-10FX mixer, unlike many other compact mixers. The first two channels have switchable hi-Z inputs: just hit the switch and connect any electric or acoustic-electric instruments you like. Engage the low-cut filter to help reduce rumble and unwanted low frequencies, then shape your sound to taste with the 3-band EQ.

Allen & Heath ZEDi-10FX 10-channel Mixer Features:

• Rugged compact mixer with 2 mono channels, 2 stereo channels, and USB recording/playback
• Multimodel effects include reverbs, delays, and combination effects
• 4-in/4-out USB 2.0 interface supports 24-bit/96kHz audio quality
• Includes Cubase LE DAW software for Mac/PC, and Cubasis LE app for iOS
• GSPre mic preamps offer high headroom and low noise floor
• Connect guitars and basses without separate DI boxes thanks to switchable hi-Z inputs
• Low-cut filters to reduce rumble and other unwanted low frequencies
• Effective sound shaping from 3-band EQs
• Channels can be individually assigned to the headphone mix
• XLR outputs for studio monitors or powered PA speakers
• Smooth 60mm fader for controlling your main mix
• Rotary controls are secured to the faceplate with steel nuts for maximum durability

The Allen & Heath ZEDi-10FX mixer is a great value for studio or stage use.

• Type:Analog mixer with USB interface
• Channels:10
• Computer Connectivity:USB (4 x 4)
• Faders:1 x 60mm Main Mix fader
• Inputs - Mic Preamps:4
• Phantom Power:4
• Inputs - Line:4 x 1/4" TRS (2 x instrument high impedance)
• Inputs - Other:4 x 1/4" TRS (stereo paired)
• Outputs - Main:2 x XLR (left, right), 2 x RCA (stereo)
• Outputs - Other:1 x 1/4" (aux out), 1 x 1/4" (FX out/footswitch)
• Aux Sends:1 x Aux send, 1 x FX send
• Headphones:1 x 1/4"
• USB:1 x Type B
• EQ Bands:3-band EQ
• Effects:24-bit Mulit-effects, 99 presets
• Software:Cubase LE (included)
• Height:3.8"
• Width:13.1"
• Depth:10.8"
• Weight:4.85 lbs.
• Manufacturer Part Number:AH-ZEDi10FX

ZEDi-10FX Hybrid compact mixer / 4×4 USB interface with FX

ZEDi-10FX combines the robustness and hands-on control of an analogue mixer with a high quality 4 x 4 USB interface and an outstanding multi-model FX unit, making it a perfect all-round choice for musicians, recording artists and venues. Whether it’s bouncing ideas around at home, performing live or recording tracks to share on YouTube and Soundcloud, ZEDi-10FX is a versatile companion for every step of the creative journey.

The studio quality, 24-bit / 96kHz, 4×4 USB interface makes it easy to capture stunning multitrack recordings direct from the mixer to a Mac or PC without the need for any extra equipment. Featuring the new GSPre boutique preamp design, developed from the revered GS-R24 studio recording console, the ZED boasts exceptionally low noise and massive headroom, with a signature analogue warmth and depth. ZEDi-10FX includes a specially created suite of studio quality reverbs, delays and special multi-model FX, crafted by Allen & Heath’s acclaimed in-house effects aficionados. Guitarists will be pleased to know that two of ZEDi-10FX’s mono channels feature Guitar DI high impedance inputs, allowing guitars to be plugged straight into the mixer without the hassle and expense of carrying separate DI boxes.

Mixer + USB Interface

ZEDi-10FX offers the best of both worlds, incorporating a studio quality 4 in / 4 out, 24-bit/96kHz USB audio interface for hassle-free multitrack recording and playback to/from a Mac or PC, or to an iOS device using the iOS camera kit. The USB output source can be set up in several different ways to match your workflow.

Cubase LE Music Production Software Included

ZEDi-10FX comes with the acclaimed Cubase LE software. Cubase LE offers powerful yet easy-to-use software tools for audio recording, editing, MIDI sequencing and mixing. Its vast range of proven editing and sequencing tools can be used for a large range of music styles and areas of application. From singers and songwriters recording vocal lines to rock bands jamming in their rehearsal room, Cubase LE is as easy as it gets – with outstanding audio quality as well as time-saving recording and editing functionality.

Cubasis LE Mobile Music Production App

The mixer also comes bundled with the Cubasis LE app. Cubasis LE is the compact version of Steinberg’s streamlined, multitouch sequencer for the iPad, providing the same look and feel of its bigger brother Cubasis. Specially designed for quick and easy operation, Cubasis LE makes recording, editing and mixing a breeze.

ZEDFX Multi Model

ZEDi-10FX boasts a brand new suite of studio quality reverbs and delays, painstakingly crafted to enhance your recordings and performances. Special multi-model effects provide uniquely dynamic combinations of reverbs and delays.

Exceptional Audio Quality

ZEDi-10FX features an exceptional new preamp design, created by analogue guru, Mike Griffin and developed from his highly acclaimed GS-R24 studio recording console. Known as GSPre, the preamps deliver exceptionally low noise and massive headroom, and the warmth and depth that Allen & Heath’s analogue range is famous for. For tonal shaping, the precise 3 band MusiQ EQ controls have been carefully calibrated for responsiveness and precision, making it easy to shape and enhance each musical source.

Road Tough

All ZED mixers are designed and built to Allen & Heath’s legendary touring grade standards to ensure a long life in the toughest environments. All channels are on individual, vertical circuit boards and all rotary controls are secured to the front panel with a steel nut to guard against impact damage.

Made for Guitars

ZEDi-10FX comes with two Guitar DI high impedance jack inputs, allowing guitars to be plugged straight into the mixer without the need for DI boxes. That’s one less piece of gear to buy, carry and set up.

It’s an Allen & Heath

Allen & Heath has been a trusted name in professional audio since 1969. The ZED technology advances, but the commitment to audio excellence and build quality endures.

Product Features

• 4 in, 4 out USB Audio Interface (24-bit/96kHz)
• Cubase LE Software included
• Cubasis LE App included
• 4 Mic / Line Inputs with separate XLR and TRS jack sockets
• 2 Stereo Inputs with TRS jack sockets
• 2 Guitar DI high impedance inputs, eliminating the need for DI boxes
• Internal FX Engine with Tap Tempo
• Lo-cut filter for cleaning up unwanted low frequency noise
• 3 band EQ for easy creative and corrective tonal shaping
• Aux out for connecting a monitor speaker or in-ear / headphone monitoring
• 60mm smooth travel fader on main mix
• XLR main outputs
• Flexible signal monitoring
• 8 LED signal metering
• 48V Phantom Power for condenser mics
• Robust internal power supply
