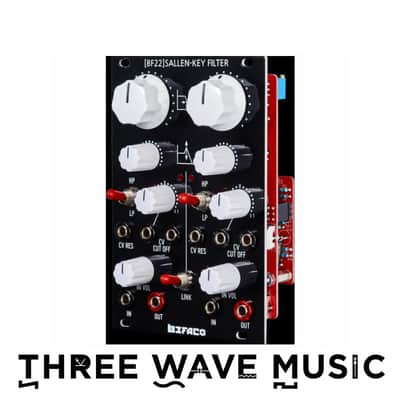

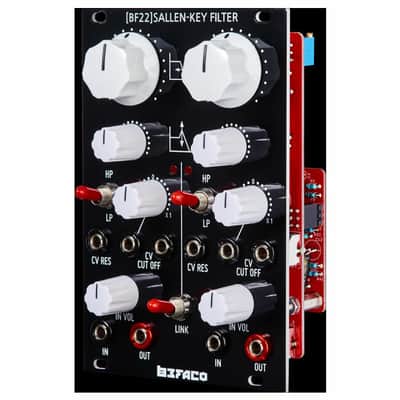

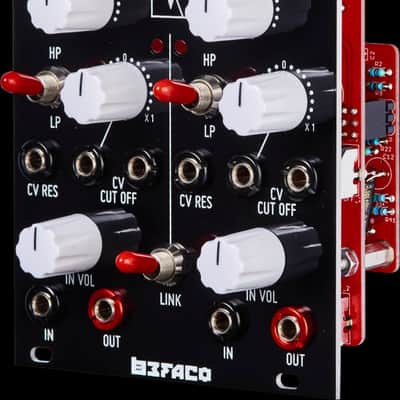

The BF-22 VCF is a dual Hi/Low-pass filter inspired by the Sallen-Key filter from the early MS-20.

DISCLAIMER: This filter brings to your modular system the character of early MS-20 sound: Kick-ass-rocking-dirty screams! It inherited not only it’s amazing sound, also MS-20 noise floor. If noise floor is an issue for you, this might not be your filter.

FEATURES

• The module features attenuverters (inverter-attenuators) as an addition to the normal CV control for Cutoff and Resonance, and offers a little more presence in the Resonance than the original. The CV control for Cut-off keeps tracking through 3 octaves.
• The ‘Link’ switch connects the input of the second unit into the output of the first.

SPECS

• Current needs: +12V: 40mA, -12V: 20mA
• Width: 17 HP
• Depth: 30mm (including power connector)
• Aluminiun, heat-treated front panel
• Designed, kits prepared and completed modules assembled in Barcelona.
