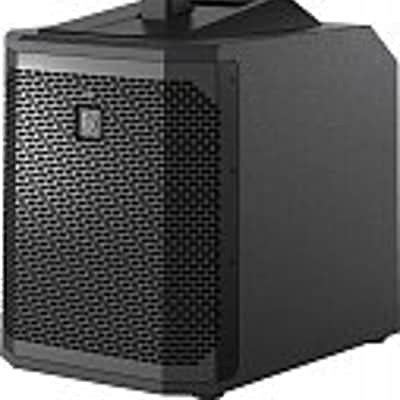

EVOLVE 30M Portable Powered Column System

Superior Electro-Voice sound quality coupled with the most complete feature set in its class – the perfect combination of performance and flexible functionality, in a very compact package

The EVOLVE 30M is designed to deliver a significant step up in all-around performance for a column system in its size/price category. It includes an eight-channel digital mixer, studio-quality onboard effects, and remote control of all audio, effects and mix functions via the next-generation Electro-Voice QuickSmart Mobile application (available via the Apple Store and on Google Play).

• Coverage (H x V): 120° x 40°
• Amplifier rating: 1000 W
• LF channel rating: 500 W
• HF channel rating: 500 W
• Crossover frequency: 200 Hz
• Connectors: 4x XLR/TRS Combo Jack Line / Mic Input
• 1x 1/4" TRS HI-Z input
• 2x XLR/TRS Combo Jack for Stereo Line Input
• 1x Stereo RCA Input
• 1x 3.5 mm Stereo Input
• 1x Wireless Stereo Bluetooth® Audio Input
• 1x 1/4" Foot Switch Input
• 1x XLR MIX OUT Output
• 1x XLR AUX OUT Output
• Enclosure
  • Sub: 15 mm plywood
  • Column: Composite
  • Pole: Aluminum
  • Grille: Steel with black or white powder coat
  • Color: Black
  • Dimensions (HxWxD): mm (in)
  • Sub: 448 x 332 x 432 (17.6 x 13.1 x 17)
  • Column: 620 x 95 x 157 (24.4 x 3.7 x 6.2)
  • Pole (2 pcs): 600 x 48 x 55 (23.6 x 1.9 x 2.2)
• Net weight
  • Sub: 34.9 lb (15.8 kg)
  • Column: 6.0 lb (2.7 kg)
  • Pole (2 pcs): 3.1 lb (1.4 kg)

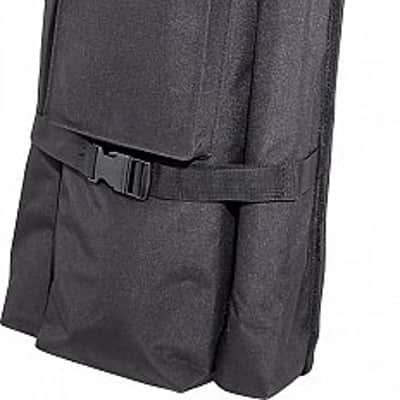

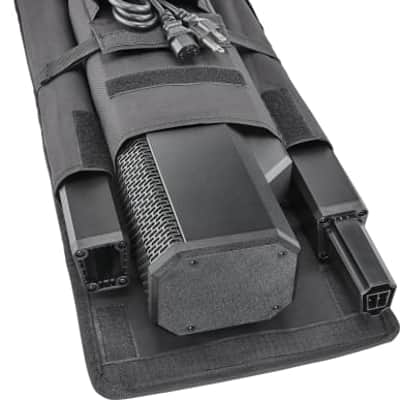

  • Bag for column and pole: 1.9 (0.85 kg)
  • Shipping weight: 53.4 lb (24.2 kg)
  • Power consumption: 100-240 V AC, 50-60 Hz, 1.5-0.6 A
