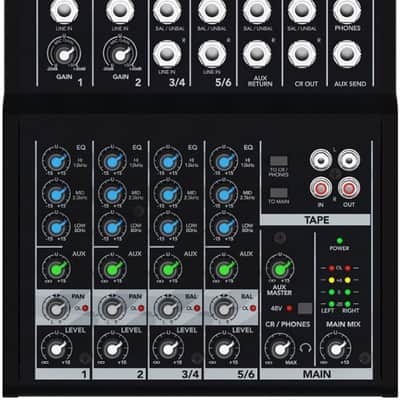

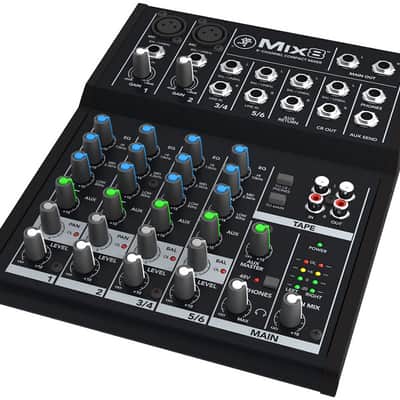

With Mackie's Mix Series Compact Mixers, they go back to the basics. Many mixers are sold with extraneous connections and bells and whistles meant for the most convoluted setups. In contrast, the Mix8 only gives you exactly what you need: 8 channels of high-headroom, low-noise performance; stereo RCA in/out; an aux send with stereo 1/4" returns; and stereo main, control room, and headphone outputs. All of this is packed into an extremely compact and rugged metal chassis small enough to slip into a laptop bag and presented at an affordable price. If you need to get down to basics, look no further than the Mackie Mix8.

Features
  • 8-channel compact mixer with proven high-headroom, low-noise performance
  • 2 mic/line inputs with studio-level audio quality preamps and phantom power
  • 2 stereo 1/4" line inputs
  • 3-band EQ on all channels with clean, precise tone shaping
  • 1 aux send with stereo 1/4" returns
  • Main L/R outputs
  • Headphone and stereo control room outputs
  • Extremely rugged, compact and portable
Specifications
  • Noise Characteristics (20 Hz - 20 kHz bandwidth, 150 Ω source impedance):
    • All outputs, master levels and channel levels off: -100 dBu
    • All outputs, master levels unity, all channel levels off: -90 dBu
    • All outputs, master levels unity, 1 channel level unity: -85 dBu
  • Distortion (THD+N), Mic Input to Main Output:< 0.01% @ +4 dBu output
  • Attenuation and Crosstalk (20 Hz - 20 kHz bandwidth):
    • Inputs to Outputs @ 1 kHz: -85 dB
    • Main Mix Off @ 1 kHz: -80 dB
  • Frequency Response (mic input to any output, gain @ unity): +0, -1, 20 Hz to 30 kHz
  • Equivalent Input Noise (EIN) (mic in to insert send out, max gain): 150 Ω termination, -125 dBu
  • Common Mode Rejection Ratio (CMRR) (mic in to insert send out, max gain): 1 kHz, better than 70 dB
  • Maximum Levels:
    • Mic Inputs (XLR): +19 dBu
    • Aux Return In: +16 dBu
    • All Other Inputs: +21 dBu
    • All Outputs: +21 dBu
  • Impedances:
    • Mic In: 3.8 kΩ
    • All Other Inputs: 10 kΩ or greater
    • Tape Out: 1 kΩ
    • Phones Out: 22 kΩ
    • All Other Outputs: 120 Ω unbalanced, 240 Ω balanced
  • Equalization: 3-band
    • High Shelving: ±15 dB @ 12 kHz
    • Mid Peaking: ±15 dB @ 2.5 kHz
    • Low Shelving: ±15 dB @ 80 Hz
    • Low Cut Filter: 18 dB/oct., -3 dB @ 75 Hz
  • AC Power Requirements:
    • Input (US): AC120V~ 60 Hz
    • Output (US): AC18V~ 600mA
  • Operating Temperature: 32-104°F
  • Dimensions (H x W x D): 2.1" x 7.8" x 9.6"
  • Weight: 2.5 lbs

ConditionBrand New (New)
Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more
Brand
Model
  • Mix8 8-Channel Compact Mixer
Categories
Electronics
  • Analog
  • Solid State
Format
  • Compact Portable
Number of Headphone Outputs
  • 1
Number of MIDI Outputs
  • 0
Number of MIDI Inputs
  • 0
Number of Digital Outputs
  • 0
Number of Digital Inputs
  • 0
Number of Analog Outputs
  • 3
Number of Analog Inputs
  • 8
Number of Channels
  • 8
