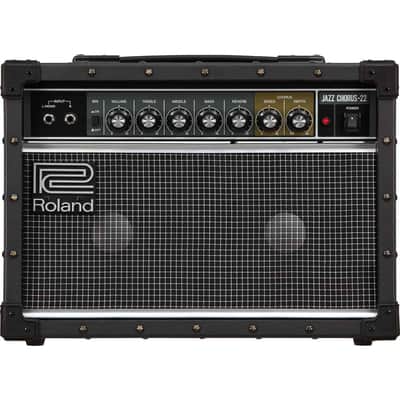

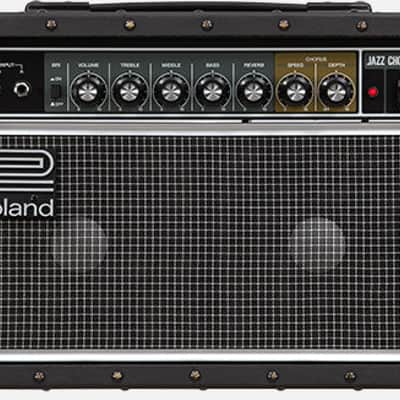

Roland JC-22 Jazz Chorus Stereo Guitar Amplifier

The Roland JC-22 delivers the legendary Jazz Chorus clean tone in an ultra-compact 30-watt stereo combo. With two custom 6.5-inch speakers, the famous Dimensional Space Chorus effect, and onboard reverb, it captures the essential JC sound in a format that travels to rehearsals, sessions, and smaller stages with ease. Stereo inputs make it an ideal partner for modelers and multi-effects processors.

Despite its compact size, the JC-22 offers a fully featured I/O complement: stereo effects loop (series or parallel), stereo line outputs for direct-to-board use, a headphone output with automatic speaker muting, and independent footswitch jacks for chorus and reverb. The Bright switch enhances upper harmonic presence for added articulation, while the middle frequency control gives players more tonal shaping than most amps in this class.

The JC-22 is equally at home as a bedroom practice amp, a recording direct source, and a full-band stage amplifier for guitar players who rely on pristine, effects-friendly clean tone. Optional FS-5L, FS-6, or FS-7 footswitches enable hands-free effect control, and the BAS-1 amplifier stand provides an ideal angled monitoring position.

Key Features

• 30-watt stereo amplifier with two 6.5-inch (16 cm) custom speakers
• Legendary Dimensional Space Chorus effect — the signature Roland JC sound
• High-quality stereo reverb with dedicated knob control
• Stereo effects loop (series/parallel) with Send and Return L/MONO + R jacks
• Stereo line out (1/4-inch L/MONO + R) for direct mixer or recorder connection
• Headphone output (stereo 1/4-inch) with automatic speaker muting
• Independent footswitch jacks for Chorus and Reverb (FS-5L/FS-6/FS-7 compatible)
• Volume, Treble, Middle, Bass, Reverb, Speed, and Depth controls; Bright switch

Technical Specifications

• Rated Power Output: 30 W
• Speaker System: 16 cm (6.5-inch) × 2
• Input L/MONO, R: 1/4-inch phone jack, nominal –10 dBu, input impedance 1 MΩ
• Effect Return L/MONO, R: 1/4-inch phone jack, nominal –10 dBu, input impedance 22 kΩ
• LINE OUT L/MONO, R: 1/4-inch phone jack
• Headphone Output: Stereo 1/4-inch phone jack
• Effect Loop Send: 1/4-inch phone jack
• Effect Loop Return L/MONO, R: 1/4-inch phone jack
• Foot Switch Jacks (Chorus, Reverb): 1/4-inch phone jack ×2
• AC IN Jack (IEC power inlet)
• Controls: Power Switch, Bright Switch, Volume, Treble, Middle, Bass, Reverb, Speed, Depth knobs; Effect Loop Switch
• Effects: Dimensional Space Chorus, High-Quality Reverb
• Power Consumption: 43 W
• Width: 461 mm (18-3/16 inches)
• Depth: 239 mm (9-7/16 inches)
• Height: 338 mm (13-5/16 inches)
• Weight: 12 kg (26 lbs 8 oz)
• What's In The Box: Owner's Manual, Power Cord
• Optional Accessories: BOSS FS-5L, FS-6, FS-7 Footswitches; BAS-1 Amplifier Stand
