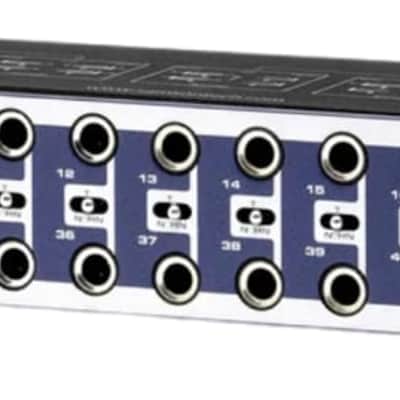

The S-Patch Plus 48-channel, fully balanced patchbay provides a convenient, central point for all your audio connections. Featuring rugged construction with 48, 1/4" phone plugs on the front and 48, 1/4" phone plugs on the rear, the S-Patch Plus provides reliable operation while maintaining a clean signal path. In addition, the S-Patch Plus features high-quality miniature toggle switches that allow each channel to be configured for either normal, half-normal, or thru operation. And because these mini toggle switches are conveniently located on the front panel, you can instantly change each channel's configuration without removing the unit from the rack. S-Patch Plus eliminates the need to reach around the back of your mixer or rack to make connections, helping you work cleaner and faster.

Product Features

• Fully balanced, extremely durable 48-point patchbay
• Normal, Half-Normal, and Through mode operation
• 3-way front panel mode switches
• 1/4" TRS connectors
• 19" rack mount chassis

Technical Specifications

• # of Channels: 24
• Dimensions: 1.73" H x 19" W x 2.62" D
• Weight: 3.8 lbs
• Inputs: 48 x 1/4"
• Outputs: 48 x 1/4"
