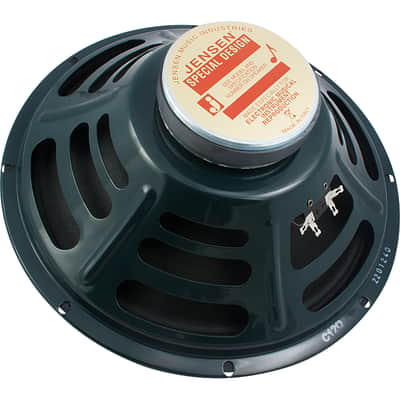

Following the heritage of the P12Q, the C12Q is one of the most versatile speakers in the Vintage range. Powerful enough for a cranked Deluxe-style amp yet balanced and warm, it surely is not lacking in bite. It has been used in both single and twin configurations by countless manufacturers including Fender®, Ampeg®, Silvertone® and Supro®, just to name a few.

Guitarist Description: Well rounded, straightforward tone with a lot of mid bite and bright highs.

• Lows: Tight
• Mids: Aggressive
• Highs: Bright
• Overdrive: Edgy

Product Measurements

Diameter: 12 in.
Voice Coil Diameter: 1.25 in.
Depth: 4.5275 in.
Outer Diameter: 12.0275 in.
Inner Diameter: 10.9055 in.
Mounting Hole Bolt Circle Diameter: 11.5551 in.
Magnet Assembly Diameter: 4.0157 in.
Magnet Assembly Depth: 1.0236 in.
Mounting Hole Diameter: 0.2559 in.
Nominal Overall Diameter: 306.00 mm
Nominal Voice Coil Diameter: 32.00 mm
Flux Density: 0.92 T
Voice Coil Winding Depth: 9.00 mm
Magnetic Gap Depth: 6.00 mm
Magnet Type: Ferrite
Voice Coil Winding Type: Copper
Voice Coil Former: Epotex
Cone Material: Paper
Surround Material: Integrated Paper
Dust Dome Material: Solid Paper
Basket Material: Pressed Sheet Steel
Surround Treatment: No
Voice Coil DC Resistance (Re): 12.00 Ω
Resonance Frequency (ƒS): 86.00 Hz
Mechanical Q Factor (QMS): 10.16
Total Q Factor (QTS): 1.99
Mechanical Moving Mass (MMS): 24.30 g
Mechanical Compliance (CMS): 137.00 µm/N
Force Factor (BxL): 8.16 Wb/m
Equivalent Acoustic Volume (VAS): 46.30 liters
Linear Displacement, maximum (XMAX): 1.50 mm
Reference Efficiency (nO): 1.20 %
Diaphragm Area (SD): 490.80 cm2
Losses Electrical Resistance (RES): 50.00 Ω
Voice Coil Inductance @ 1 kHZ (LE): 0.95 mH
Rated Power: 35.00 W
Musical Power: 70.00 W
Sensitivity @ 1W, 1m: 93.90 dB
