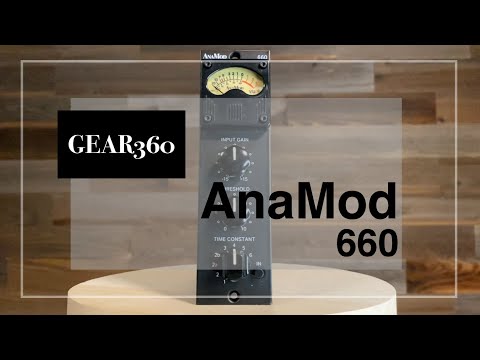

AnaMod Audio AM660

If you're looking for that legendary, thick Fairchild 660 tone without having to take out a second mortgage or maintain high-voltage vacuum tubes, this module is one of the best choices available. AnaMod uses pure, complex analog modeling (no digital DSP, no latency) to faithfully recreate the exact sonic footprint, compression curve, transformer character, and speed of the iconic Fairchild 660 variable-mu limiter.

It works wonders on vocals, acoustic guitars, bass, acoustic drums, and the mix bus, adding instant weight, warm glue, and smoothness.

Key Features

- 100% Analog Signal Path: Uses physical analog modeling circuit technology (no digital conversion or latency).

- Classic Fairchild Character: Recreates the non-linear response, variable-mu distortion curve, and time constants of the original unit.

- Time Constant Switch: Features all 6 original Fairchild 660 attack/release presets plus 2 additional modern variations.

- Standard 500-Series Format: Fits into any standard VPR Alliance / 500-series rack chassis.

Specifications

- Format: Single-space 500-Series module

- Input Impedance: 20 kΩ balanced

- Output Impedance: Less than 50 Ω

- Input Gain Range: -15 dB to +15 dB - Max Output Level: +27 dBu balanced - Frequency Response: ±1 dB from 40 Hz to 15 kHz

- Noise Floor: Better than -73 dB below +4 dBu (0–30 kHz)

Time Constants

- Position 1: Attack Time 0.2ms Release Time 0.3s

- Position 2: Attack Time 0.2ms Release Time 0.8s

- Position 3: Attack Time 0.2ms Release Time 1s

- Position 4: Attack Time 0.2ms Release Time 2s

- Position 5: Attack Time 0.4ms Release Time 2s

- Position 6: Attack Time 0.8ms Release Time 5s

- Position 7: Attack Time 0.4ms Release Time Auto, as in 660 #5

- Position 8: Attack Time 0.2ms Release Time Auto, as in 660 #6

Condition:

- Fully tested and 100% operational.

- Used exclusively in a smoke-free, climate-controlled studio environment. - Cosmetic condition is excellent.

- Currently in with a tech to ensure it's specs.

Terms:

- Price: $1,500CAD ($1,060USD); currently out of production but sold new & direct for $1,695USD

- Location: Local pickup/drop off near Kitchener/Guelph is available, drop off in the Greater Toronto Area also available; willing to ship insured at buyer’s expense if required.

- Shipping price may change based on area; inquire and I can figure it out in advance
