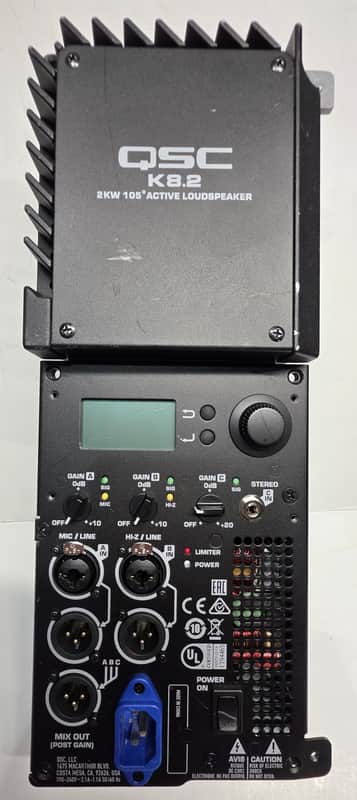

Fully working QSC K8.2 Amp Module

Can be used as replacement module for your current QSC K8.2 cabinet or as an amp to your custom built cabinet.

Dimensions:

5.25" wide ( has a small mounting tab on bottom right and top right that sticks out .5" each)

13.75" Tall

4" Mounting Depth

Specifications:
> Factory Presets and savable/recallable Scenes for commonly-used application> Multi-function digital display for control and selection of loudspeaker functions including cross-over, EQ, delay and frequency contour

Amplifier

CoolingClass D
Peak: 1800 W (LF), 225 W (HF)

Low-noise, variable speed fan

Controls

Power
3 x Level
Rotary encoder (push)
2 x selection buttons

Indicators

Monochrome LCD Display 1.75-inch x 1-inch (45 mm x 25.4 mm)
2 x Power LED (front and rear)
3 x Input Signal LED
Input A Mic selected LED
Input B Hi-Z selected LED
Limiter active LED

Connectors

2 x locking XLR/F ¼????? combo (Mic/Line Input and Hi-Z/Line Input
1 x 3.5 mm TRS (Stereo Input)
2 x XLR/M (Loop-thru Output)
1 x XLR/M (Mix Output)
1 x locking IEC power connector

AC Power Input

Universal power supply 100 ? 240 VAC, 50 ? 60 Hz

AC Power Consumption 1/8th Power2100 VAC, 2.1 A / 120 VAC, 1.9 A / 240 VAC, 1.1 A

AC Power Consumption - Standby.2A at any voltage

Thanks For Looking !   ! !
