Gibson Les Paul / Telecaster Deluxe Wiring Harness – CTS 500K Push/Pull – Orange Drop Caps

Gibson Les Paul / Telecaster Deluxe Wiring Harness – CTS 500K Push/Pull – Orange Drop Caps

$75 – FREE SHIPPING

Upgrade your Gibson Les Paul, Fender Telecaster Deluxe, or compatible 2-humbucker guitar with this pre-wired harness featuring quality CTS components, Orange Drop capacitors, and versatile push/pull switching.

This harness is pre-owned but has NEVER been installed and is ready for installation with compatible 4-conductor humbuckers.

Expanded Push/Pull Switching

The two CTS 500K push/pull tone controls provide multiple pickup configurations, giving you considerably more tonal flexibility than a traditional 2-volume/2-tone harness:

• Both Push/Pulls DOWN: Full humbucker mode for both pickups
• Both Push/Pulls UP: Parallel mode for both pickups
• Neck UP / Bridge DOWN: Single-coil mode
• Neck DOWN / Bridge UP: Single-coil mode

Go from the full, powerful sound of traditional humbuckers to brighter and more articulate single-coil-style tones without adding additional switches to your guitar.

Quality Components

The harness is hand-wired and features:

• (2) CTS 500K long-shaft split-shaft volume pots
• (2) CTS 500K long-shaft split-shaft push/pull tone pots
• Traditional 2-volume / 2-tone configuration
• (2) .022µF Orange Drop capacitors

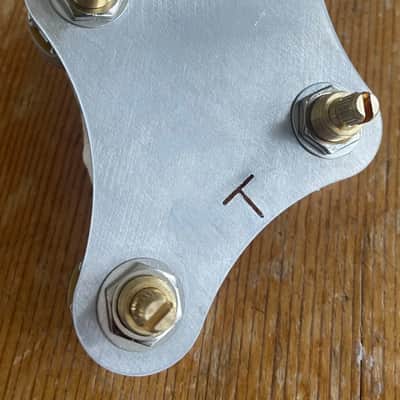

• 3/8” diameter / 3/4” long pot bushings
• Vintage-style pull-back cloth wiring
• 7-strand, 22-gauge grounding wire
• Hand-wired construction

The .022µF Orange Drop capacitors provide a useful tone-control range while retaining definition and upper-end detail. The wiring configuration is designed to help maintain clarity as the volume is rolled back, reducing the dark or muddy character that can occur at lower volume settings.

Condition

Pre-owned but NEVER installed.

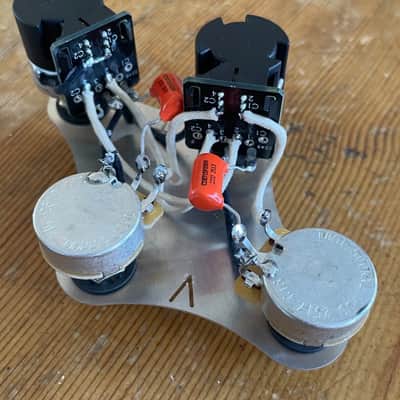

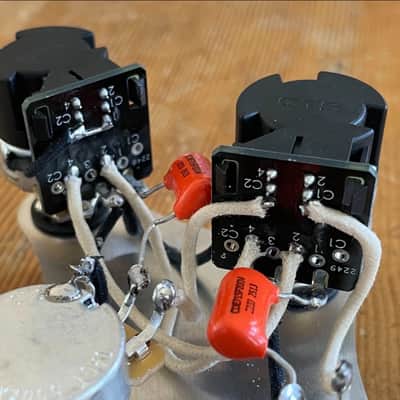

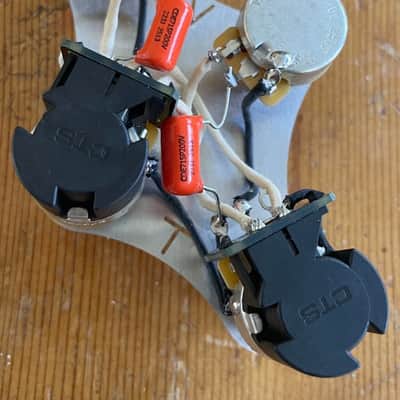

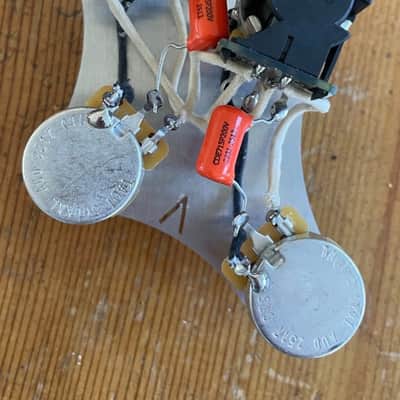

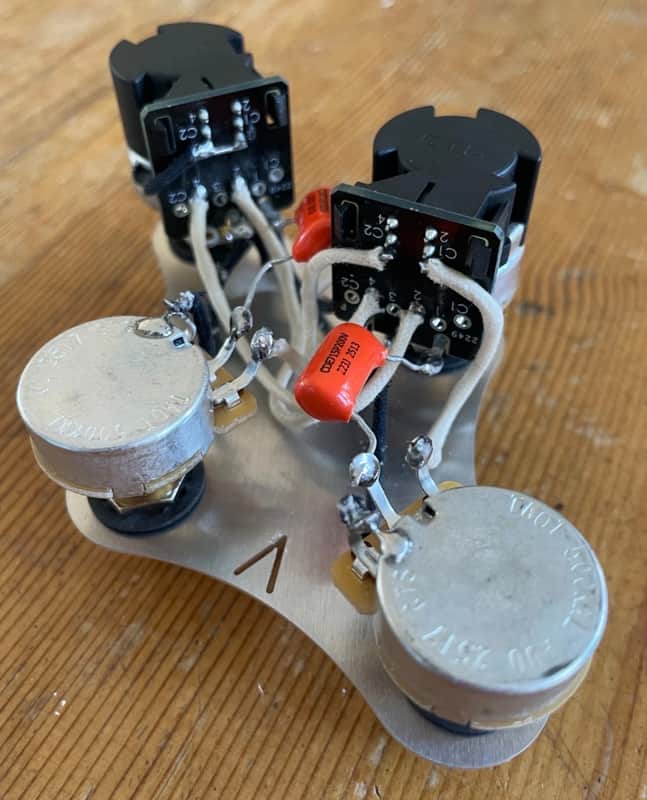

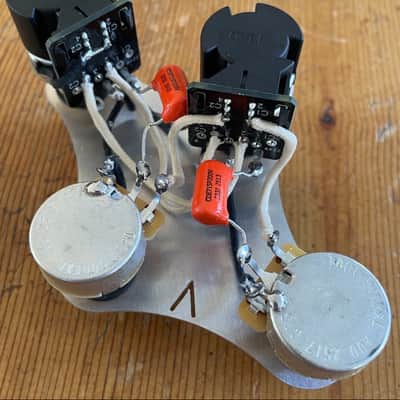

The harness is completely assembled and wired as shown in the photos. You will receive the actual wiring harness pictured.

Please review the photos carefully for the exact components, wiring, solder connections, and overall condition.

Fitment – Please Read

This harness uses CTS LONG-SHAFT pots and is intended for compatible Gibson Les Paul, Fender Telecaster Deluxe, and other 2-humbucker / 2-volume / 2-tone applications.

Push/pull functions require compatible 4-conductor humbuckers.

Because guitar specifications can vary, please verify pot shaft length, control-hole spacing, knob compatibility, cavity clearance, and pickup wiring before purchasing.

$75 – FREE SHIPPING

A great way to add CTS 500K controls, Orange Drop capacitors, and multiple humbucker/single-coil/parallel tonal options to your guitar without having to source and wire all the individual components yourself
