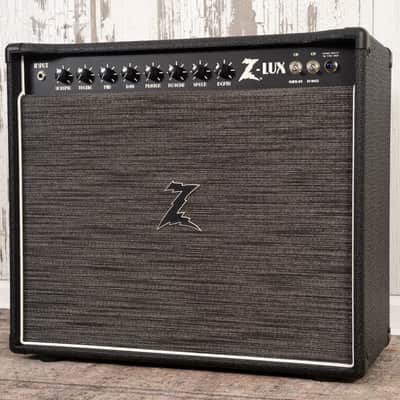

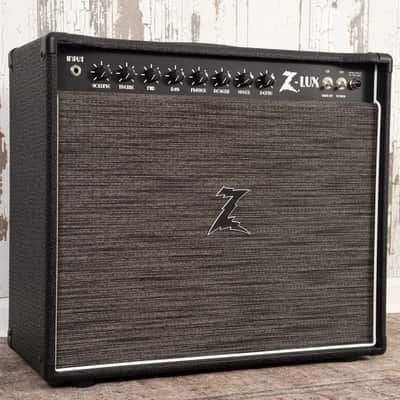

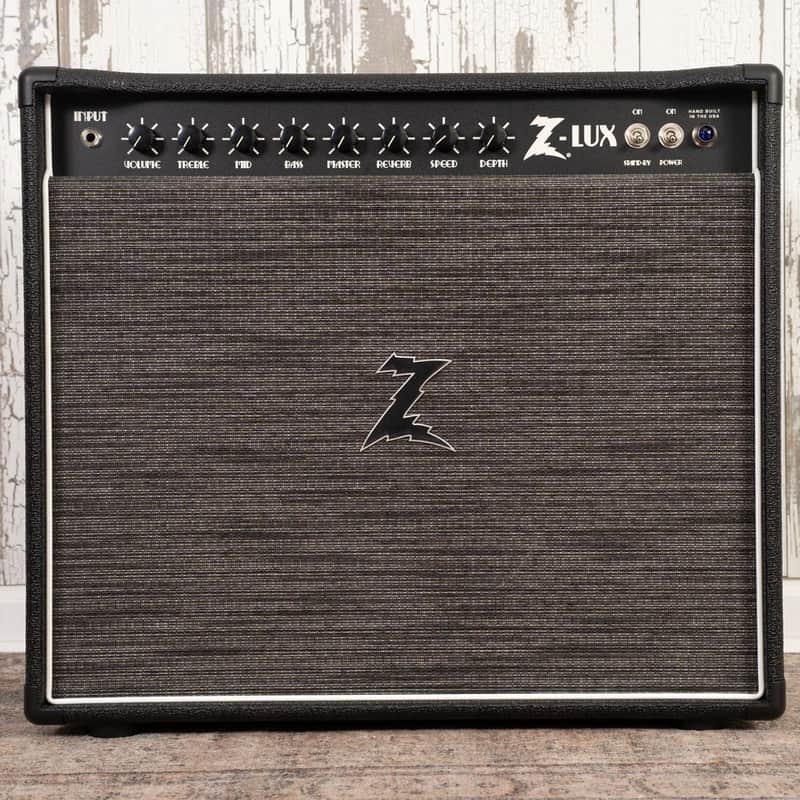

Dr. Z Z-Lux 1x12" Combo

Z-LUX

The Z-LUX delivers the big, warm vintage tone of a true hand-wired tube amp. It’s a design that not only integrates favorite features from Dr. Z's entire line but also includes new ones of its own. Half/Full power switch, foot-switchable boost, master volume, reverb, tremolo, you name it…this amp has it. Every component was painstakingly selected to achieve the highest quality standards for both sound and durability.

The Z-LUX starts with the front end of the MAZ design and uses a combination of hand-rolled Jupiter caps, Mallory 150s, and classic Orange Drop caps specifically selected for each stage of the preamp. Dr. Z also included the foot-switchable EQ bypass boost but softened it a bit for a smoother overdrive. The power section is driven by 6V6 power tubes, switchable between 2 tubes (20 watts) or 4 tubes (40 watts) via the half-power switch. The tube driven tremolo will give you deep pulsating swells of rich tone you can’t get from an effects pedal and when combined with the lush, tube driven spring reverb… you won’t be able to put the guitar down. The sound of this amp will push your creativity to the max!

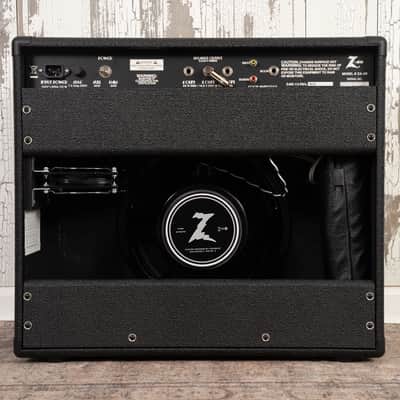

Dr. Z completely re-designed the build and makeup of his cabinets for this amp and was able to achieve stunning full-bodied sounds in a sturdy yet ultra-light combo cab weighing in at a back-saving 42 lbs! He also teamed up with Eminence to design a new 12” speaker. The new Z-12 is an American-voiced 50 watt speaker designed to complement the vibrant tones of the Z-LUX. Designing a cab and a speaker at the same time allowed for complete control over the quality of every component, truly achieving vintage tone for today.

• Power: 20/40 Watts
• Output Tubes: 4 – 6V6 (cathode biased)
• Preamp Tubes: 5- 12AX7, 1 – 12AT7
• Rectifier: Solid State

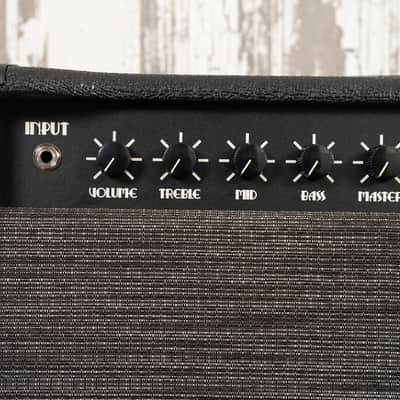

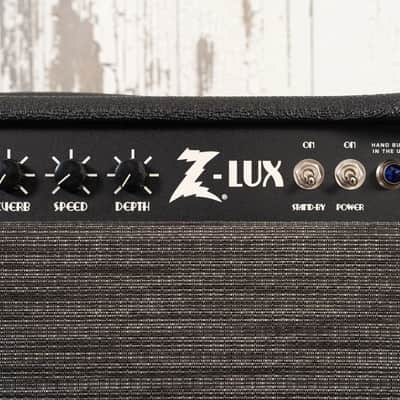

• Controls: Volume, Treble, Mid, Bass, Master, Reverb, Speed, Depth

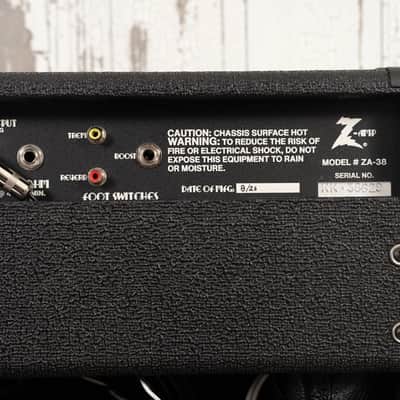

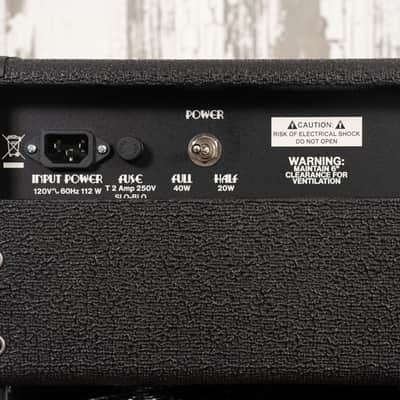

• Features: 20/40 Half/Full power switch, foot-switchable reverb, tremolo, and variable boost (Footswitches supplied)
• Speaker: Dr. Z / Eminence 50 watt 12 "
