Professional sounding, high-quality audio meets affordability with the Adam Audio T5V. Designed with the home-studio in mind, the Adam Audio T5V dimensions ideally complement the bedroom setup. The compact build however, in no way compromises Adam Audio’s high-quality sound. Equipped with U-ART accelerated ribbon tweeter, calibrated using the High Frequency Propagation (HPS) waveguide, the two-way nearfield monitor boasts incredible clarity. This custom-made technology, as also used by Adam’s flagship S Series monitor, allows the Adam Audio T5V pair to disperse across a wide area, with a high-resolution going up to 25 kHz. The uniformed dispersion of high frequencies provides an incredibly wide sweet spot that allows you to work from a range of listening positions.

The T5V comes with new DSP technology and is powered with two D-Class amplifiers, one that controls the 5" woofer at 50W, the other at 20W, producing SPLs of up to 106 dB per pair. This gives the monitor a deeper image, offering lower frequency response and providing greater detail in your sound. The T5V compact dimensions give it an unbeatable cost/performance ratio. Should you need more bottom end, the T5V is compatible with the .

• Two-way active near-field design: Optimized for small control rooms, combining a 5-inch polypropylene woofer with ADAM’s U-ART 1.9″ accelerated-ribbon tweeter mounted in an HPS waveguide for an exceptionally wide, even sweet spot.
• Linear, extended response: 45 Hz – 25 kHz (-6 dB) for full low-end reach and airy highs.
• Plenty of clean headroom: up to ≥ 106 dB SPL per pair at 1 m—loud enough for mix decisions without distortion.
• Bi-amped Class-D power: 50 W RMS for the woofer and 20 W RMS for the tweeter (70 W total) deliver tight dynamics with high efficiency.
• DSP-controlled 3 kHz crossover: Rear-panel EQ switches (±2 dB high-shelf > 5 kHz & low-shelf < 300 Hz) and gain/input-sensitivity trim let you tailor the speaker to your room.
• Rear-firing bass-reflex port: Beveled cabinet keep the footprint compact (11.7″ × 7″ × 11.7″) while extending low-frequency output.
• Flexible connectivity: balanced XLR and unbalanced RCA analog inputs with 10 kΩ / 20 kΩ impedance accommodate pro interfaces, mixers, or consumer gear.
• Built-in safeguards: thermal, over-current, and over-voltage protection plus 0.5 % THD (> 80 Hz) ensure reliable, low-distortion operation.
• Lightweight & portable: only 5.7 kg (12.6 lb) per monitor—easy to reposition or take on the road.

• General Data
  • Max. Power Consumption: 132 W
  • Weight: 12.6 lbs
  • Height x Width x Depth: 11.7″ x 7″ x 11.7″
• Audio Input Connectors
  • Analog: XLR / RCA
  • Input Impedance: 10 kOhm / 20 kOhm
• Acoustics
  • Frequency Response: 45 Hz – 25 kHz (-6 dB)
  • THD > 80 Hz: 0.5 %
  • Max. SPL per pair at 1 m: ≥106 dB
  • Crossover Frequency: 3 kHz
• Drivers
  • Basket Diameter: 5″
  • Voice Coil Diameter: 1″
  • Cone Material: Polypropylene

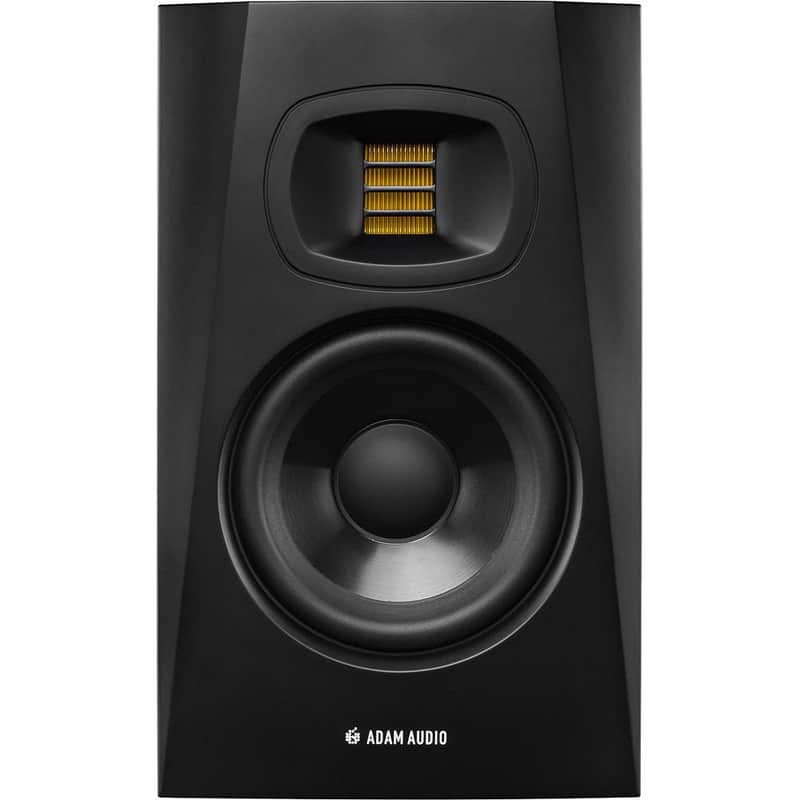

• Adam Audio T5V Studio Monitor
• Power Cable
• Quick Start Guide
• Manufacturer Warranty
