Toshiba Micro System 15 Series

Reverb wouldn't allow us to post the closeup pictures of all the units

INCLUDED with this sale :

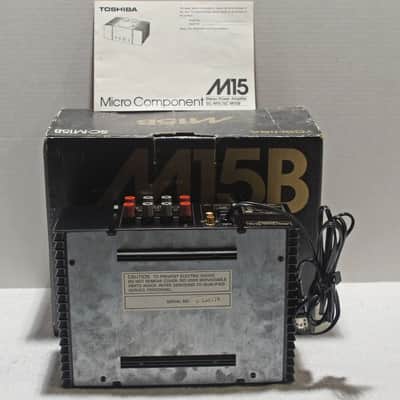

SC-M15B - power amplifier

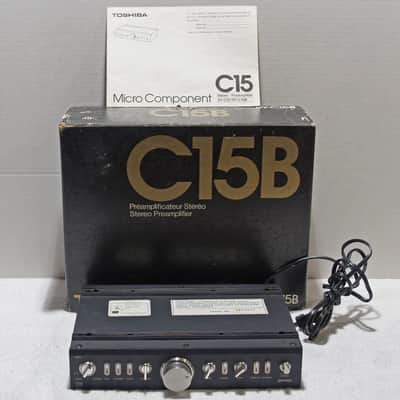

SY-C15B - preamplifier
ST-F15B - FM tuner
PC-D10B - Tape deck
TOSHIBA original packaging boxes & manuals for all four items.

The cassette tape unit runs but will not play the tape - indications are replacement belt(s) will need to be aquired.

Toshiba's top of the line System 15 micro components were introduced in 1978. Aurex was Toshiba's brand name for the Japanese market, but these micro components were sold with both Toshiba or Aurex logo worldwide. With less than half the size of usual components they set new performance level, in the meantime being elegant in appearance.

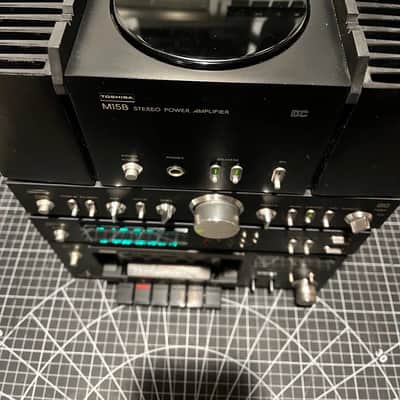

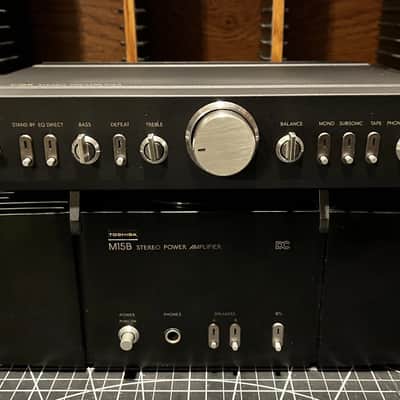

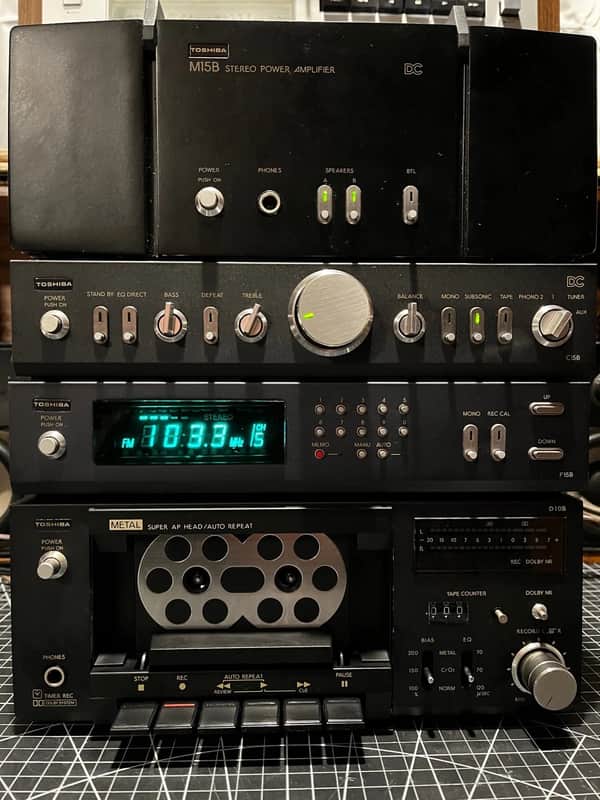

The components of the Micro System 15 are:

SC-M15B - power amplifier (DC) incorporating a large toroidal power transformer, 40 W/ch (20 to 20,000Hz, 8 ohms), THD: less than 0.02%, Frequency response: 0Hc (DC) to 70,000Hz, BTL use is possible

SY-C15B - preamplifier: Dual FET DC equalizer amp and DC tone amp, THD: less than 0.01%, Frequency response: 10Hz to 100,000Hz

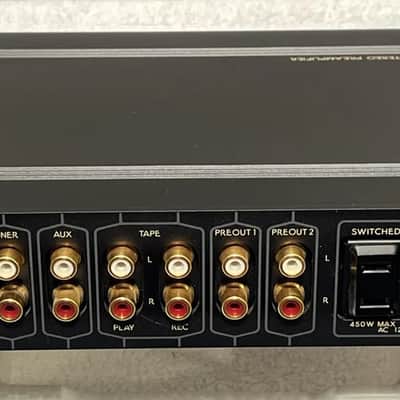

ST-F15B - FM tuner: Digital frequency synthesizer with auto/manual tuning and 10 station presets, Synthesizer accuracy: 0.0025%  Tape, two Phono inputs, aux port (see pictures)

Without a doubt, Toshiba's System 15 is the best "micro-system" produced during the last remaining moments of high-fidelity's best years. It also is the prettiest and most coherent design of all mid-size components.

The Aurex PC-D10 is a stereo cassette deck with Dolby B noise reduction, it was introduced by Aurex in 1980 with a manufacturer suggested retail price of USD $270 and discontinued 2 years later in 1982.

PC-D10B - The main features of the Aurex PC-D10 are: 2 heads, analog 3 digit tape counter, manual tape type selection with support for normal, chrome and metal tapes with additional manual equalization selection, belt driven single-capstan transport.

Typical front loading cassette deck with the cassette compartment located on the left side of the deck. Tape eject is operated mechanically and the cassette needs to be placed directly over the head block. Additionally, the heads can be easily accessed for cleaning.

Level meters used on the PC-D10 are generic digital peak reading meters. Mechanical transport controls for reliable PC-D10 transport function selection. Cue and review can be used to easily and quickly locate the beginning of a passage.

The Dolby-B system reduces tape hiss on tapes recorded on the PC-D10 by as much as 10 dB at the highest frequencies.

For undisturbed listening a jack connector for a pair of stereo headphones is supplied. Connection to other audio components for playback can be achieved by a RCA cable and recording from a source by a RCA cable.

All the original packaging and documentation is included, the box have some outside wear due to longtime storage.

Please review all the documentation, pictures & video - ask any questions or if you require additional information before buying making an offer or any bids - as with all electronics and NOS (once opened) or any media or publications due to obvious reasons.

 Toshiba Micro-Hi-Fi system is a unique setup were the last of Akai’s Surround Sound series.

 Please also note that there no other items are any tapes reels or cables other than the power cord is supplied. * major components documented, identified.

Selling AS IS - no returns due to age. Buyer to pay any shipping charges. Any return shipping will be paid by the buyer as well as subject to a restocking fee (usually 12%)  We have packed and shipped many items before with no issues. "Double Boxing" for all our vintage  equipment,  Please take that into account when checking out shipping costs, nothing is more upsetting than see your item delivered damaged.   If you do see an issue with delivered item, take pictures of the box before and after opening noting any damage and notify us ASAP.
Thanks for looking and Good Luck!
Note : Any tapes, vinyl , speakers , that maybe shown, cables or dust covers or any other accessories are not included in this listing, unless specified that said item is included, and if shown, are being used for display purposes only.
