Unrivaled Headroom, Pure Authority, and 3-Channel Versatility

The Mesa/Boogie Multi-Watt Triple Rectifier 150-Watt Head represents the ultimate evolution of the iconic high-gain amplifier platform that redefined rock and modern metal. Delivering 150 watts of Class A/B horsepower across a six-6L6 power section, this updated Multi-Watt version expands the original Rectifier's legendary aggression into a flexible, 3-channel studio and stage centerpiece.

Featuring Mesa's patented Multi-Watt™ Channel Assignable Power (Patent 7,602,927), each channel can be independently assigned to run either 2 power tubes (50 Watts) or all 6 power tubes (150 Watts). Channel 1 incorporates pristine, full-bodied Clean and Pushed voicings based on the legendary Lone Star® and Mark V® circuits, while Channels 2 and 3 offer RAW, VINTAGE, and MODERN High Gain modes. Combined with patented Recto Tracking™ (Tube or Silicon Diode Rectification) and global SOLO volume boost controls, this Triple Rectifier provides unmatched tracking speed, crushing low-end impact, and pristine clean headroom.

The Sanctuary Perspective: There is simply no substitute for the sheer acoustic displacement and note-tracking speed of a Triple Rectifier running at 150 watts. The Multi-Watt update is the sweet spot for this circuit—dropping Channels 1 or 2 down to 50W allows you to sweeten the power section feel for blues and hard rock, while switching Channel 3 to 150W Diode tracking gives you tight, instantaneous low-end punch for aggressive styles. This pre-owned unit (SN: R-053606) is in Excellent condition and includes its original footswitch, cable, and fitted cover.

Technical Specifications & Operational Attributes:

• Model: Mesa/Boogie Multi-Watt™ Triple Rectifier® Head

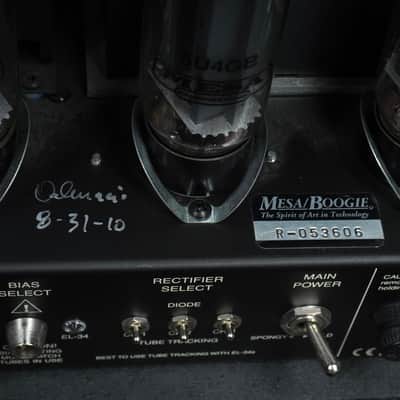

• Serial Number: R-053606 (Actual unit pictured)
• Build Location: Handcrafted in Petaluma, California
• Power Output: Multi-Watt™ 50 or 150 Watts (Channel Assignable)
• Power Amp Topology: Class A/B with 6x Mesa 6L6 Power Tubes (Fixed Bias with 6L6/EL34 Select switch)
• Preamp Tubes: 5x Mesa 12AX7 Preamp Tubes
• Rectifier Array: Selectable and Channel Assignable Dual Rectification (3x 5U4 Rectifier Tubes or Silicon Diodes) with Patented Recto Tracking™ (Patent 7,193,458)
• Power Modes: Bold / Spongy (Variac) Power Switch for output section feel control
• Channel Array: 3 Fully Independent Channels with 8 Style Modes:
  • Channel 1: Clean or Pushed (Lone Star/Mark V voiced)
  • Channel 2: Raw, Vintage High Gain, or Modern High Gain
  • Channel 3: Raw, Vintage High Gain, or Modern High Gain
• Global Master Controls: Output Level Control and Footswitchable SOLO Level Boost (Active when FX loop is engaged)
• Effects Loop: Fully Buffered Series FX Loop with Send Level control and hard-bypass capability
• Switching & Connectivity: External switching jacks for Channels 2, 3, FX Loop, and Solo; Tuner Out with footswitchable Mute; Slave Out with Level Control
• Speaker Outputs: One 16-Ohm, Two 8-Ohm, and Two 4-Ohm jacks

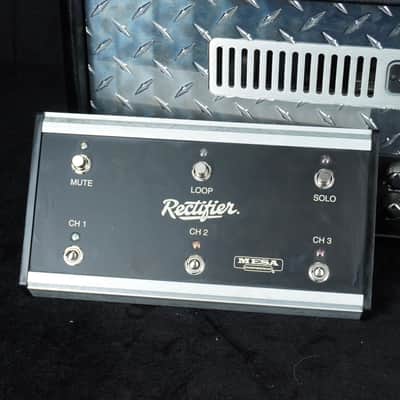

• Included Accessories: Original Multi-Button Footswitch, Cable, and Fitted Slipcover
• Chassis Dimensions: 10” H x 25 1/2” W x 9 7/8” D (48 lbs.)
• Condition Note: Pre-Owned (Excellent working and cosmetic condition; fully bench-tested by our staff)

This preowned Mesa Boogie Triple Rectifier Multi-Watt Head is in excellent condition, with the original cover and footswitch.

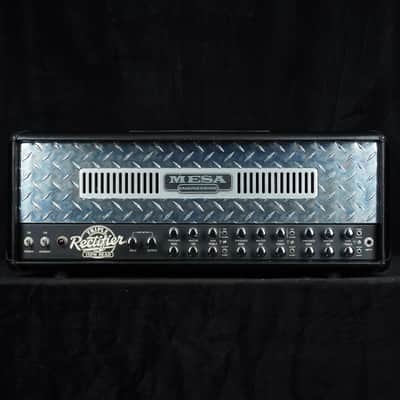

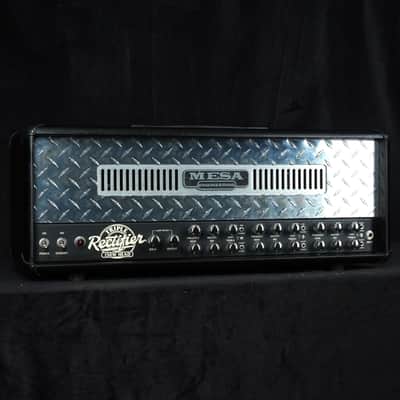

Photos are of the actual amp for sale, R-053606.

Wattage: Multi-Watt™ 50 or 150 (Channel Assignable)
Power Tube Type: 6x Mesa 6L6 (or EL-34)
Channels & Modes: 3 Channels / 8 Modes
Mode Voicings / Styles: Ch. 1 = Clean or Pushed
Ch. 2 = Raw, Vintage High Gain or Modern High Gain
Ch. 3 = Raw, Vintage High Gain or Modern High Gain
Graphic EQ / Reverb / FX / Solo FX Loop, Solo
Footswitchable Functions: Ch. 1, 2, 3, Mute, FX Loop & Solo
Weight: 48 Lbs.
Dimensions: 10" H x 25 1/2" W x 9 7/8" D
Amp Type: Tube
Chassis Material: Aluminum
Rectifier Type Selectable and Channel Assignable Dual Rectification (Tube or Silicon Diodes) with Patented Recto Tracking™ (Patent 7,193,458). Recto Tracking™ auto-matches the correct Rectifier compliment for the number of Power Tubes in use.
Rectifier Tubes: 3x Mesa 5U4
Variac Power Switch: Bold/Spongy Power Switch
Preamp Tubes 5x Mesa 12AX7
Bias Switch for Alternate Power Tubes Types: Bias Select for 6L6 or EL-34
Maintenance Free Fixed Bias: Yes
Wattage(s) Quick Reference: 50 or 150 Watts - Channel Assignable - See Power Amp Details for more information
Power Amp Details (Class & Wattage) Class A/B Power with Mesa's patented Multi-Watt™ Channel Assignable Power Amp (Patent 7,602,927) - Provides two power options that are channel assignable via three 50/150 Watt Power Switches: Choose 2 power tubes, producing 50 Watt of small block-power or all 6 power tubes producing 150 Watts of top-fuel horsepower and authority.
Convection or Fan Cooling Fan Cooled
Number of Footswitchable Channels (or Modes) Three Channels
Number of Style Modes Eight
Number of Style Modes Per Channel Channel 1 = Two / Channel 2 & 3 = Three
Types of Style Modes Per Channel Ch. 1 = Clean or Pushed
Ch. 2 = Raw, Vintage High Gain or Modern High Gain
Ch. 3 = Raw, Vintage High Gain or Modern High Gain
Channel Controls Each Channel features Independent Style Mode Switch, 50/150 Multi-Watt™ Switch, Gain, Treble, Mid, Bass, Presence, Master, Assignable Dual Rectification with Recto Tracking™ (Diode or Tube - Patent 7,193,458)
Effects Loop & Bypass Options Fully Buffered Series FX Loop w/Send Level Control - Footswitchable, Channel Assignable or True Bypassable - See True-Bypass Options below for more information
Global Output Level Control: Yes (Over all channels when activated) - See True-Bypass Options below for more information
Global Solo Level Control & Bypassable Options: Yes (Over each channel when activated) - See True-Bypass Options below for more information
True-Bypass Options: True-Bypass Switch removes FX Loop, Output & Solo Level Controls
Tuner Output: Yes (back panel) with Footswitchable Mute
External Switching Jack Options and/or Midi External Switching Jacks for Channels 2, 3 (Ch. 1 is default), FX Loop & Solo
Speaker Outputs: One 16 Ohm, Two 8 Ohm & Two 4 Ohm
Slave Output: Yes with Level Control
