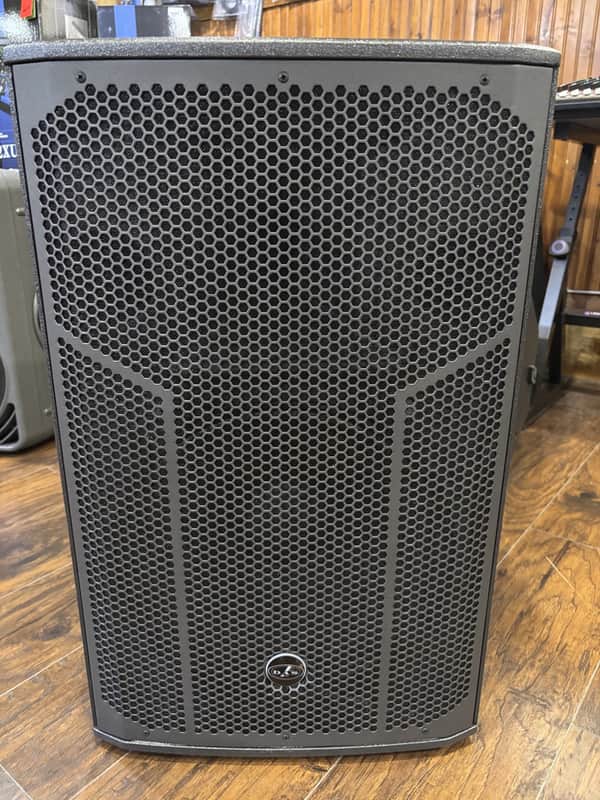

DAS Action 515A 15 Inch Powered Speaker

ACTION-515A is an active system designed to deliver a highly versatile solution, from fixed installations to the popular portable PA application. Its rotatable horn with 90º x 60º dispersion means the enclosure can be used horizontally in a fixed installation, as a stage monitor or even as front fill.

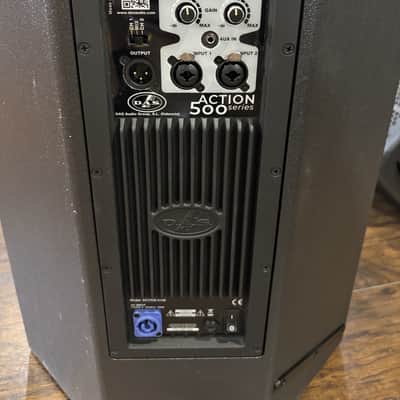

As part of our company culture, all our systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series we use the same birch plywood as our touring systems for a tight, natural warm sound found nowhere else on the market. The series’ full range of active tops is complete with two balanced XLR inputs for mic and line, an additional 3.5 mm mini jack input, and a powerCON connection.

The system has a 15MI4 loudspeaker for a more powerful low-frequency response than other tops in the series and an M-34 compression driver for high frequencies which, together with the 1000 Wpeak Class D amplifier, deliver outstanding performance. The DAScontrol™ interface uses a high-range 24-bit DSP and rear LCD screen to enable the selection of presets, EQ modes, delay, gain control and signal source mix.

Performance Frequency Range (-10 dB) 45 Hz – 20 kHz Horizontal Coverage (-6 dB) 90º Vertical Coverage 60º Maximum Peak SPL at 1 m 131 dB   Electronics and Connectors Nominal Amplifier Power (continuous) 500 W Nominal Amplifier Power (peak) 1000 W Input Type Balanced Input Impeadance 20 kohms Input Sensitivity 1.95 V (+8 dBu) Audio Signal Input Connector 2 x Female XLR AUX Input 1 x 3.5 mm Mini Jack Audio Signal Loop Thru Connector 1 x Male XLR Control DAScontrol™ AC Input Connector powerCON NAC3MPA Current Draw 230 V / 115 V 1.1 A/2.2 A Enclosure Enclosure Construction Birch Plywood Enclosure Geometry Trapezoidal Rigging M10 Rigging Points Finish ISO-flex Paint Color Black Dimensions ( H x W x D ) 720 x 445 x 385 mm
28,3 x 17,5 x 15,2 in Net Weight 23,5 kg ( 51,8 lb ) Components LF Driver 15MI4 HF Driver M-34 Horn/Waveguide BC-916 Shipping Carton Dimensions ( H x W x D ) 785 x 430 x 505 mm
30,9 x 16,9 x 19,9 in Shipping Weight 26,5 kg ( 58,4 lb )
