Description:

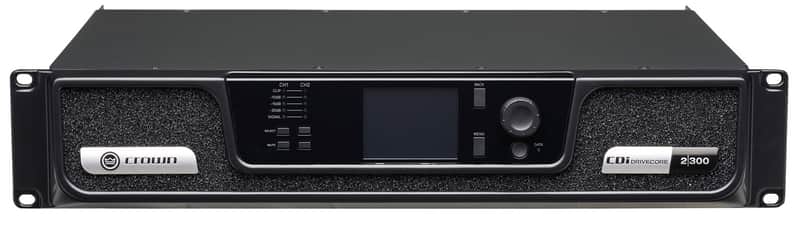

The CDi DriveCore Series is an evolution in amplification, providing an impressive mix of high-performance; rich feature set, and competitive cost. Using technology derived from our flagship Installed Sound amplifier (Crown DriveCore Install series), the CDi DriveCore 2|300 offers streamlined functionality to work in almost any small/medium sized installation such as restaurants, retail stores, and more.
Designed for ease-of-use in a variety of applications, the 2|300 is a 2-channel amp that includes network control/monitoring, high-level DSP, front-panel interface, and support for driving up to 100Vrms speaker loads without requiring a transformer. The entire CDi DriveCore line comes pre-loaded with JBL speaker tuning to help make installations quicker and easier.
Features:
DriveCore Technology: Crown’s proprietary DriveCore technology eliminates hundreds of components within each amplifier, reducing the variability of component values, increasing reliability, resulting in incredible audio fidelity from an efficient design.
Network Control and Monitoring: Through Harman’s HiQnet Audio Architect software, the CDi DriveCore can be controlled, configured, and monitored through standard TCP/IQ network.
DSP: On-board Digital Signal Processor in each amplifier allows for custom configuration
Input Router
Input Delay: Up to 1000ms
Input Parametric EQ: 8 band
Crossover
Output Parametric EQ: 8 band
Output Delay: Up to 100ms
LevelMAX™ Limiter
Direct Drive 70/100Vrms Output: Each output channel is capable of provide either 70V or 100V for high impedance applications.
Front-Panel Interface: Completely configure the amplifier using an intuitive front-panel interface.
GPIO/AUX Port: Recall presets, mute channels, monitor faults, power on/off the amplifier, and more through a combined GPIO/AUX Port.
Specifications:
Channels: 2
Sensitivity (for full rated power at 8 ohms): 0.7V RMS
Rated Power Output (per channel @ 4 ohms): 300W
Analog Input Signal to Noise Ratio (ref. rated power, 100V, 20Hz - 20kHz) at 8 ohms): > 104dB
THD (full rated power, 20 Hz - 20 kHz): 0.0035
Damping Factor (20 Hz to 100 Hz): > 1000
Frequency Response (8Ω, 20 Hz - 20 kHz): +/-0.5dB
Crosstalk (below rated power) 20 Hz to 1 kHz: > 80dB
Input Impedance (nominally balanced, nominally unbalanced): 20 kΩ balanced, 10 kΩ unbalanced
Dimensions (inches) (W x H x D) (depth not including 1.3 inch front panel protrusion): 19 x 3.5 x 12.25
Weight: 14.56 lbs (6.6 kg)
Power Supply Connector: Standard IEC type 320 inlet for detachable connector 100 – 240V~
Prix$1,798
