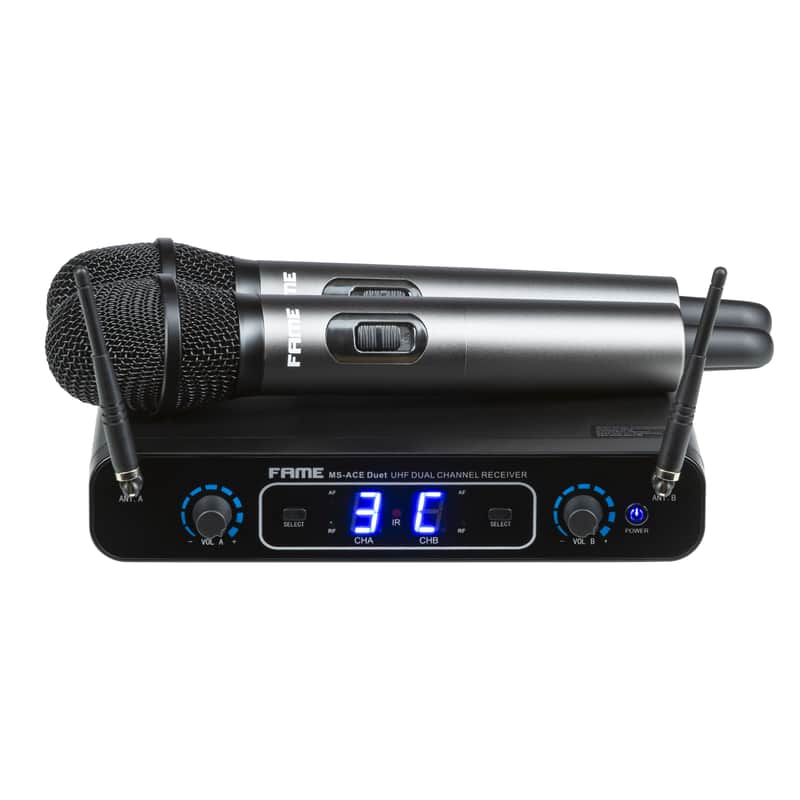

Fame MS-ACE Duet "MIC" C 826-832 MHz - Wireless Transmission Set

• UHF radio link in the 826-832 MHz range

• 16 pre-programmed, selectable frequencies; fast IR synchronization from receiver to transmitter

• 48 kHz audio sampling, pi/4-DQPSK; digital ID code against frequency interference

• Latency only approx. 3 ms - direct stage sound without noticeable delay

• Dynamic range >96 dB, S/N ratio >96 dB, THD <0.2 %

• Frequency response 30 Hz-18 kHz (±2 dB) for natural speech and vocal transmission

• Range up to 60 m (line of sight)

• Receiver with balanced XLR and 6.35 mm jack (unbalanced) outputs plus volume control & LED display

• Handheld transmitter (dynamic capsule) or bodypack transmitter (optional) with mini XLR input for lavalier/headset/instrument

• >8 h runtime per transmitter with 2×AA batteries; robust aluminum housing

• Available as a solo or duet version; ideal for concerts, schools, clubs and churches


The FAME MS-Ace Solo/Duet (Solo = 1 handheld transmitter / Duet = 2 handheld transmitters) is your uncomplicated introduction to reliable UHF radio technology in the 826-832 MHz radio range. With 16 fixed channels and fast IR synchronisation, you can be up and running in seconds - simply select a channel, press sync and you're done. The 48 kHz audio sampling in combination with pi/4-DQPSK delivers clear, interference-free transmission with a latency of only approx. 3 ms and a dynamic range >96 dB - perfect for vocals, moderation or instruments.

The receiver offers XLR and 6.35 mm jacks, so it can be connected directly to the mixing console and clearly displays status/AF/RF via LEDs. In practice, the system scores with a range of up to 60 m (line of sight) and >8 hours runtime per transmitter. Depending on the application, you can choose between handheld transmitter (dynamic capsule) or bodypack transmitter (optionally available) with mini XLR for lavalier/headset mics or guitar. The MS-Ace is available as a solo or duet and is equally suitable for concerts, schools, clubs and church applications.
