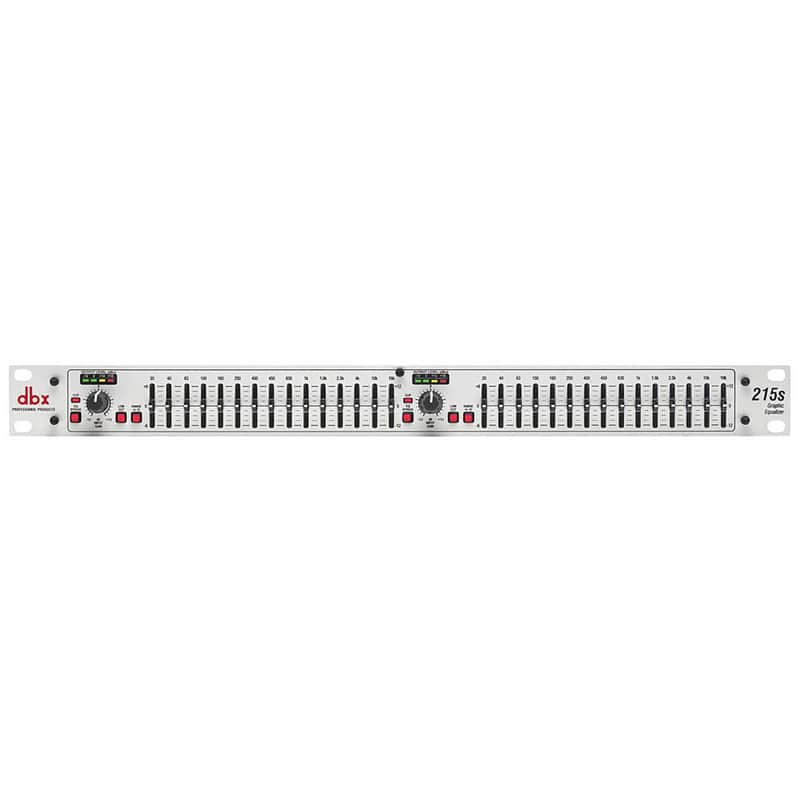

The dbx 215s dual-channel 15-band graphic equalizer provides 2/3-octave Constant Q control beyond the audible frequency spectrum. Equipped with a switchable +/-6dB or +/-12dB and an internal toroidal transformers, the 215s gives fine control and superb sound quality. Over 108dB of dynamic range.

• Type: Graphic EQ
• Displays: 4x Level; clip
• Fader length: 20 mm
• Filter: 2 x 15 band
• Range: +/-6 dB or +/-12 dB
• Inputs and Outputs: XLR;¼"stereo jack
• Dimensions W/H/D: 19"/1U
• Special Features: Fader caps
• 2/3-octave Constant Q frequency bands
• Switchable boost/cut ranges of +/-6 or +/-12dB
• 12dB/octave 50Hz low-cut filter
• Front panel bypass switch
• +/-12dB input gain range
• 4-segment LED ladders for monitoring output level
• XLR and TRS inputs and outputs
• Internal toroidal transformer
• Frequency response of <10Hz to >50kHz
• Dynamic range of greater than 108dB
• Dual-channel 15-band Equalizer
