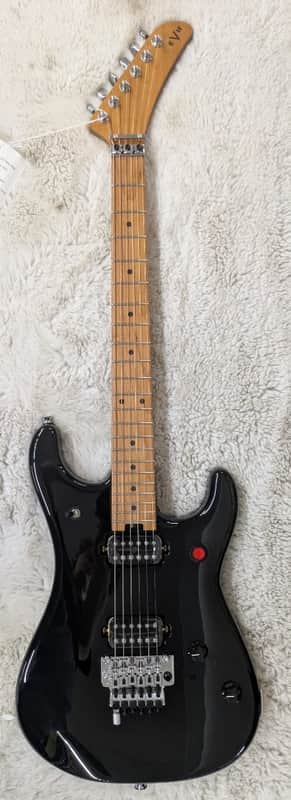

The photos shown are actual photos of the guitar you will receive.
Serial Number – EVH2501426
Weight – 7 pounds, 6.52 ounces
Engineered for speed, comfort and full-throttle attitude, the reimagined 5150® Series DX is an iconic blast from the past that blends both throwback and modernized features.
Like its predecessor, the 5150 DX features a modified Strat®-style basswood body with a deeper upper body curve. The graphite-reinforced bolt-on quartersawn baked maple neck features a comfortable modified "C" profile, hand-rubbed satin urethane back finish, heel-mount truss rod adjustment wheel and "hockey stick" headstock with EVH® logo decal. Built for smooth and speedy playability, the 12"-16" compound radius baked maple fingerboard has 22 jumbo frets and black dot inlays.
While the famed striped original had a single humbucking bridge pickup only, the all-new 5150 is outfitted with an HH pickup configuration controlled by a three-way toggle switch on the upper bout. The custom designed EVH® Wolfgang® Alnico 2 humbucking bridge pickup delivers the perfect amount of punch and articulation with sweet sustain and thick chunky rhythms in a perfectly balanced EQ curve. The EVH Wolfgang Alnico 2 humbucker neck pickup serves up no-nonsense, balls to the wall overdrive and endless sustain without skimping on articulate cleans when the volume is rolled down. A custom designed low friction volume knob creates even-volume tapering for the smoothest volume swells, while the high friction tone knob will stay in place even if accidentally bumped. An added new feature comes in the way of a lower bout kill switch, allowing you to mute your guitar for those stutter, rhythmic effects - think "You Really Got Me."
Decked out with a "dive-bomb" certified EVH-branded top-mount Floyd Rose® bridge, the locking tailpiece features fine tuners for each string and a patented EVH D-Tuna® for switching back and forth from drop-D to standard tuning in an instant.
Features
25.5" scale length
Modified Strat®-style basswood body with deeper upper body curve
Graphite-reinforced bolt-on quartersawn baked maple neck
Neck is carved and rolled to Eddie Van Halen's specifications with hand-rubbed satin urethane back finish
12"-16" compound radius baked maple fingerboard with 22 jumbo frets and black dot inlays
Convenient heel-mount truss rod adjustment spoke wheel
Direct mount EVH® Wolfgang® bridge and neck humbucking pickups
Top-mount EVH-branded Floyd Rose® bridge and R3 locking nut
EVH D-Tuna®
Three-way toggle switch, kill switch, volume control (500K EVH Bourns® Low Friction Pot) with treble bleed circuit and tone control (250K EVH Bourns® High Friction Pot)
Available in Gloss Black and Candy Apple Red Metallic with hockey stick headstock and all-chrome hardware, including the EVH-branded Gotoh® tuning machines
General
Series
5150® Series Guitars
Orientation
Right-Hand
Color
Black
Country Of Origin
Mexico
Neck
Headstock
EVH® Hockey Stick
Neck Material
Quartersawn Baked Maple
Neck Finish
Hand-Rubbed Satin Urethane
Neck Shape
EVH® Modified "C" Backshape
Neck Construction
Bolt-On with Graphite Reinforcement
Neck Thickness
.790" at 3rd Fret & .810" at 12th Fret
Fingerboard Radius
12" to 16" Compound Radius (304.8 mm to 406.4 mm)
Fingerboard Material
Baked Maple
Position Inlays
Black Dot
Side Dots
Black
Number of Frets
22
Truss Rod Nut
Heel-Mount Truss Rod Adjustment Wheel
String Nut
Floyd Rose® R3 Locking
Nut Width
1.685" (42.8 mm)
Nut Material
Floyd Rose® R3 Locking
Fret Size
Jumbo
Scale Length
25.5" (648 mm)
Body
Body
Basswood
Body Finish
Gloss Urethane
Body Shape
5150™
Body Material
Basswood
Hardware
Bridge
Top-Mount EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®
Tremolo Block
Brass
Pickup Covers
Black
Control Knobs
Black Knurled with White Indicator
Switch Tip
Black
Hardware Finish
Chrome
Tuning Machines
EVH®-Branded Gotoh®
String Trees
Floyd Rose® Retainer Bar
Strings
EVH® Nickel Plated Steel (.009-.042 Gauges)
Tremolo Arm
Floyd Rose® 1000 Series Locking
Neck Plate
4-Bolt Standard
Strap Buttons
Oversized
Electronics
Bridge Pickup
Direct Mount EVH® Wolfgang® Humbucking
Neck Pickup
Direct Mount EVH® Wolfgang® Humbucking
Pickup Configuration
HH
Controls
Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH® Bourns® High Friction Pot)
Switching
3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
Auxiliary Switching
Kill Switch
Measurements
Shipping Dimensions
4.40x15.30x42.00 IN
Shipping Weight
10.31 LB
Shipping Length
42.00 IN
Shipping Height
4.40 IN
Shipping Width
15.30 IN
Accessories
Included Accessories
Tremolo Arm, Hex Keys & User Manual
Truss Rod Wrench
2.5 mm Hex
