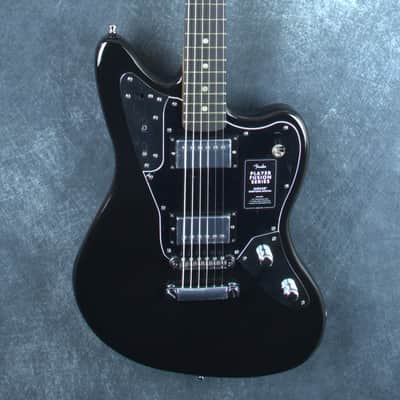

Designed for the players redefining what heavy looks like, the Fender® Limited Edition Fusion Series takes the most iconic silhouettes in guitar history and strips away everything that doesn't serve the riff. High-output humbuckers and noiseless single coils deliver the kind of tonal aggression that sits in a dense, down-tuned mix without disappearing. Built for the stage and the studio, the Fusion Series is Fender for the generation that plays loud and means it.

The Fusion Baritone Jaguar® goes lower, hits harder, and gives extended-range players a Fender platform that boldly keeps up. At 27" scale and tuned B to B, this Jaguar is purpose-built for drop tunings and the kind of low-end that sits at the foundation of a heavy mix. The classic Jaguar rhythm circuit control section gets a meaningful upgrade — it houses a “Spin-a-Split” wiring via Fender roller pots that progressively transform the humbuckers into single coils for a leaner, more cutting tone, while a TBX Tone circuit gives players more powerful tonal sculpting options. High-output humbuckers handle the heavy lifting across a 12" radius ebony fingerboard that keeps runs and bends effortless across the extended scale.

Features

• 27" Baritone Scale Length, B-to-B Tuning
• Dual High-Output Humbuckers
• "Spin-a-Split" Circuit
• TBX Tone Circuit

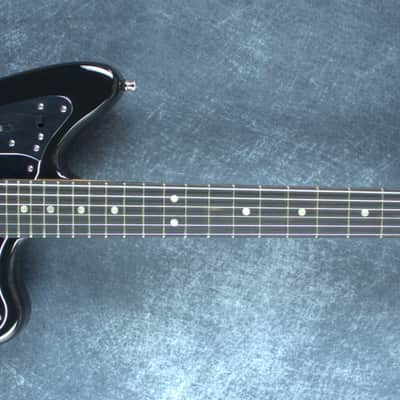

• 12"-Radius Ebony Fingerboard
• Black Hardware

General     Series Player Orientation Right-Hand Color Black Country Of Origin Mexico     Neck Neck Material Maple Neck Finish Satin Urethane Neck Shape Thin "C" Neck Construction 4-Bolt Neck Thickness .790" Neck Thickness 12th Fret .825" Fingerboard Radius 12" (305 mm) Fingerboard Material Ebony Position Inlays White Pearloid Dot - 7 mm Side Dots White Number of Frets 22 String Nut Synthetic Bone Nut Width 1.685" (42.8 mm) Nut Material Synthetic Bone Fret Size Jumbo Scale Length 27" (686 mm)     Body Body Alder Body Finish Gloss Polyester Body Shape Jaguar® Body Material Alder     Hardware Bridge Adjusto-Matic™ Bridge Cover/Tailpiece Stop Tail Pickguard 3-Ply Black Pickup Covers Chrome Control Knobs Knurled Dome Hardware Finish Nickel/Chrome Tuning Machines Deluxe Staggered Cast/Sealed Locking Strings Nickel Plated Steel (.013-.062 Gauges) Neck Plate 4-Bolt     Electronics Bridge Pickup Player II Modified Humbucker Neck Pickup Player II Modified Humbucker Pickup Configuration HH Controls Master Volume, Master TBX™ Tone Control Switching 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup Special Electronics Rhythm Circuit: Spin-a-Split Controls Split the Humbuckers
