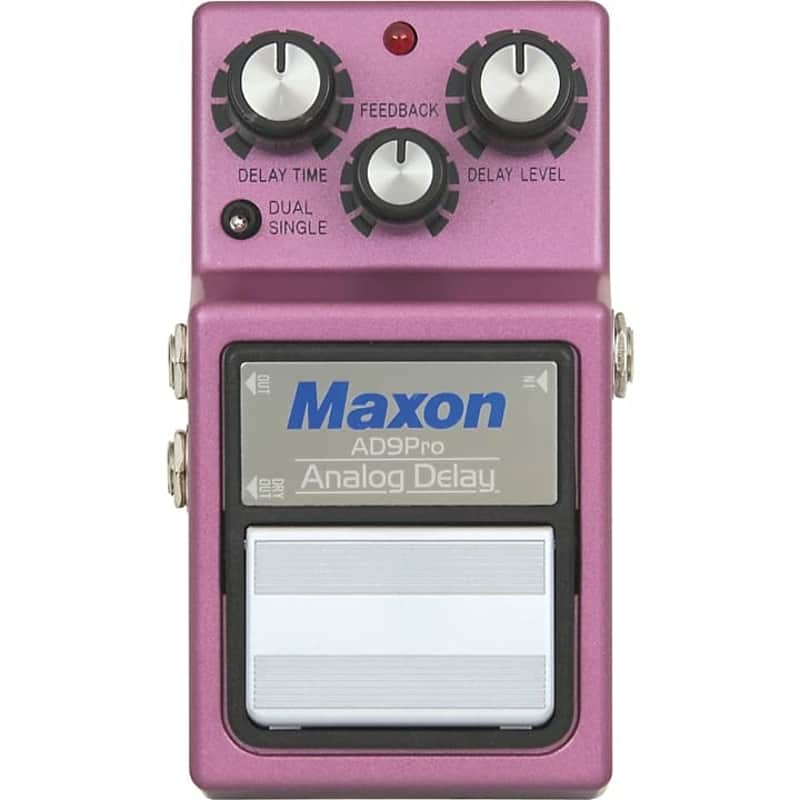

Maxon designed the 9-Series
AD-9 Pro Analog Delay Pedal to be the best sounding, most reliable
analog delay ever. Improved construction including through-hole, glass
reinforced epoxy PCB's, snap-in PCB connectors, and true bypass
switching guarantee trouble free performance. The combination of one
Panasonic MN3205 BBD IC and one Signetics NE570 compander provides warm
yet crystal-clear delay time with adjustable repeats and zero clock
noise.The AD-9 Delay Pedal captures all the classic sounds of
the most sought-after vintage analog delay units. With 10-300
milliseconds of variable delay time provided by a Panasonic MN3205 (low
voltage BBD IC, now out of production), the AD-9 Analog Delay can
produce a wide variety of time-delay effects, from Rock-A-Billy slapback
echo to erratic, runaway delays. The Maxon AD-9's Repeat control
provides additional spatial effects by adjusting the repeats from one to
infinity to emulate various room sizes. Calibrated for
self-oscillation, the AD-9 is an analog delay pedal capable of "UFO
landing" effects as well as many other bizarre sounds limited only by
your imagination.The AD-9 stompbox's Delay Level control adjusts
the mix between dry and effected signals, allowing the delayed signal
to sit back behind the input signal to add subtle ambience or right up
in front for greater impact. Stereo outputs provide a variety of signal
routing options for use with multiple amplifier setups or mixer
channels. All sounds are provided with zero clock noise thanks to one
Signetics NE570 compander and true bypass switching using a 4PDT
mechanical switch.Since their introduction in the early 1980's,
Maxon 9-Series designs have achieved a legendary, almost mythical status
with pedal connoisseurs around the globe. The reasons for this are
simple - superior sound quality and innovative features that offer a
seamless interface between performer and performance - nothing more,
nothing less. 20 years later this rule still holds true. Now available
with improved circuitry including true bypass switching, Maxon 9-Series
effects remain the standard by which all others are judged.
Features
True bypassCrystal clear delayAdjustable repeatsZero clock noiseDry/effect mixStereo outputsInput Impedance: 500kOhmsOutput Impedance: 10kOhms or lessResidual Noise: -100dB or less (IHF-A)Delay Time: 20mSec - 450mSecEquivalent Input Noise: -116dB or less (IHF-A)Control: Delay Time, Feedback, Delay LevelSwitch: Single/Dual Mode, EffectOperating Voltage: 9VPower Consumption: Delay Time Min. 39mA/DC.9V, 38mA/DC.10VDimensions (WxHxD): 74" x 54" x 124"Weight: 580g (including battery)Battery: 9V battery (6LR61 or 6F22) x 1 or Maxon AC adaptorBattery
Life: mangenese dry battery more than 2 hours, 25deg C/ 77 deg F
(Panasonic 6F22NB), alkaline dry battery more than 8 hours 25deg C/
77deg F (Panasonic 6LR61G)Options: Maxon AC Adapter
