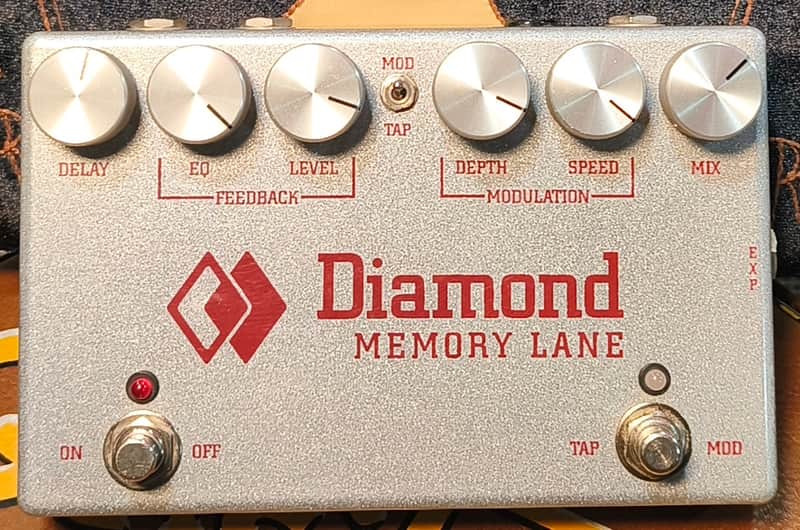

The Diamond Memory Lane (specifically the STM32 version) is an advanced delay pedal combining vintage analog warmth with modern digital reliability. It features Diamond’s exclusive digital Bucket Brigade Delay (dBBD) architecture, offering up to 2.4 seconds of richly modulated repeatsThe technical and performance specifications for the Diamond Pedals Memory Lane (STM32 Edition) are detailed below.Technical SpecificationsInput Impedance: > 1 MΩOutput Impedance: < 10 kΩDelay Range: 25ms to 2.4 seconds (2400ms)Switching: Buffered Bypass with optional trailsPower Requirement: 9–15V DC, center-negative, 2.1mm barrel jackCurrent Draw: 45mA to 50mA @ 9V DCDimensions: 122 x 67 x 40 mm (4.8 x 2.64 x 1.58 inches)Weight: 300g (0.66 lbs)Core Audio FeaturesArchitecture: Digital Bucket Brigade Delay (dBBD) technology.Signal Path: Blends analog companding and anti-aliasing filters with an STM32 ARM processor.Dry Signal: Kept analog and mixed in parallel to retain original dynamics.Operating ModesMLjr Mode: Classic fixed-rate digital delay with silent tempo changes.Vintage Mode: Warm, saturated repeats mimicking classic variable-rate analog BBD pedals.Galloping 2-Head: Rhythmic, dual-head delay pattern.Ambient 3-Head: Cascading, expansive repeats that diffuse into a reverb-like soundscape.Performance ControlsTap Tempo: Dedicated footswitch featuring subdivisions (quarter, eighth, dotted eighth).Doubler Feature: Holding the Tap switch activates a momentary or latching tempo doubler.Geezer Mode: Optional startup mode that disables secondary footswitch functions for simplified useShipping Worldwide full insired by Fed Ex or Ups 🚀
Precio€550
+ €50 Envío
