About this listing
Dynacord's L Series power amplifiers are engineered to provide sound reinforcement for demanding live music applications. They are ideal for performing musicians and production companies providing sound reinforcement for live performances in venues like music clubs, community hall events, performance centers, and sports venues.
The L Series power amplifiers comprise a powerful linear amp design with a best-in-class, tour-grade feature set that brings real professional performance to a new, more accessible price point. Like all Dynacord amplifiers, the L series offers high-quality components and truly professional processing power and performance characteristics. Their engineering and applied technologies enable exceptional sound quality with plenty of headroom. Equipped with an extremely robust power supply and a powerful, linear amp design, flawless operation is guaranteed, even in the most demanding environments. A sophisticated protection circuitry ensures safe, reliable operation under all conditions.
An onboard DSP includes multi-band PEQs, crossovers, limiters, and delay per channel. It also has true channel grouping control with extra DSP capabilities like PEQ, GEQ and delay for each group. L Series are also equipped with advanced FIR-Drive, a premium feature normally reserved for the highest quality tour-grade DSPs. It optimizes original factory loudspeaker settings, yielding a level of performance unheard of at this price point.
Features:
Rock solid amplifier technology engineered in Germany
Extremely powerful, proven audio performance
Engineered for constant stability at 2 ohms
Sophisticated protection circuitry always protects the amplifiers and connected loudspeakers
High-performance bulletproof voltage handling
On-board DSP includes multi-band PEQs, crossovers, limiters and delay per channel
Intuitive, powerful control software makes configuration and real time control easy, up to 16 amp channels can be controlled and monitored simultaneously
User profiles can be setup to ensure security of the system
Advanced FIR drive to optimize original factory loudspeaker settings yielding a level of unparalleled performance
True channel grouping control with extra DSP capabilities like PEQ, GEQ and delay for each group

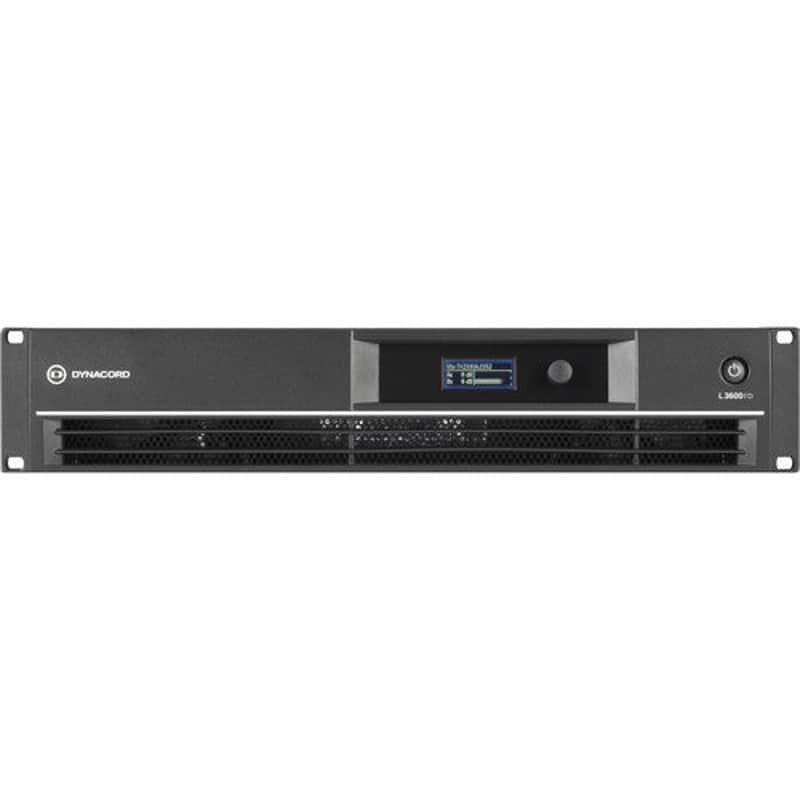

L3600FD Specifications
Load Impedance: 2Ω, 2.7Ω, 4Ω, 8Ω
Maximum Output Power, Single Channel: 2Ω: 3200W; 2.7Ω: 2700W; 4Ω: 1800W; 8Ω: 950W
Maximum Output Power, Dual Channel: 2Ω: 3000W; 2.7Ω: 2500W; 4Ω: 1700W; 8Ω: 900W
Maximum Output Power, Bridged: 4Ω: 6000W; 8Ω: 3400W
Maximum RMS Voltage Swing, THD = 1%, 1kHz: 90.6V
Voltage Gain ref. 1kHz: 32.0dB
IMD-SMPTE, 60 Hz, 7 kHz: <0.1%
DIM 30: <0.05% (3.15 kHz, 15 kHz)
Maximum Input Level: +21dBu
Crosstalk: < -80dB (ref. 1 kHz, at 100 W/4 Ω)
Frequency Response: 10 Hz to 21 kHz (±1 dB)
Input Impedance, active balanced: 20kΩ
Signal-to-Noise Ratio (A-weighted): >109dB
Output Noise, A-weighted: <-68dBu
Output Stage Topology Class: H
Power Requirement: 120 V or 100 V; 50 Hz to 60 Hz (factory configured)
Power Consumption: 850 W (⅛ Maximum Output Power @4Ω)
Protection: Audio limiters, high temperature, DC, HF; Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay
Cooling: Front-to-rear, 3-stage fans
Safety Class: I
Available Color: Black
Height: 88mm (3.46")
Width: 483mm (19.02")
Depth: 462.4mm (18.2")
Weight Net: 18.2kg (40.12 lbs)
Signal Processing: FIR Filters, Audio Limiters; Output delay per channel; 31 band GEQ per channel; PEQ per channel; Load impedance
Mains Fuse: 120 V/100 V: T20AH
Operating Temperature Range: +5°C to +40°C (40°F to +105°F)
Total Harmonic Distortion: <0.05% (1200 W/4 Ω MBW = 80 kHz, 1 kHz)
PriceC$2,709
