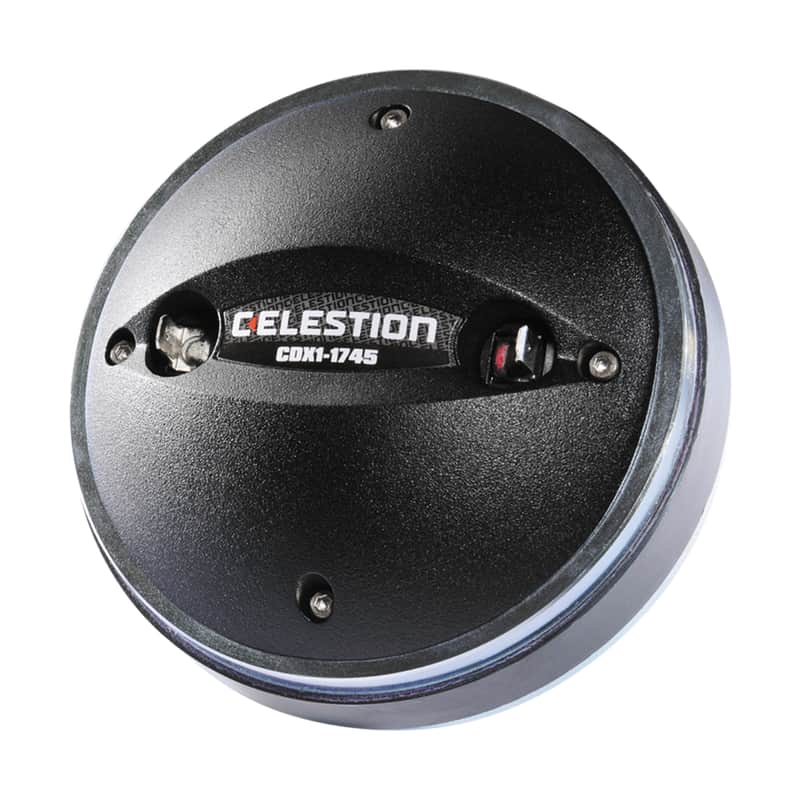

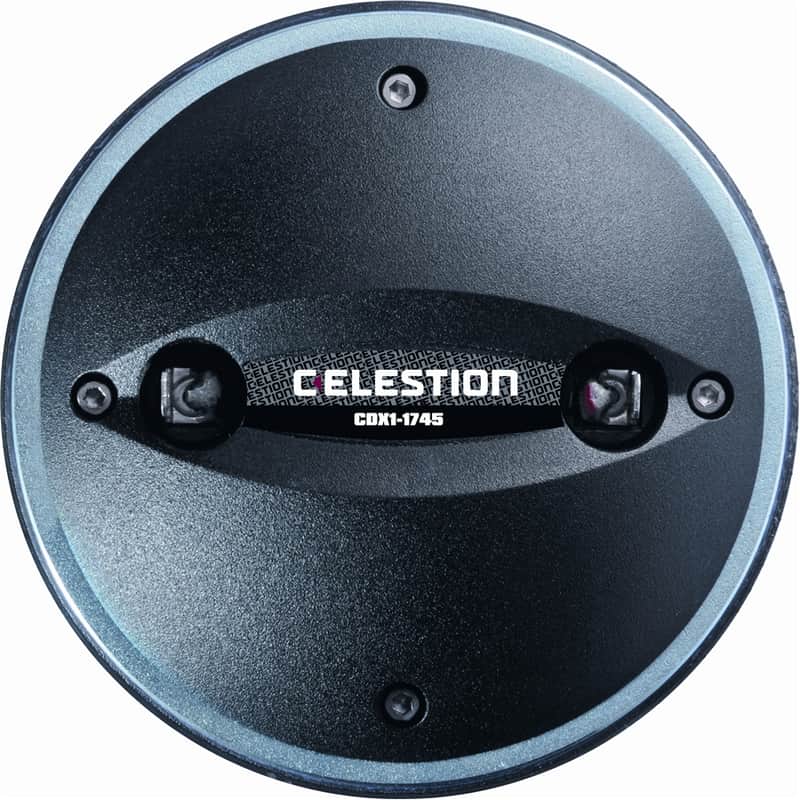

Celestion CDX1-1745 1" 40-Watt 8ohm HF Compression

Brooklyn, NY, Estados Unidos

Información sobre este anuncio

1-inch exit ferrite magnet compression driver Features Single piece PETP diaphragm and surround Sound Castle diaphragm assembly 2,200Hz recommended min. crossover freq (12dB/oct) Bolt fitting 80W Continuous power rating 110dB Sensitivity 1.75in Voice coil diameter Power rating : 40W Continuous power rating : 80W Rated impedance : 8Ω Sensitivity : 110dB Frequency range : 1200-20,000Hz Recommended min. crossover (12dB/oct) : 2200Hz Magnet type : Ferrite Voice coil diameter : 44mm / 1.75in Voice coil material : Edgewound copper clad aluminium Diaphragm material : PETP film Surround material : PETP film Additional impedances : 16Ω Power rating : Tested for two hours on plane wave tube using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Continuous power rating : Defined as 3dB greater than the AES rating. Sensitivity : Measured on axis at 1W, 1m, using typical horn, in 2π anechoic environment. Mounting Information Width : 120mm / 4.7in Depth : 56mm / 2.2in Fitting : Bolt (2/3 M6 holes on 76/57mm, 3.0/2.24in PCD) Screw version : CDX1-1746 Throat exit : 25mm / 1in Horns and repair kits T5510 : Diaphragm repair kit (8Ω) T5523 : Diaphragm repair kit (16Ω) T5359 : H1-9040P Horn T5134 : H1-7050 'No Bell' Horn

Ver anuncio completo

$99
