Stereo multi-effects unit with 24 DSP algorithms and bitcrusher - Used

• Used Eurorack module, tested and in perfect working order.
• 24 custom stereo DSP algorithms based on the FV-1 processor.
• Three parameters per effect, controllable manually and via CV.
• CV control for effect selection.
• Sampling rate control for Lo-Fi and Bitcrusher effects.
• Memory for saving effect settings.
• Fully analog Dry/Wet control.
• Ideal for reverb, delay, modulation, distortion, and sound design.

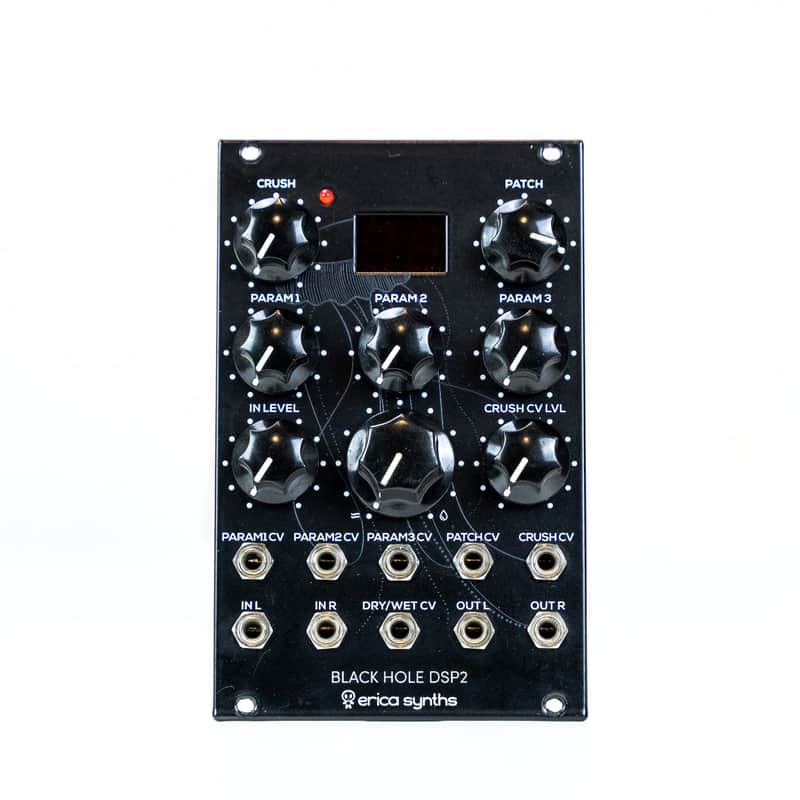

Erica Synths Black Hole DSP2 (Used) is a used Eurorack stereo multi-effects processor that features 24 DSP algorithms developed in collaboration with KODEK and Gary Worsham, creator of SpinCAD. Designed for musicians and sound designers looking to expand their sonic palette, it offers high-quality effects that integrate seamlessly into the world of modular synthesis thanks to CV control of key parameters.

Stereo DSP multi-effects processor for Eurorack systems

Black Hole DSP2 provides 24 stereo effects optimized for modular synthesizers, including reverbs, delays, chorus, flanger, phaser, pitch shifting, distortion, bitcrusher, and numerous experimental effects. Each algorithm features three dedicated parameters that can be controlled either manually or via CV, allowing for continuous sound evolution.

Full CV control and preset memoryAdvanced effect automation

In addition to the three main parameters, effects can be selected directly via CV, transforming the Black Hole DSP2 into an extremely dynamic processor during live performances or complex patches. Each configuration can be saved to internal memory and recalled instantly along with the selected effect.

Bitcrusher and sample rate control

One of the module’s distinctive features is the manual and CV control of the DSP processor’s clock frequency. By reducing the sample rate from 48 kHz, you can achieve Lo-Fi textures, bitcrusher effects, and digital distortions perfect for experimental electronic music and creative sound design.

Analog Dry/Wet and Professional Sound Quality

The fully analog Dry/Wet control allows you to precisely blend the original and processed signals, while the clipping LED makes it easy to monitor the input level. Thanks to its stereo inputs and outputs, the Black Hole DSP2 integrates seamlessly into any Eurorack system dedicated to production, live performance, and sound experimentation.

Technical Specifications

• Condition: Used
• Format: Eurorack
• 24 custom stereo DSP algorithms based on the FV-1 processor
• Stereo inputs and outputs
• 3 parameters controllable manually and via CV for each effect
• Effect selection controllable via CV
• Manual and CV control of the DSP clock frequency
• Memory for saving effect settings
• Fully analog Dry/Wet control
• Clipping LED
• Input level: -5V/+5V or 0/+10V
• Output level: -10V/+10V
• Maximum sampling rate: 48 kHz
• CV range: -5V/+5V
• Current draw: +70 mA / -56 mA
• Width: 16 HP
• Depth: 35 mm
