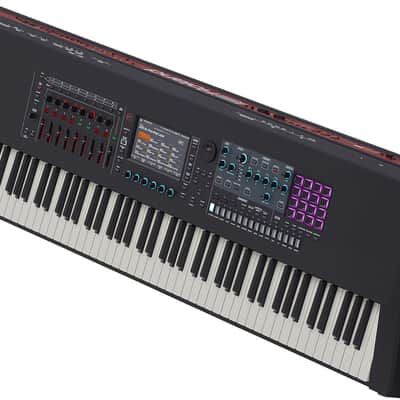

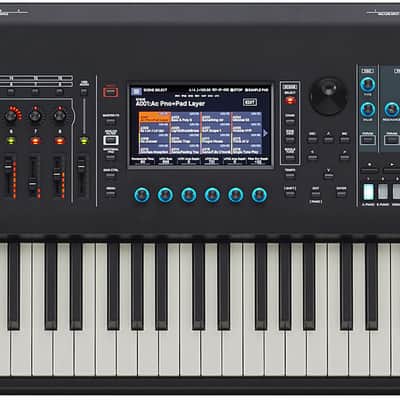

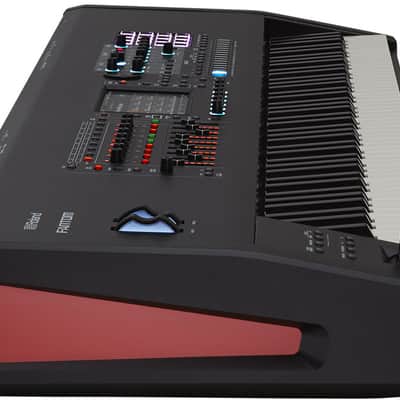

88 Keys (PHA-50 Wood and Plastic Hybrid Structure, with Escapement and Ebony/Ivory Feel, channel aftertouch)

A new kind of creative hub, made for rapid production and expressive performance. Inspiring onboard production tools and deep computer integration fuel an experience that feels intuitive, natural, and full of possibilities. The expandable sound engine delivers our best electronic and acoustic sounds, with the depth and control to combine and shape them in exciting new ways. And it’s built from premium materials, with a purposeful design, and the best 61-, 76-, and 88-note keyboards we’ve ever made.

CREATION

At every turn, FANTOM fulfills the need to create. Its smooth, rapid workflow has no confusing modes, frustrating technical limits, or trade-offs with sound quality. FANTOM’s creative process reflects how today’s musicians work, with fluid composition tools, instantly recallable creative environments, and deep computer integration.

Legendary Model Expansions at ZERO COST

for all FANTOM owners. Fantom System Update V2.1

Supernatural Acoustic Piano 2 Model Expansion at ZERO COST for all FANTOM owners via Roland Could Manager

Fantom System Update V3.0

- Sound Generator:

ZEN-Core, V-Piano Technology

- Parts: 16 Zones(Internal + External)

- Scenes: 128 Scenes x 4 Bank

- Tones: Over 3,500 Tones, Over 90 Drum kits

- Effects:

Multi-Effects: 16 systems, 90 types,

Part EQ: 16 systems,

Drum Part COMP: 6 systems,

Insertion Effect: 2 System, 90 Type,

Chorus: 8 types

Reverb: 6 types

Master Compressor

Master EQ

Mic Input Reverb: 6 types

- Analog Filter:

STEREO

Type: LPF1/LPF2/LPF3/HPF/BPF/Bypass

Drive

Amp

- Sequencer:

MIDI Tracks: 16(Internal/External)

- Group:16

- Pattern: 8 (per each Track)

- Pattern Length: 32 mesures

- Recording Method: Realtime recording, Step recording, TR-REC

- Sampler

Format: 16-bit linear, 44.1/48kHz, WAV/AIFF import supported

- Maximum Polyphony: 8

- Number of Samples: 16 Pads x 4 Banks

- Other:

Rhythm Pattern

- Arpeggiator

- Chord Memory

- Controllers:1

Pitch Bend/Modulation Lever

Assignable Switch x 2 (S1/S2)

Control Knob x 8

Slider x 8

USB Audio Slider

Wheel x 2

Function Knob x 6

Sound Modified Knob x 11

4 x 4 Pad

Display:

Graphic Type, 7", Wide VGA (800 x 480 dots), backlit LCD (Color/Touch screen)

- Connectors:

Headphones Jack: Stereo 1/4-inch phone type

MAIN OUT Jacks (L/MONO, R) (1/4-inch phone type)

MAIN OUT Jacks (L, R) (XLR type)

SUB OUT1 Jacks (L, R) (1/4-inch phone type)

SUB OUT2 Jacks (L, R) (1/4-inch phone type)

ANALOG OUTPUT Jacks(1,2)(1/4-inch phone type)

Mic/Line Input Jacks: (1,2) (1/4 inch phone type/XLR type)

2 x CV OUT, 2x GATE OUT

FOOT PEDAL JackS(HOLD, CTRL1,CTRL2,CTRL3)

MIDI connectors (IN, OUT1, OUT2/THRU)

USB MEMORY Port

USB COMPUTER Port (AUDIO/MIDI)

3 x External Device Port

External Memory: USB Flash drive (sold separately)

- Power Supply: AC 117-240V 50/60Hz

- Power Consumption: 50 W

- Accessories: Power Cord
