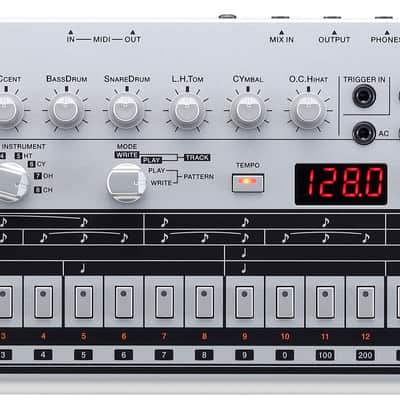

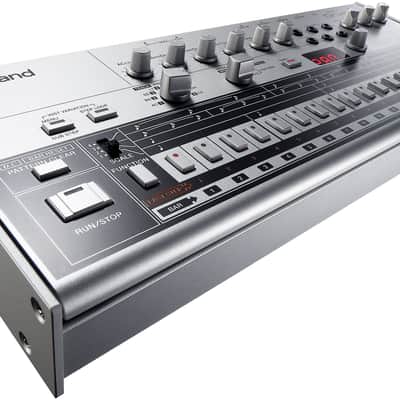

A detailed replica of the Roland TR-606 Drumatix from the 1980s, with some major modern upgrades.

The distinctive look and iconic tone of the TR-606 in the compact and portable Roland Boutique format.

The TR-06 is a detailed replica of the Roland TR-606 Drumatix from the 1980s—with some major modern upgrades. This new Roland Boutique version captures the distinctive tone and iconic look of the original while reimagining it with bold new sound-crafting potential. Users can control tuning, decay, and pan for each instrument, or crank up the internal gain for each circuit model and push it into warm overdrive or aggressive distortion. An onboard compressor adds fullness and punch, while the tempo delay creates depth and space.

Like the original, the TR-06 has a familiar and straightforward step sequencer. But now it’s been updated with advanced features like sub-steps for ratcheted parts, step-loop for instant pattern slicing, and more. With five trigger outputs and a trigger input, the TR-06 integrates nicely with modular setups. It's a high-quality USB audio interface too, and features battery operation and a built-in speaker for production on the go.

-Detailed recreation of the vintage Roland TR-606 using Analog Circuit Behavior (ACB) modeling

-Authentic sound and iconic look of the original

-Expanded sound-shaping options with tuning, decay, pan, gain, and more

-Onboard compressor, delay, and overdrive effects

-Advanced sequencer with sub-steps, probability, and step-loop

-Five trigger outputs and one trigger input for easy integration with modular and other gear

-Color-matched DK-01 case with three tilt options

-Sturdy and portable with solid construction and a metal top

-Runs on four AA batteries or USB bus power

INCLUDED:
- Accessories

Boutique Dock: DK-01 (Silver)

Owner's Manual

DK-01 Owner's Manual

Leaflet "USING THE UNIT SAFELY"

Alkaline battery (AA, LR6) x 4

- Roland TR-06: Drumatix

- User Memory: Patterns: 128 (16 patterns x 8 banks) ; Tracks: 8

- Steps: 32 steps

- Sequencer Functions: STEP LOOP, SUBSTEP, FLAM, INTRO / FILL IN, PROBABILITY, SUBSTEP PROBABILITY, MASTER PROBABILITY

- Instruments: BD: BASS DRUM* ; SD: SNARE DRUM* ; LT: LOW TOM* ; HT: HI TOM* ; CY: CYMBAL* ; OH: OPEN HI HAT ; CH: CLOSED HI HAT

Effects: Compressor

- Delay Effects: DELAY, PAN DELAY, TAPE-ECHO, REVERB, FLANGER, SIDE BAND FILTER

- Drive Effects: SATURATOR, BIT CRUSHER, DISTORTION, LPF/HPF

- Controllers: VOLUME knob, RUN/STOP button, PATTERN CLEAR button, MENU/SUB STEP button, STEP LOOP button, FUNCTION button, TEMPO button, STEP buttons (1-16), PATTERN GROUP button and indicators, TAP/STEP RESET button, SCALE selector switch, INSTRUMENT selector knob, MODE selector knob, VALUE knob, Instrument Level knobs (AC, BD, SD, LT/HT, CY, OH/CH), Effect knobs (DRIVE, TIME, DEPTH)

- Indicators: 7 segments, 4 characters (LED)

TRIGGER IN jack: mono miniature phone type

- TRIGGER OUT jack x 5 (AC, BD, SD, LT, HT): mono miniature phone type

- PHONES jack: stereo miniature phone type

- OUTPUT jack: stereo miniature phone type

- MIX IN jack: stereo miniature phone type

- MIDI (IN, OUT) connectors

- USB port: Micro-B type (Audio, MIDI)

- Power Supply: Rechargeable Ni-MH battery (AA, HR6) x 4, Alkaline battery (AA, LR6) x 4, USB bus power

- Current Draw: 500 mA (USB bus power)

Expected battery life under continuous use

- rechargeable Ni-MH battery: Approx. 5 hours (*This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use)
