Brantford, Canada
About this listing

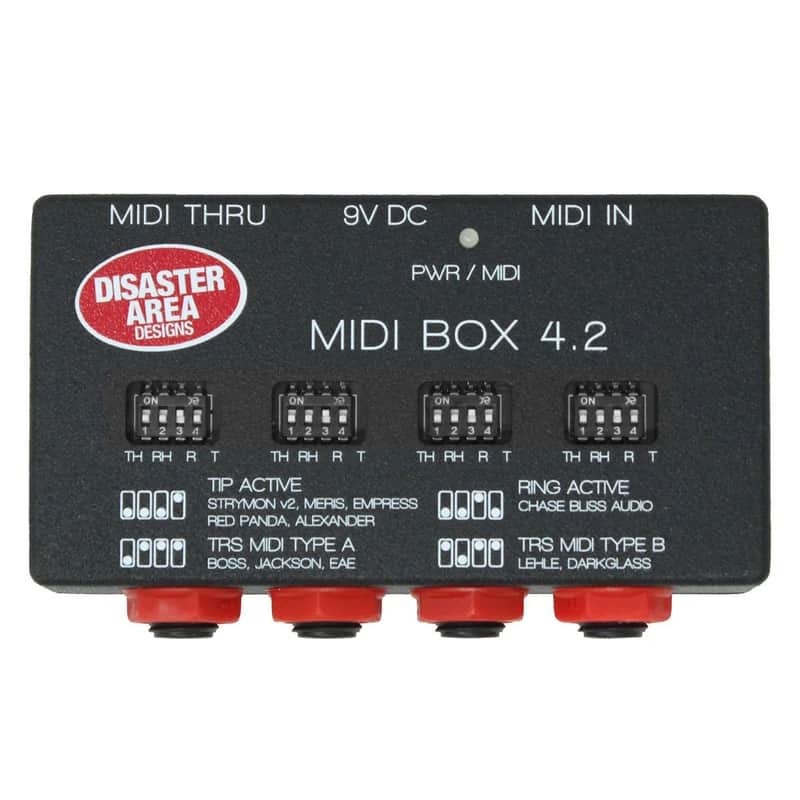

Updated and more powerful than ever, the MIDI Box 4.2 converts standard 5-pin (DIN) MIDI communications to a variety of 1/4″ formats.Four independent control ports interface to your devices, configurable on the fly without a computer or editor. Just flip the switches to the correct mode and play!Each control port may be set to one of several output modes, selectable using the DIP switches on the face of the MIDI Box 4.2Bundle 1/4”-1/4” TRS cables or 1/4”-1/8” TRS cables to connect your gear!NOTE: This device does not perform channel switching or contact closure for non-MIDI devices. It cannot change channels on your amplifier with 1/4” switching jacks.______________________Four independent control ports interface to your devices, and new user-accessible configuration switches make setup easier than ever.Each control port may be set to one of four output modes, selectable using the DIP switches on the face of the MIDI Box 4.2Tip Active:. Suits Strymon, Alexander, Meris, Empress, Bondi, and other devices using voltage mode on the jack tipRing Active: Suits Chase Bliss Audio and other devices using voltage mode on the jack ringTRS MIDI TYPE A: Sets the tip active and pulls the ring terminal high, for use with Boss, EAE, Jackson, and other devices that conform to the MIDI TRS specification. Also works with our MJ-5P MultiJack to MIDI cable to provide additional standard MIDI outputs from the MIDI Box 4.2TRS MIDI TYPE B: Alternate wiring option, most commonly used by European makers. Sends signal on the jack ring, pulls the jack tip high. Suits Darkglass, Arturia, 1010 Music, many modular synths.Tip and Ring Active: Provides separate outputs on tip and ring of the control port, enabling two MIDI outputs using our TRS Insert Cable Not shown on enclosure, set TH & RH OFF, R & T ON.Power: Requires 9-12v DC input, 50mA maximum.Status LED: Lights blue when powered, blinks red when MIDI data is received. Constant high-speed MIDI data such as MIDI Clock may cause the LED to remain violet.MIDI THRU: Dedicated hardware MIDI Thru, repeats any MIDI data received to send to your other MIDI devices. You can chain multiple MIDI Box 4 units by linking the MIDI THRU from the first box to the MIDI IN of the next and so on.CompatibilityPlease note that device support also requires a compatible MIDI controller. The MIDIBox is a data converter only, and won’t magically make your controller work with these devices. If you’re not sure about controller support, contact your controller manufacturer!Chase Bliss Audio: All current pedals. Connect with TRS cable, set port to RING ACTIVE.AyahuascaBliss FactoryBlooperBrothersCondorDark WorldGeneration Loss, Generation Loss mkkIIGravitasHabitMOOD, MOOD mkIIReverse Mode CSpectre (all versions)ThermaeTonal Recall (blue and RKM)Warped Vinyl Mk1 (supports MIDI clock only)Warped Vinyl Mk2 and HiFiWombtone Mk1 (supports MIDI clock only)Wombtone Mk2Meris: All current pedals using 1/4” MIDI. Connect with mono / TS cable. Set port to TIP ACTIVE.EnzoHedraMercury 7Ottobit JrPolymoonBoss: All 200-series pedals with 1/8″ MIDI jacks. Use TRS / stereo cable. Set port to TRS MIDI TYPE A.DD-200OD-200EQ-200MD-200All other pedals with 1/8” MIDI or SYNC IN jacks including SL-2, SDE-2, RE-2, others.Jackson Audio: All MIDI-compatible pedals. Use TRS / stereo cable. Set port to TRS MIDI TYPE A.Golden BoyBroken Arrow v2Bloom v2AsabiAlexander Pedals: Connect with mono / TS cable. Set port to TIP ACTIVE.Empress Effects: Connect with mono / TS cable. Set port to TIP ACTIVESwindler Effects: All MIDI-compatible pedals. Use TRS / stereo cable. Set port to TRS MIDI TYPE A.Cooper FX: All MIDI-compatible pedals. Use TRS / stereo cable. Set port to TRS MIDI TYPE A.Neunaber Effects: MIDI-compatible pedals with 1/8″ TRS jacks. Use TRS / stereo cable. Set port to TRS MIDI TYPE A.Bondi Effects: Connect with mono / TS cable. Set port to TIP ACTIVE.Darkglass: All pedals using 1/8” for MIDI input, set port to TRS TYPE BStrymon: All V2 pedals using 1/4” for MIDI input, set port to TIP ACTIVEALL NEO SERIES PEDALS (Colour Theory, Defender, F.13 Neo, History Lesson Vol.3, Marshmallow, Quadrant, Radical Delay DX, Sky 5000, Space Race, Sugarcube, Super Neo-Matic, Superball, Syntax Error, Wavelength)ALL LEAP SERIES PEDALS (Space Force, Rewind, Luminous, Dynaflanger 213)ALL VENTURE SERIES PEDALS (Syntax Error 2, Faver Pitch)Forget-Me-Not, We Are Ghosts NowEchosystemPhaserTremolo 2ReverbZOIAThe Gulf v2Red Mountain v2Outward v2ArcadesNeuronAll pedals using 1/8” MIDI inputArt Van DelayEl Cap V2BlueSky V2ZelzahCloudburstEC-1Flint V2NOTE: V1 pedals don’t support MIDI!SpecificationsPower: 9V DC, 40mA or greater, center negative (not included) OR USB 5V, 100mAPower / Status LEDSize: 4.4 in x 2.38 in x 1.06 in (112 mm x 60 mm x 27 mm)5-pin MIDI input and thru ports4 TRS MIDI output ports
PriceC$102.51
+ C$23.43 Shipping
14-Day Return Policy
Enjoy peace of mind with your new gear
