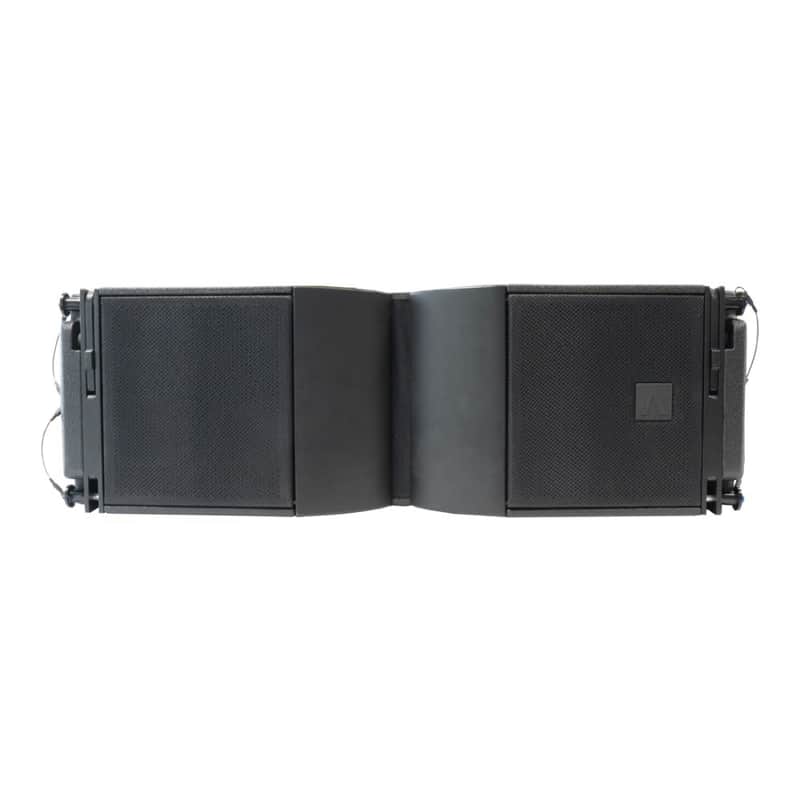

Avante Audio ATL328 3-Way Active Line Array Speaker - 2x8in

The Avante Tour series ATL328 is a professional 3-way active small-format line array engineered for medium to large events and pairs nicely with the Avante ATS218 subwoofer.

Specifications

TECHNICAL DATA

• Speaker Type: 3-Way Active, 2x8" Line Array Module, Milan certified

ACOUSTICAL DATA

• Frequency Response: 70 - 20,000 Hz
• Max SPL One Unit: 127 dB
• MF/HF: Coaxial 4" (MF) + 2.55" (HF) - Neodymium on custom waveguide
• LF: 2 x 8” (2.5” voicecoil) - Neodymium
• Crossover frequencies: 600 Hz/3.5 kHz
• Horizontal Directivity: 110°
• Vertical Directivity: Depends on array size and configuration

AMPLIFIER:

• Channels: 3 channels, 1 LF, 1 MF, 1 HF
• Power: 600-Watt RMS / 1200-Watt Program / 1800-Watt Peak
• Cooling: Convection, Internal fan
• Power Supply: Auto switching 100V-240V, 50-60Hz
• Protection: Thermal, DC Offset, Output Short

PROCESSOR:

• DSP: 64-bit multimode with Milan
• Sample Rate: 96 kHz
• Limiter: Multi-band compressor, Peak Limiter
• Processing (filters): FIR Linear Phase and 10-band IIR

INPUT:

• Signal In/Out (analog): 3-pin XLR
• Power Socket: IP65 Locking Power In/Out
• Network: Locking RJ45 In/Out for control and Milan
• Controls: 1 x Input Attenuation (-15dB - +6dB); 1 x LF Coupling (8 presets); 1 x HF Compensation (8 presets); 1 x System Test and Reset Button
• Special Features: Frontal LED Identification System / Inclinometer

CONSTRUCTION:

• Housing: Multiplex plywood - Polyurea painting
• Housing Design: Trapezoidal
• Handles: 4 x handles (1 on each side, 2 on back)
• Rain Cover: Included, fixed
• Rigging Points: 3 points rigging hardware
• Dimensions (LxWXH): 30" x 18.3" x 9" / 760 x 465 x 230 mm
• Weight: 64 lbs. / 28.6 kg.
