Avante Audio IMPERIO-PRO Active Line Array Speaker Module (Black)

The black Imperio Pro IMP205 440W Active Line Array Speaker Module by Avante is an expandable portable PA with a two-way active sealed speaker, designed with flexible DSP and physical configurations for a variety of situations, ground-stacked or flown. Designed for easy transportation and fast setup, this updated Pro version of the Imperio deploys the same compact cabinet design but offers increased output, enhanced audio quality, and additional improvements. Featuring a powerful eight-speaker (six tweeters and two woofers) design with 440W RMS (1700W peak) Class-D amplification, the Imperio Pro is a flexible, modular speaker capable of serving small or large venues through the addition of further Imperio Pro modules.

A 32-bit DSP processor provides eight different audience-size / venue settings for multiple setups, adjusting EQ and signal output accordingly, while a solid ABS enclosure and 1mm steel grille provide rugged durability during setup and transport. The Imperio Pro IMP205 is perfect for small events while remaining easily expandable and customizable for larger stages.

Powerful and Flexible

The Imperio Pro features a high-powered 440W (1700W max) Class-D amplification system with eight speakers (six 1.75" tweeters, two 5" low-mid transducers) and a sealed enclosure for enhanced bass response. Neodymium woofer magnets and an IDVAT (Inverted Dome Vertical Array Technology) tweeter design provide quality sound reproduction and a wide 100 Hz to 20 kHz frequency response.

8 Selectable DSP Setups

8-position rotary switch selects between 8 equalization curves and DSP presets to allow for maximum flexibility, adjusting output signal and EQ for a variety of speaker setups and crowd types.

Integrated Rigging

The lightweight (12.5 lb) cabinet features an integrated rigging design that ensures great modularity and customization of setups. Stack the speakers vertically in multiple configurations with the addition of up to two Avante IMP205 Subwoofers.

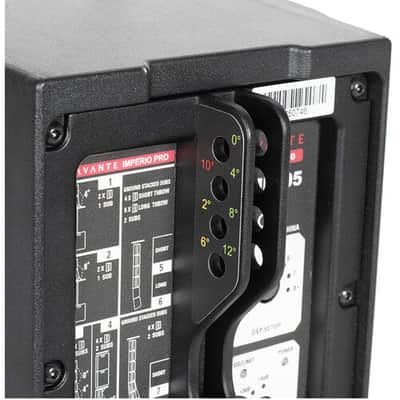

Adjustable Throw Angle

When mounting or stacking with other Imperio modules, the throw angle can be adjusted over 7 splay angles from 0 to 12°, allowing great control over crowd coverage.

Features

• Versatile and Easy-to-Use PA Speaker
• 440W RMS Class-D Amplifier Module
• Switching Power Design
• LED Power/Signal/Clip Indicator
• Selectable 32-Bit DSP Configurations

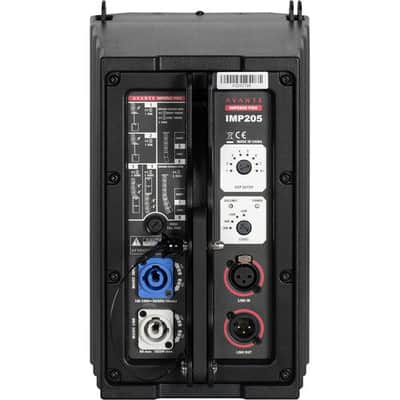

• 3-Pin XLR & powerCON Inputs and Outputs
• Selectable Input Sensitivity Dial
• Two 5" Neodymium Low/Mid Drivers
• Six 1.75" IDVAT HF Drivers
• 100 Hz to 20 kHz Frequency Response

Specifications

Configuration Active 2-Way Enclosure Type Sealed Line Array Total Power Capacity 1700 W Peak HF Driver 6 x 1.75" / 4.45 cm Dome Tweeter MF Driver No LF Driver 2x 5" / 12.7 cm Woofer Wireless Connectivity No Color Black Enclosure Type Sealed Line Array Total Power Capacity 1700 W Peak Amplifier Power Rating HF/LF:
1 x 440 W RMS Amplifier Class HF/LF:
Class-D Drivers HF Driver 6 x 1.75" / 4.45 cm Dome Tweeter MF Driver No LF Driver 2x 5" / 12.7 cm Woofer Magnet LF:
Neodymium Performance Frequency Response 100 Hz to 20 kHz Maximum SPL 128 dB Coverage Angle 100° H x 12° V Input Sensitivity +6 dB to -3 dB Protections
