10in Portable Powered Column Loudspeaker - 1000W - Black

The black Electro-Voice EVOLVE 30M Portable Column Sound System combines a powered subwoofer with a speaker array to create a lightweight, active PA setup designed to provide high-powered, wide-range frequency reproduction for sound engineers, presenters, and DJs in clubs, parties, concert venues, and live stage events.

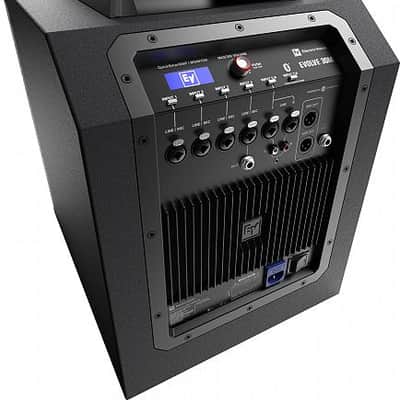

The integrated 8-channel mixer allows you and your band-mates to plug in 4 mic/line sources, 2 additional line sources, and a dedicated stereo Bluetooth input for streaming backing tracks or between-set incidental music. Additionally, channel 4 also includes a 1/4" Hi-Z input for guitar or bass without the need for a separate DI. The system consists of a 1000W internal amplifier which delivers 500W to the 10" subwoofer and 500W to the six 2.8" neodymium high-frequency drivers, which combine for a frequency response of 51 Hz to 20 kHz with a max SPL of 123 dB.

The mixer is app controlled and provides a 3-band EQ, a single-knob compressor, FX1 and FX2 sends, post fader Aux send, pan/balance control for stereo channels. Phantom power is available on channels 1-4, for integrated high-quality condenser microphones into your setup. There are input presets with common EQ settings to make setup fast and easy. Additionally, there is a 7-band graphic EQ on both the main output and Aux output, for feedback control and fine-tuning your overall sound. The two effects engines offer 30 professional grade FX to choose from. Each effect can be customized with a variety of types including reverb, delay, chorus, flanger, and echo. The Quicksmart app also provides control over multiple systems and can create groups for easy deployment and control. The EV Evolve 30M includes a two-piece speaker pole, a power cord, and a carrying case for the poles and array.

Features

• Professional EV sound quality coupled with a complete feature set
• Refined industrial design, professional-grade EV-engineered components and premium build quality
• 8-channel mixer developed by EV’s sibling brand Dynacord
• Finesse your sound with musician-friendly features
• Next-generation Electro-Voice QuickSmart mobile app & EV’s industry-leading QuickSmart DSP
• 4 professional-grade mic preamps with phantom power
• Input presets with 3-Band EQ per channel
• One-knob compression
• 7-band graphic EQ on Main output and Aux output
• 2 FX sends with 30 different FX included
• Stereo Bluetooth streaming from compatible devices
• Includes carrying case for array and two-piece speaker pole

Specifications

Portable PA System

• Speaker Configuration: 2-Way
• Number of Input Channels: 10

Speakers

• HF Driver: .8" / 71.12 mm Compression Driver
• LF Driver: " / 254 mm
• Magnet: HF Driver: Neodymium

Signal Processing

• Crossover: 200 Hz
• EQ: -Band Graphic 1x HF Shelf 1x MF Notch/Peak 1x LF Shelf
• Filters: No
• Dynamic Processing: Compression

Performance

• Frequency Response: 51 Hz to 20 kHz ±3 dB (Half-Space)
• Frequency Range: 45 Hz to 20 kHz -10 dB (Half-Space)
• Maximum SPL: 123 dB SPL
• Coverage Angle: 120° H x 40° V (Main)

Connectivity

• Audio I/O: 4x Combo XLR-1/4" TRS Female Balanced/Unbalanced Mic/Line Input /4" TS Female Unbalanced Hi-Z/Inst Input 2x Combo XLR-1/4" TRS Female Balanced Line Input 1x Stereo RCA Coaxial Female Unbalanced Line Input /8" / 3.5 mm TRS Female Unbalanced Line Input /4" TS Female Footswitch Input 1x XLR 3-Pin Female Balanced Mix Output 1x XLR 3-Pin Female Balanced Aux Output
• Wireless Connectivity: Bluetooth

Power

• AC Input Power: Universal: 100 to 240 VAC, 50 / 60 Hz
• Current Consumption: 0.6 to 1.5 A
• AC Power I/O: 1x IEC Input

Physical

• Mounting: No
• Construction Material: Aluminum, Composite, Plywood
• Environmental Protection: No
• Dimensions: Base: 17.." / 447...8 mm
• Weight: 44 lb / 19.96 kg

Packaging Info

• Package Weight: 54 lb
• Box Dimensions (LxWxH): ..5"
