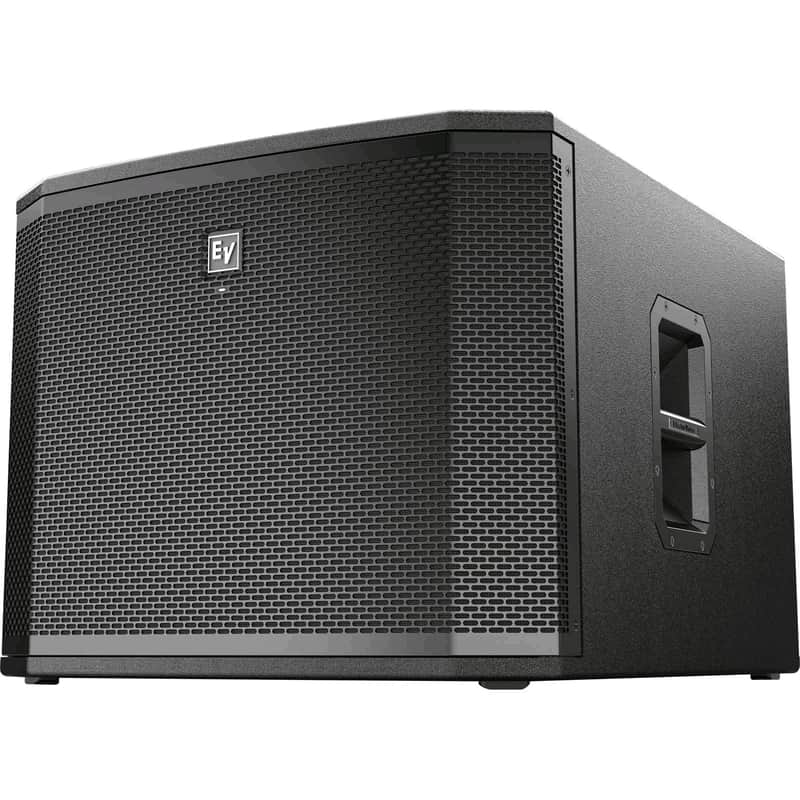

15in Powered Subwoofer - 1800W - Black

Inside each low-profile, tour-grade wood enclosure are a range of unique new features that set ETX Powered Loudspeakers apart, combining intelligent technology and innovative industrial design for spectacular results across all applications. EV-engineered high-efficiency transducers and high-powered Class-D amplifiers, Signal Synchronized Transducers (SST) waveguide design and smart FIR-Drive DSP all work together to provide peerless EV sound quality and precise coverage at the highest SPLs.

Features

• 15-inch DVX woofer for maximum punch
• 1800 W Class-D power amplifier with integrated FIR-Drive DSP
• 134 dB peak SPL
• Special DSP preset for true cardioid performance across the full operating bandwidth
• Combo pole cup (insert and threaded) for use with the ETX Powered Loudspeaker full range models
• Removable casters

Specifications

• Frequency Response (-3 dB): 37 Hz - 150 Hz¹
• Frequency Range (-10 dB): 32 Hz - 180 Hz¹
• Maximum SPL: 134 dB peak²

• Power Rating: 1800 W
• LF Transducer: DVX3159A 380 mm (15 in)
• Low Pass Frequency: Adjustable 80 Hz, 100 Hz, 120 Hz, 150 Hz
• Connectors: (2) XLR/TRS Combo Jack and (2) XLR link Output
• Enclosure: 18mm Plywood with EVCoat
• Grille: 16AWG steel with powdercoat
• Dimensions (H x W x D): 471 mm x 576 mm x 825 mm (19 in x 23 in x 32 in)
• Dimensions (H x W x D): without casters,471 mm x 576 mm x 692 mm (19 in x 23 in x 27 in)
• Net Weight: 41.7 kg (91.9 lb)
• Shipping Weight: 46.8 kg (103.2 lb)
• Power Consumption: 100 - 240 V~, 50 - 60 Hz, 1.6 - 0.8 A³

¹ Half space measurement using the music DSP preset and 150 Hz low pass.
² Maximum SPL is measured at 1 m using broadband pink noise at maximum amplifier output.
³ Current rating is 1/8 power.
