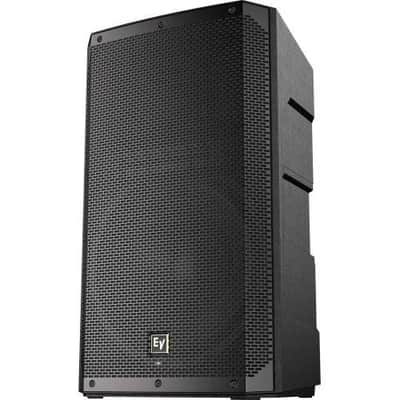

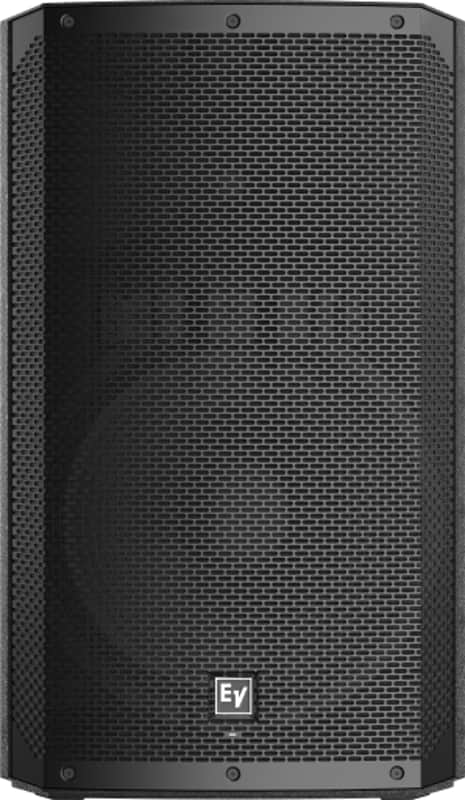

15in 2-Way Powered Loudspeaker - 1200W- Black

ELX200-15P features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP, and delivers up to 132 dB SPL utilizing transducers designed and engineered by EV (15-inch EVS-15M woofer coupled with a DH-1C 1-inch titanium compression driver). Powered full-range models allow easy setup via four presets (Music, Live, Speech, Club), sub/top system-match crossovers, three-band EQ, five user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure.

The ELX200 series offers professional Electro-Voice audio quality, precision control, and robust, EV-engineered components in an ultra-lightweight package a truly potent blend of performance and portability.

Wireless control and monitoring via the new Bluetooth® QuickSmartMobile app* Control your sound while in front of your system. Quickly configure up to six ELX200 loudspeakers simultaneously, and receive immediate notification during critical performance conditions.

• Perfect for both portable and installed applications
• Lightweight package with heavyweight performance
• QuickSmartDSP provides best-in-class processing via EV’s signature single-knob user interface with LCD
• Electro-Voice-patented SST (Signal Synchronized Transducer) waveguide design combines a more compact footprint with enhanced acoustic performance

Speaker Dimensions (18")

• Height: 19.70"
• Width: 16.80"
• Depth: 15.50"
• Weight: 41.70 lbs

• Available Color: Black
• Connector Type: (1) Stereo RCA Input, (2) XLR/TRS combo jack, and (1) XLR
• Coverage (Nominal -6 dB) H: 90 °
• Coverage (Nominal -6 dB) V: 60 °
• Crossover Frequency: 1600 Hz
• Depth: 384 mm
• Enclosure Material: Polypropylene
• Family: ELX200
• Frequency Range (-10 dB): 48 Hz, 19 kHz
• Frequency Response (-3 dB): 55 Hz, 16 kHz Hz
• Grill: 18 AWG steel with powdercoat
• Height: 710 mm
• HF Transducer: DH-1C 1-inch titanium compression driver
• LF Transducer: EVS-15M 381 mm (15 in)
• Max. SPL/1m (calc): 132 dB
• Power Consumption: 100 - 240 V~, 50 - 60 Hz, 1.8A
• Power Rating: 1200 W
• Powered or Passive: Powered
• Shipping Weight: 21.8 kg
• Speaker Type: Full-Range
• Suspension: (3) M10 suspension points
• Weight Net: 18.9 kg
• Width: 423 mm
• Woofer Size: 15 inch
