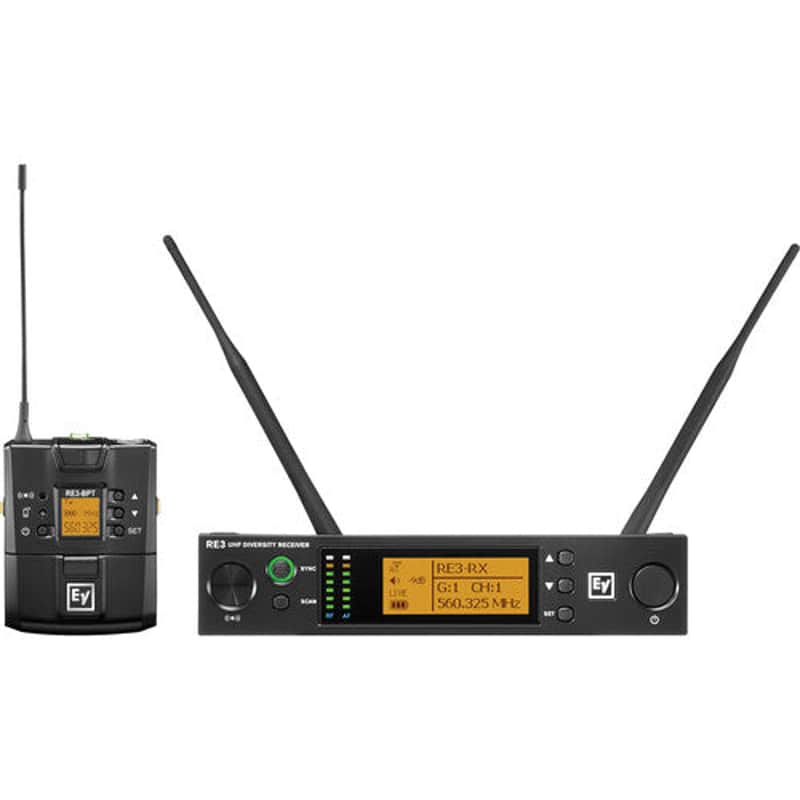

Electro-Voice RE3-BPKRSB-6M Wireless Bodypack System for RSB-2 - 653-663MHz

Achieve solid performance and dependability with the Electro-Voice RE3-BPKRSB Bodypack Wireless Microphone System. Included are a rackmountable diversity receiver and a bodypack transmitter modified to work exclusively with the RSB-2 Referee Switch Box. Serving as an ideal referee foundation set, it can be completed when coupled with any Electro-Voice lavalier or head-worn microphone and the SB-2 referee switch (all available separately). Lightweight, compact, and featuring a robust metal housing, the transmitter is easily worn and concealed, making it ideal for the rigorous use expected during sporting-event officiating.

RE3-RX Diversity Wireless Receiver

The RE3-RX is a diversity wireless receiver featuring auto frequency scanning, wireless synchronization to transmitter, balanced XLR output, and unbalanced 1/4" TS output.

The RE3-RX is rackmountable, and the 1/2 space diversity receiver is designed to function as the control center for your wireless setup. Using ultrasonic sync functions, the receiver offers control settings that synchronize to a mated transmitter. Diversity reception technology utilizes two different antennas to minimizes the chance of signal dropouts. The antennas switch moment by moment based on signal strength and stability, which insures solid performance.

Additionally, the easy-to-read LCD display provides vivid viewing of all menus and operating parameters.

RE3-BPTRSB Wireless Bodypack Transmitter for RSB-2 Referee Switch Box

The RE3-BPTRSB bodypack transmitter is specially wired for use with the RSB-2 Referee Switch Box only

Operates on 2 AA alkaline or rechargeable NiMH batteries for up to 8 hours.

The ultrasonic sync function makes for a simple system setup by syncing the transmitter to the receiver frequency tuning and other functional data.

The selectable 10/20mW output power assists in overcoming the challenges of both long or short transmission ranges.

The 10 MHz tuning bandwidth provides 400 frequency tuning options helping to avoid various sources of possible interference.

The unique magnetic sliding latch and lock mechanism keeps the battery door closed securely and makes opening to access the batteries effortless.

Recharging contacts provide for functional use with the optional BC2 charging station allowing the NiMH rechargeable batteries within two bodypack transmitters to be charged without removal.

Features

• For Use with RSB-2 Referee Switch Only
• Lightweight Metal Bodypack Transmitter
• Rackmountable Diversity Receiver
• 400 Auto-Scan Frequencies
• Selectable 10/20mW Transmitter RF Power
• XLR Balanced and 1/4" Unbalanced Outputs
• Easy-to-Read LCD display
• 8-Hour AA Batteries

Specifications

System Wireless Technology Analog UHF Diversity Yes RF Frequency Band 653 to 663 MHz Number of RF Channel Frequencies 400 Max Operating Range 328.1' / 100 m (Line of Sight) Max Transmitters per Band 2 Encryption No Built-In Recorder No Mobile App Compatible No Receiver Receiver Type 1x Tabletop/Rack-Mountable Mounting Options Rackmount (with Included Hardware, 1 U Half-Rack) Antenna 2x Removable BNC 1/2 Wave External (Rear-Mount) Number of Audio Channels 1 Audio I/O 1x XLR 3-Pin Balanced Output
1x 1/4" TS Unbalanced Output Network I/O No USB/Lightning Connectivity No Frequency Response 63 Hz to 16 kHz Display Backlit LCD Power Requirements AC/DC Power Adapter Transmitters Included Transmitters 1x Bodypack RF Output Power 20 / 10 mW Antenna Fixed External Input Level Microphone Audio I/O 1x TA4M/Mini-XLR 4-Pin Male Input Bias/Plug-In & Phantom Power Bias/Plug-In Power is Unspecified by Manufacturer
No Phantom Support USB I/O No Muting Mute Switch Auto-Level/Gain No Frequency Response 63 Hz to 16 kHz Sync Method Proprietary Display Backlit LCD Microphones Microphone Type No Microphone Included Power Transmitter Battery Type 2x AA (Included) or
2x Rechargeable (Not Included) Transmitter Battery Life 8 Hours AC/DC Power Adapter Included Input Power 12 to 15 VDC at 500 mA Physical Environmental Resistance No Housing Metal Dimensions Receiver:
8.3 x 1.7 x 6.1" / 21 x 4.4 x 15.5 cm
Transmitter:
2.5 x 3.2 x 1" / 6.4 x 8.1 x 2.5 cm Weight Receiver:
Not Specified
Transmitter:
6.1 oz / 173 g
